PE01-15-210 Radiator Fan for MAZDA CX5
Component: Radiator Fan Assembly
YoonShan Reference: 6106-046
OE Number: PE01-15-210
Reference Numbers:
PE01-15-140
PE01-15-150
PE02-15-140
Vehicle Application: MAZDA CX5
Configuration: Supplied in the photographed product configuration
Selection Features: OE-based procurement supported by dimensional and installation-layout checks

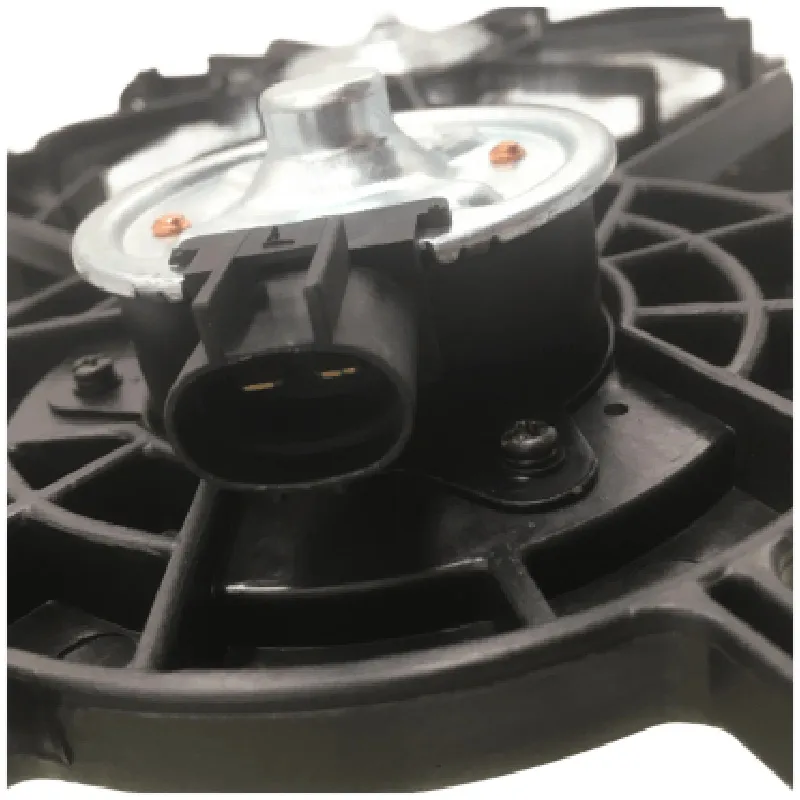

Pre-Shipment Check: Connector, mounting layout and fan-wheel movement checked before packing
MOQ: From 5 pieces
Packaging: Neutral or customized packaging available
Typical Delivery: 30–45 days, subject to quantity and destination
Fitment Check: Confirm whether the order requires a complete fan-and-shroud assembly or another configuration.
PE01-15-210 Vehicle Cooling Fan Assembly
This vehicle cooling fan, referenced by PE01-15-210, supports MAZDA CX5 replacement programs where connector, shroud and mounting geometry are confirmed.
The component forms one part of the cooling control chain together with sensors, relays, wiring, modules, coolant and the radiator.
Application Data
- Assembly: Electric radiator fan assembly
- Key OE number: PE01-15-210
- Related references: PE01-15-140, PE01-15-150, PE02-15-140
- Vehicle reference: MAZDA CX5
- Supplier item number: 6106-046

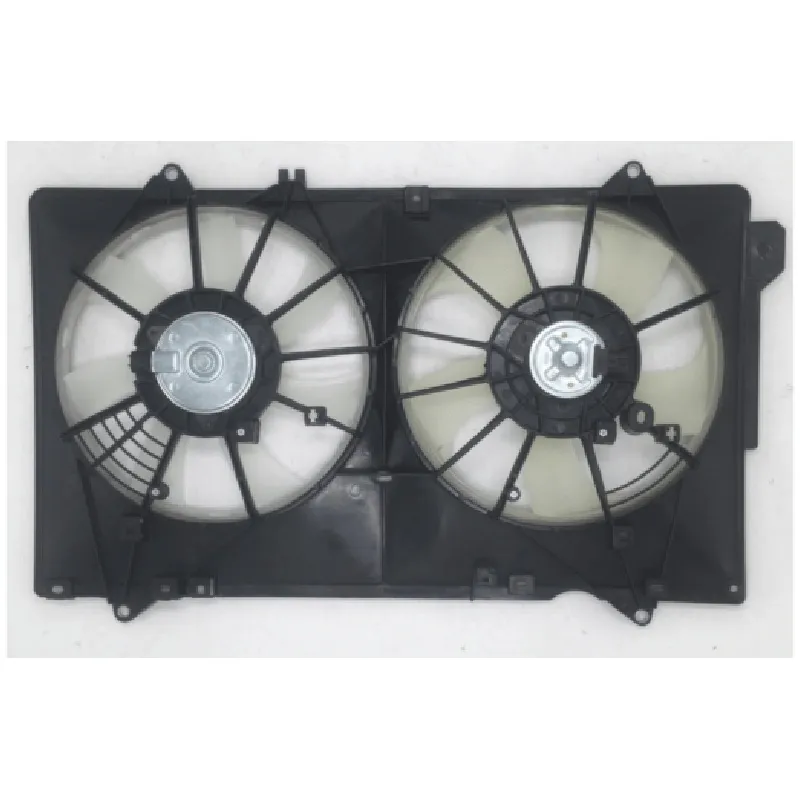

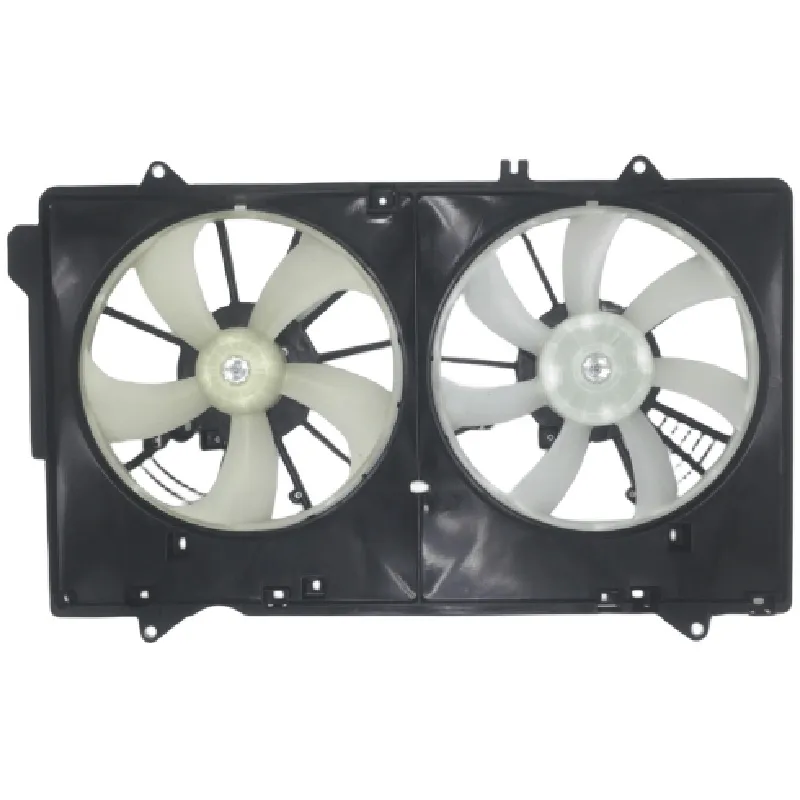

- Delivery form: Match the product photographs supplied on this page
Operating Purpose
Overheating at road speed can have causes beyond the fan; workshop diagnosis should consider the radiator, coolant flow and broader cooling circuit.
Use a suitable scan tool or approved test method where the manufacturer provides command and temperature data.
Dispatch and Installation Review
Pre-shipment inspection focuses on the electrical connection, fan-wheel movement, exterior frame condition and consistency with the listed assembly.
Installation should be completed by a qualified technician after the engine and coolant system have cooled and the battery has been isolated.
Product Technical Specifications
| Product type | Radiator Fan Assembly |
|---|---|
| Primary OE reference | PE01-15-210 |
| Cross-reference numbers | PE01-15-140 PE01-15-150 PE02-15-140 |
| Internal item code | 6106-046 |
| Vehicle brand | MAZDA |
| Vehicle model | CX5 |
| Model year | Confirm by vehicle application |
| Installation position | Radiator / front cooling-module area |
| Product function | Provides forced airflow through the radiator area to support heat exchange at low vehicle speed |
Match the Removed Assembly
Before ordering, check whether the required item is the complete fan-and-shroud assembly shown or a different motor, blade or frame configuration.
For mixed fleets, identify each vehicle version separately instead of assuming one fan fits every year.
International Supply Options
For repeat purchasing, buyers can reference PE01-15-210 and YoonShan product number 6106-046 in the enquiry.
International delivery support is available, while freight method and transit time depend on the consignee location.
Technical Buyer Questions
How long does delivery normally take?
Plan approximately 30–45 days, while the quotation will state the current production and dispatch schedule.
Can packaging be customized?
Yes. Share branding, artwork and volume requirements so packing feasibility can be reviewed.
Is this a universal radiator fan?
It should not be treated as universal because the plug, dimensions and mounting layout are application dependent.
Can a model name alone confirm compatibility?
No. One model can use different cooling packages, so OE number, engine or production details and the original assembly should also be checked.
Request a Quote: Contact YoonShan with the OE reference, application and delivery country to confirm the correct fan.
