HG9T-15K867-KC Front Bumper Radar Sensor Harness for 2017 Ford Mondeo
Primary OE reference: HG9T-15K867-KC
Cross-reference 1: HG9T-15K867-KC
Product type: Front Bumper Parking Sensor Wiring Harness
Applicable vehicle: 2017 FORD Mondeo
Installation position: Inside the front bumper cover
Brand: FORD
Model: Mondeo
Vehicle year: 2017

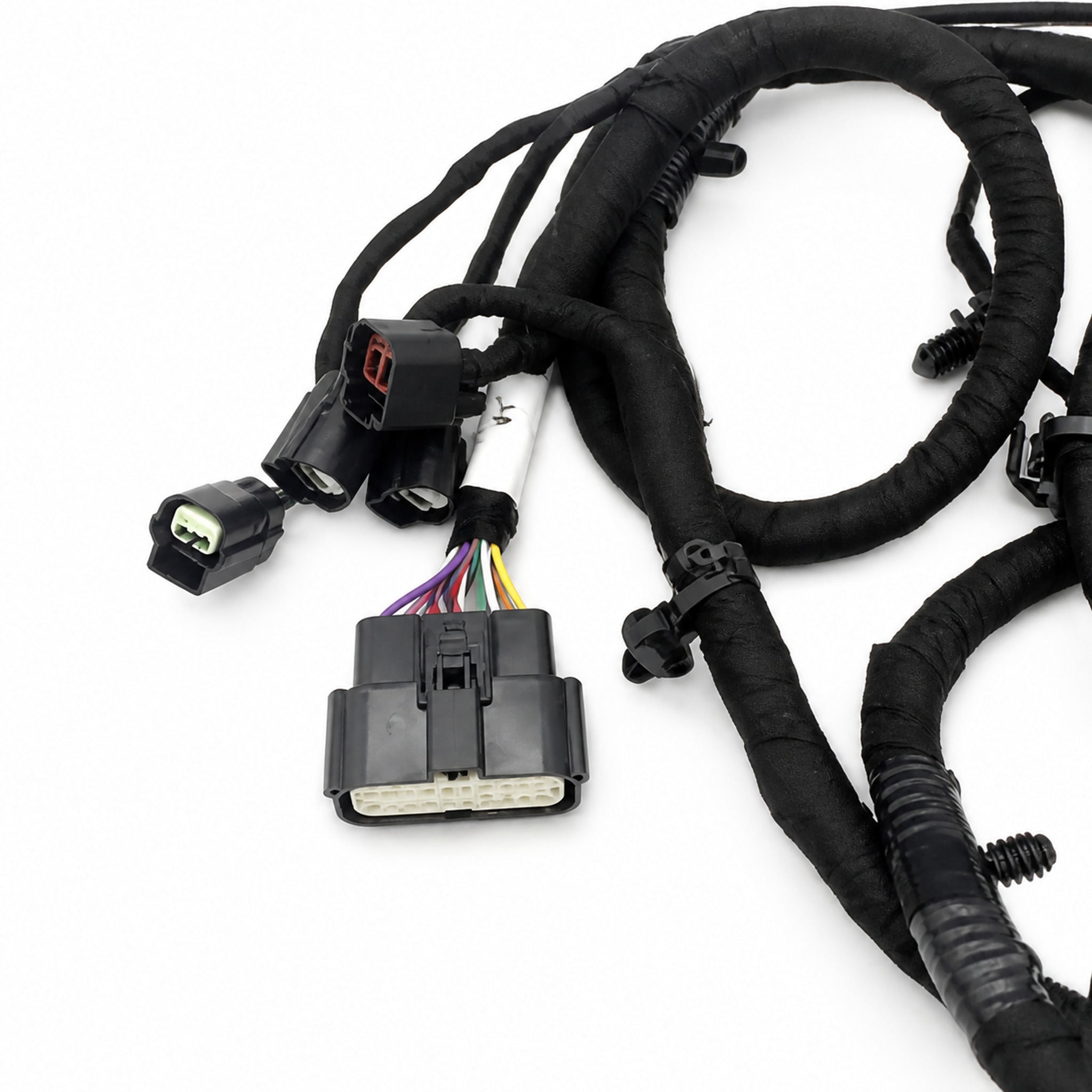

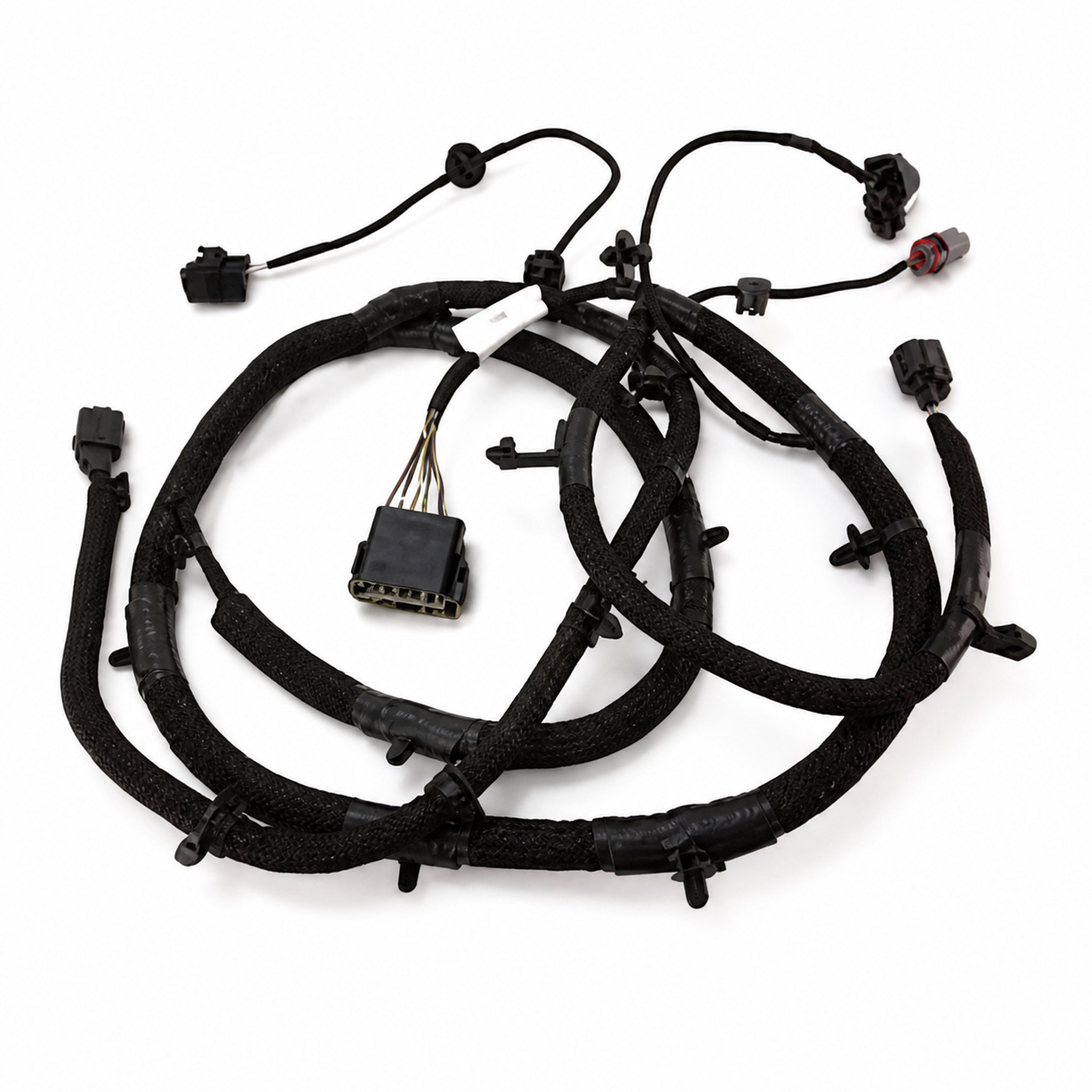

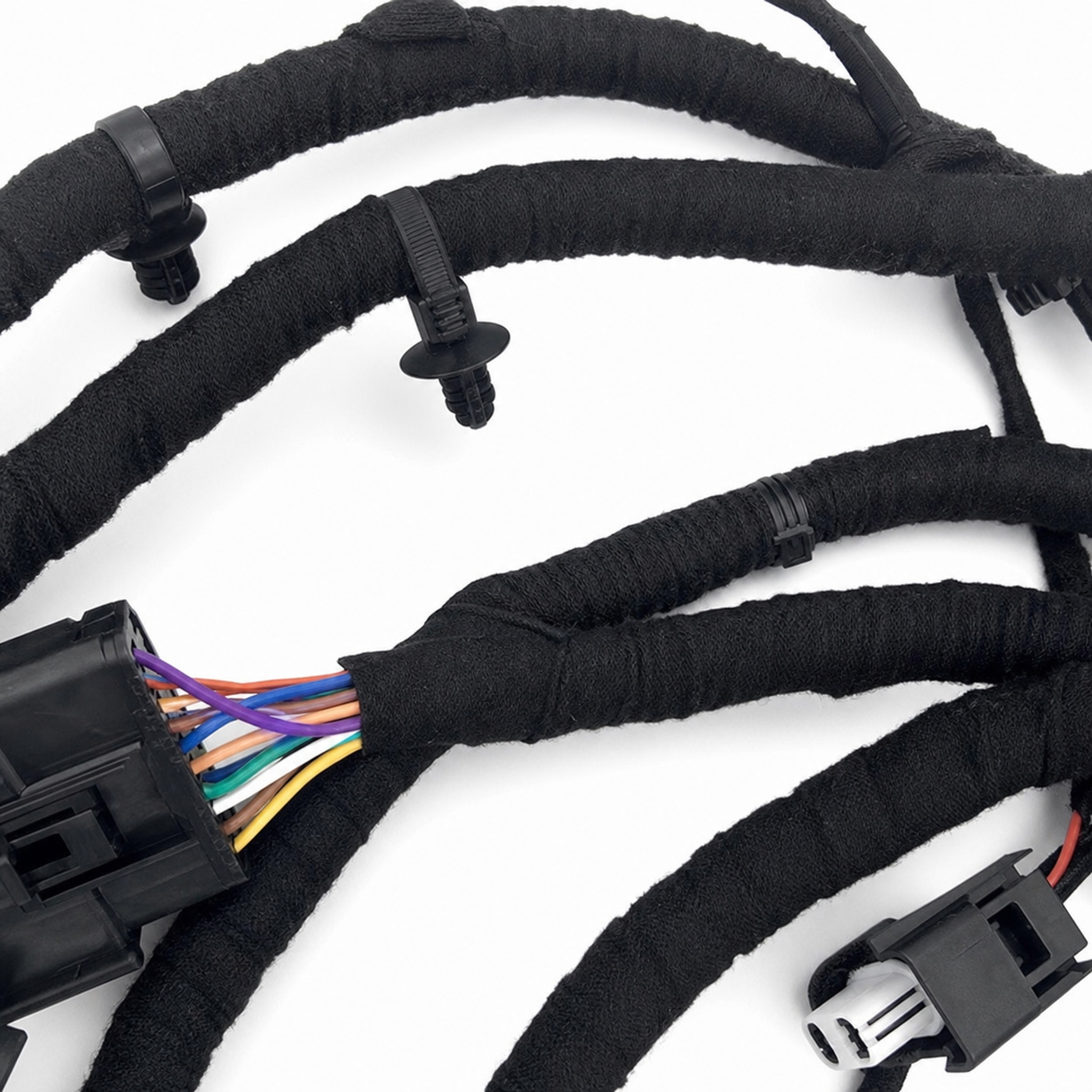

Identification detail: multi-branch bumper harness with parking-sensor connectors and vehicle-side plug
Fitment verification: Confirm connector count, branch lengths, clip positions, bumper version and main plug keying.
Installation guidance: Route every branch through factory clips and lock all sensor connectors before refitting the bumper.
Purchase reference: Quote SKU FD02048-003, OE number, bumper configuration, vehicle details and quantity.
HG9T-15K867-KC Front Bumper Parking Sensor Wiring Harness Overview
This harness distributes power and signals between the 2017 Mondeo front parking sensors and the vehicle wiring loom.
Product-Specific Identification
Count every sensor branch, inspect connector keying and compare the location of clips along the bumper. The HG9T harness belongs to the later front fascia layout and should not be chosen solely because the plugs appear similar.
Bumper Installation Method
Remove the bumper cover with the harness supported, release each connector lock and transfer the loom through the original routing channels. Keep branches clear of impact absorbers, sharp reinforcement edges and hot components.
Later Mondeo Front-Fascia Routing
The HG9T loom follows the 2017 bumper’s clip sequence and sensor spacing. Record the branch order from left to right before removal, and transfer any protective sleeves where the harness passes close to the reinforcement. This prevents connector crossing and vibration damage behind the painted fascia.
Parking-Aid Verification
After refitting, run a parking-aid diagnostic scan, confirm each front sensor reports correctly and check that no connector has been interchanged. A stored fault may also indicate a damaged sensor or vehicle-side circuit.
Automotive Replacement Part Specifications
| Product type | Front Bumper Parking Sensor Wiring Harness |
|---|---|
| Primary OE reference | HG9T-15K867-KC |
| Internal item code | FD02048-003 |
| Vehicle brand | FORD |
| Model | Mondeo |
| Vehicle year | 2017 |
| Applicable vehicle | 2017 FORD Mondeo |
| Installation position | Inside the front bumper cover |
| Identification detail | multi-branch bumper harness with parking-sensor connectors and vehicle-side plug |
| Cross-reference numbers | HG9T-15K867-KC |
Trade Packing and Supply
Cap each connector, coil the loom without sharp bends and protect mounting clips from side loads. Label the package with FD02048-003, HG9T-15K867-KC and front-bumper position.
Frequently Asked Questions
What is HG9T-15K867-KC?
It is the front parking-sensor wiring harness recorded for the 2017 Ford Mondeo.
Which harness details require comparison?
Check the main connector, number of sensor plugs, branch spacing, clip positions and bumper version.
Can later and earlier Mondeo looms be interchanged?
Only when every connector, branch length and mounting location has been verified; generation changes can prevent correct routing.
What diagnostic check follows installation?
Scan the parking-aid module and confirm live response from every front sensor.
What is needed for wholesale supply?
Provide HG9T-15K867-KC, SKU FD02048-003, bumper configuration, destination and quantity.
