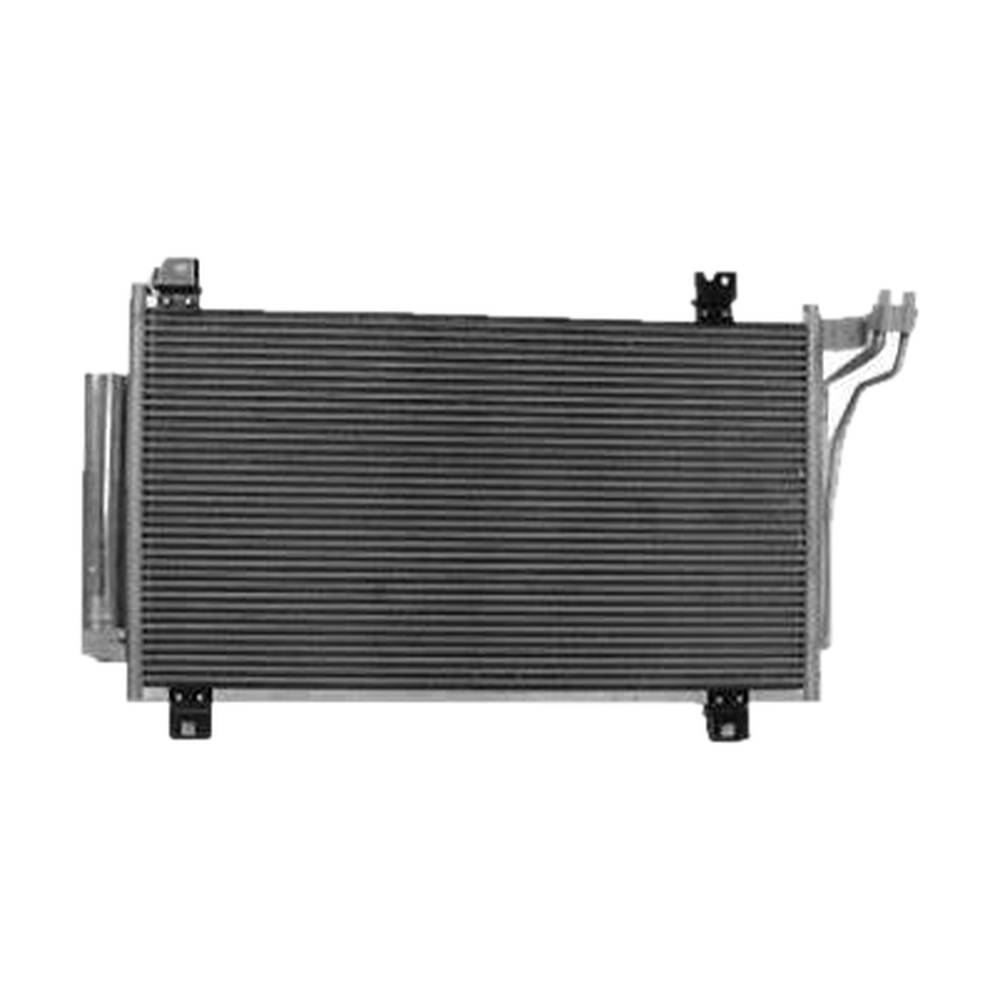

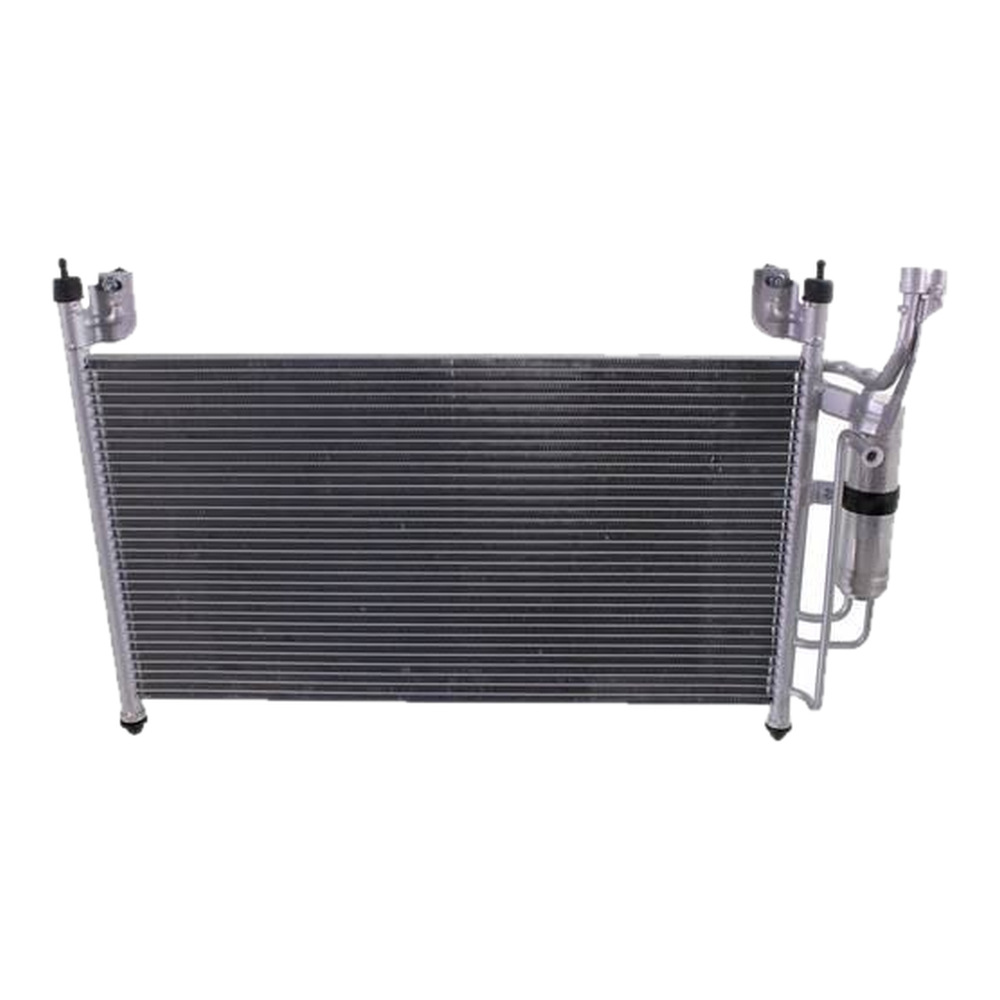

GS1D61480D A/C Condenser Assembly for MAZDA 6
Product: A/C Condenser Assembly
Primary OE: GS1D61480D
Item code: MZ01009-067
Cross-reference numbers:
BDGF61480A
BJS861480
Brand: MAZDA
Model: 6
Function: Helps the climate-control system remove refrigerant heat without restricting frontal airflow.
Supply: Available for sample evaluation, batch purchasing and export cooling-system programmes.
Fitment check: Complete a physical and catalogue comparison before installation approval.
Quality note: Sampling inspection can check geometry, handling condition and packaging protection.
GS1D61480D A/C Condenser Assembly for MAZDA 6
For replacement and wholesale enquiries, GS1D61480D is the principal reference for this MAZDA 6 condenser. Catalogue code MZ01009-067 helps prevent confusion with visually similar versions.
Condenser performance depends on stable pressure containment and even heat rejection across the core face. Tube condition, fin density and connection sealing all influence cabin-cooling response.
Product Technical Specifications
| Component | A/C condenser assembly |
|---|---|
| Primary OE reference | GS1D61480D |
| Cross-reference numbers | BDGF61480A; BJS861480 |
| Vehicle brand | MAZDA |
| Model reference | 6 |
| Yongshang Auto SKU | MZ01009-067 |
| Supply position | Aftermarket wholesale replacement |
Cooling-Circuit Technical Notes
Heat moves from the refrigerant into the aluminum tube-and-fin structure, then to ambient air. Correct mounting and intact fins allow this exchange to occur across the full working area.
Normal cooling depends on the complete system: condenser airflow, fan operation, compressor condition, refrigerant charge, clean lines and properly sealed connections must work together.
Checks for Accurate Selection
Fitment approval should combine GS1D61480D with physical evidence from the original MAZDA 6 condenser. Differences in dryer location or pipe angle can make an otherwise similar core unsuitable.
- Confirm the primary number and each usable cross-reference.
- Match vehicle year, engine, market and production period.
- Compare core width, height, thickness and overall frame size.
- Check fittings, pipe angles, brackets and dryer configuration.
- Review original-part photographs when application data is incomplete.
Professional Installation and System Protection
Professional evacuation and recharge are required because the condenser contains high-pressure refrigerant. Follow local handling rules and the vehicle manufacturer’s repair information.
Supply Quality Review
Incoming and outgoing checks emphasize traceable identification, clean refrigerant passages and protection of the delicate fin surface.
Ordering Specification Notes
For a controlled MAZDA 6 sourcing decision, combine GS1D61480D and MZ01009-067 with vehicle year, engine, market and production date. Ask the installer to note any previous A/C conversion or front-end modification. A written comparison of core size, brackets and pipe ends helps purchasing teams separate genuine interchange evidence from a merely similar product appearance.
Wholesale and Procurement Information
Sample approval is available for GS1D61480D / MZ01009-067 before a larger purchase. Share packaging, labeling and inspection expectations at the quotation stage.
Frequently Asked Questions
Is GS1D61480D suitable for every MAZDA 6 version?
Not automatically. Engines, production dates and regional equipment can change the condenser, so verify both vehicle data and the removed unit.
Which measurements matter during comparison?
Record core height, width and thickness, overall frame size, fitting diameter, fitting position and mounting-hole locations.
Should O-rings be reused?
Use new seals of the correct refrigerant-compatible specification and follow the vehicle maker’s torque and lubrication instructions.
Are inspection photos available before shipment?
They can be discussed for sample or bulk orders, including views of the core, fittings, brackets, labels and packing.
Can neutral or private-label cartons be supplied?
Packing options depend on quantity, artwork and schedule. Include the requirement in the enquiry for evaluation.
Request a GS1D61480D Condenser Quote
Contact Yongshang Auto with GS1D61480D, MZ01009-067, quantity and delivery country for a product review and wholesale proposal for MAZDA 6.
Fitment notice: OE and model references support identification but do not replace VIN-based catalogue checks or comparison with the original condenser.
