F2G3-8A194-AB Radiator Support Locating Pin for 2015 Ford Edge
Primary OE reference: F2G3-8A194-AB
Cross-reference 1: F2G3-8A194-AB
Product type: Radiator Support Locating Pin
Applicable vehicle: 2015 FORD Edge
Installation position: Upper radiator support area
Brand: FORD
Model: Edge
Vehicle year: 2015
Identification detail: model-specific locating pin with stepped shoulder and retention features
Fitment basis: Match F2G3-8A194-AB, thread or hole size, shoulder length and contact surface.
Installation guidance: Start the fastener by hand and apply the vehicle maker’s specified tightening method.
Purchase reference: Quote SKU FD02042-001, OE number, vehicle application and quantity.
F2G3-8A194-AB Radiator Support Locating Pin Overview
Radiator Support Locating Pin F2G3-8A194-AB serves the upper radiator support area on the stated FORD application. This pin establishes the intended radiator-support position before adjacent brackets are finally tightened.
Product-Specific Fitment

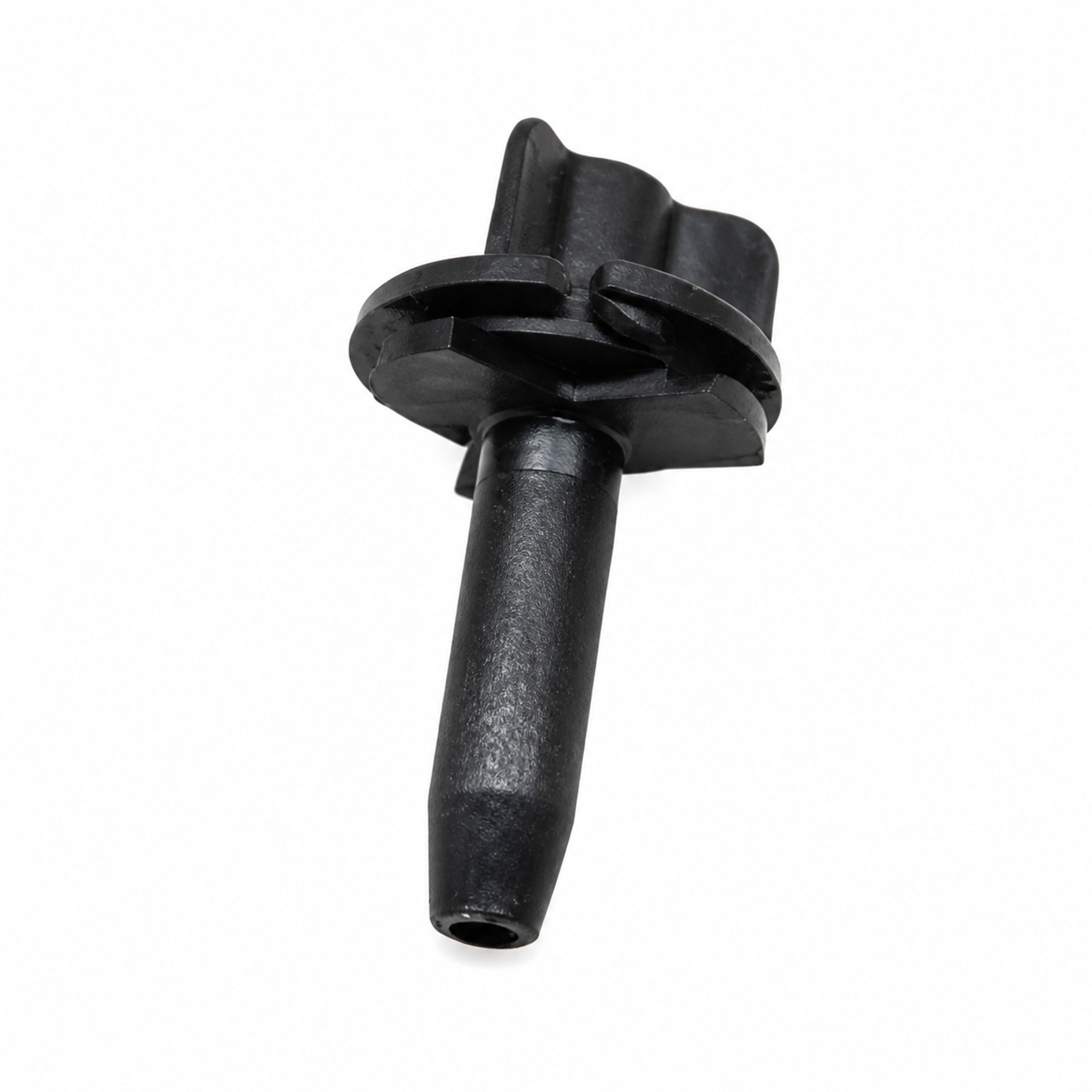

Use the product photographs to compare model-specific locating pin with stepped shoulder and retention features. Inspect the mating stud, bracket or body opening because a similar-looking fastener may have a different pitch, shoulder or locating depth.
Workshop Installation Method
Clean the mating thread and start F2G3-8A194-AB without power tools. If resistance is felt before seating, stop and check pitch alignment; cross-threading can damage the retained component.
Functional Check After Assembly
Complete a final clearance check around the installed part. The assembly should remain centred, avoid body contact and retain enough access for normal maintenance.
Warehouse Identification
Store SKU FD02042-001 under F2G3-8A194-AB with the FORD Edge application and upper radiator support area recorded on the bin label. Keep small threaded pieces bagged separately; protect formed brackets from stacking loads that could change their geometry.
Cooling Pack Location Datum
Use the stepped pin as an assembly datum for the upper cooling-pack support. Check the rubber seat and surrounding sheet metal before drawing the bracket into position; the pin should guide alignment without carrying unintended side load from a distorted front structure.
Automotive Replacement Part Specifications
| Product type | Radiator Support Locating Pin |
|---|---|
| Primary OE reference | F2G3-8A194-AB |
| Internal item code | FD02042-001 |
| Vehicle brand | FORD |
| Model | Edge |
| Vehicle year | 2015 |
| Applicable vehicle | 2015 FORD Edge |
| Installation position | Upper radiator support area |
| Identification detail | model-specific locating pin with stepped shoulder and retention features |
| Cross-reference numbers | F2G3-8A194-AB |
Packing and Trade Supply
Protect threads and exposed locating ends with sleeves or caps. Pack SKU FD02042-001 so finished faces and bracket bends cannot rub against loose hardware in transit.
Frequently Asked Questions
What does F2G3-8A194-AB identify?
F2G3-8A194-AB identifies the stated radiator support locating pin for 2015 FORD Edge.
Which features should be compared for FD02042-001?
Check model-specific locating pin with stepped shoulder and retention features, then verify every thread, shoulder, hole and contact face.
Can a similar fastener be substituted?
Only after confirming dimensions, material function and the load carried by the mounting point.
What installation practice is recommended?
Dry-fit the support, preserve isolators and tighten compatible fasteners evenly.
What information is required for wholesale supply?
Provide F2G3-8A194-AB, SKU FD02042-001, vehicle details, destination and order quantity.
