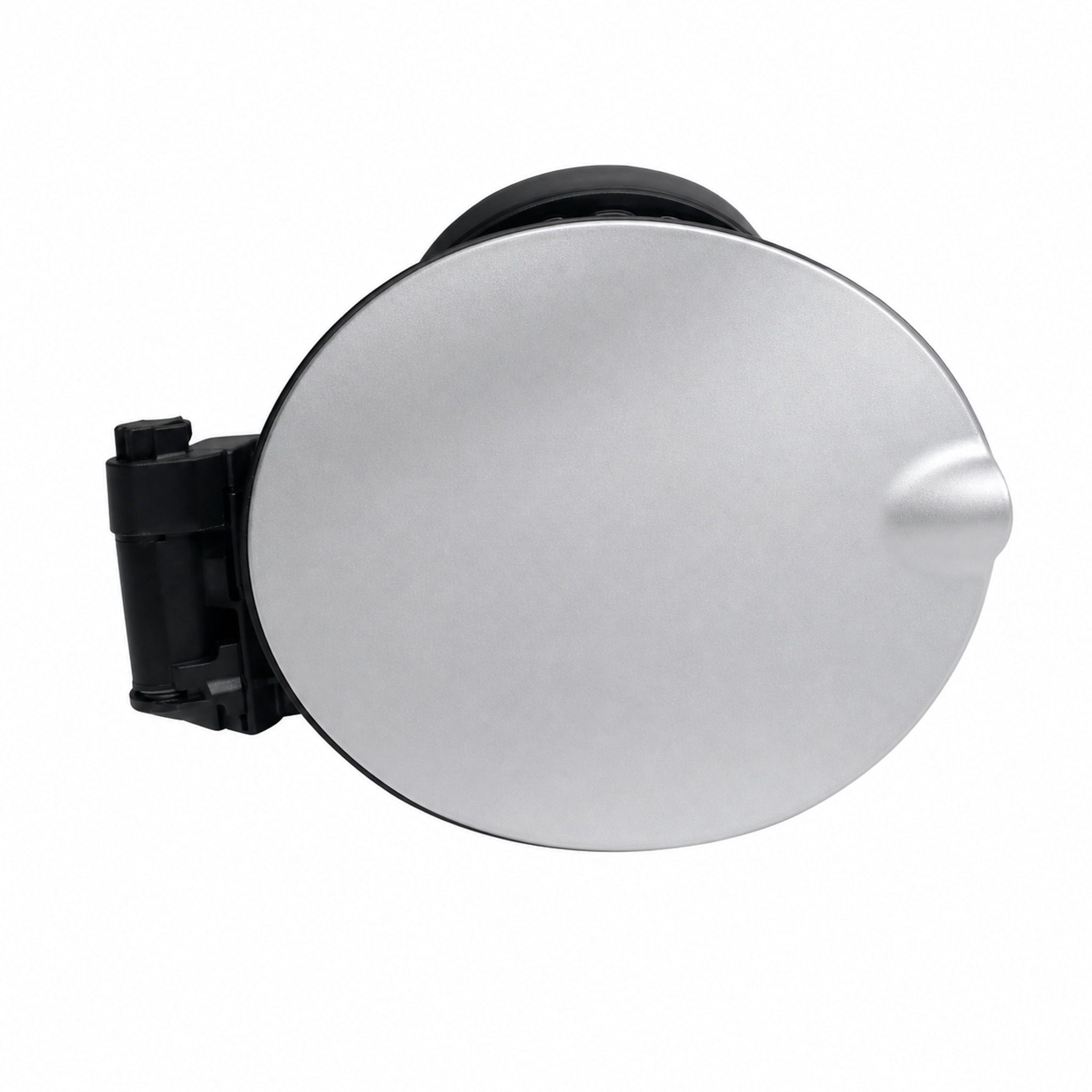

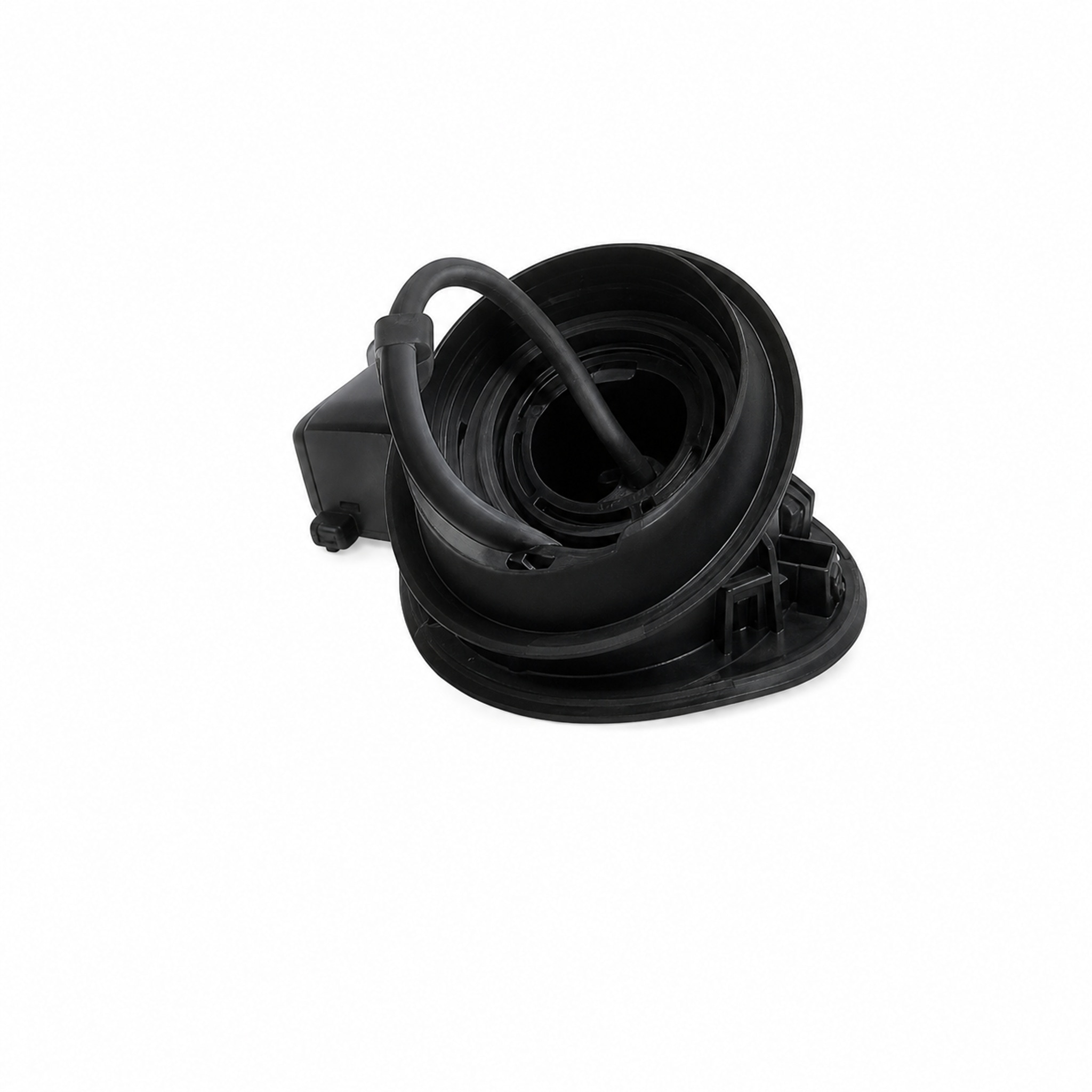

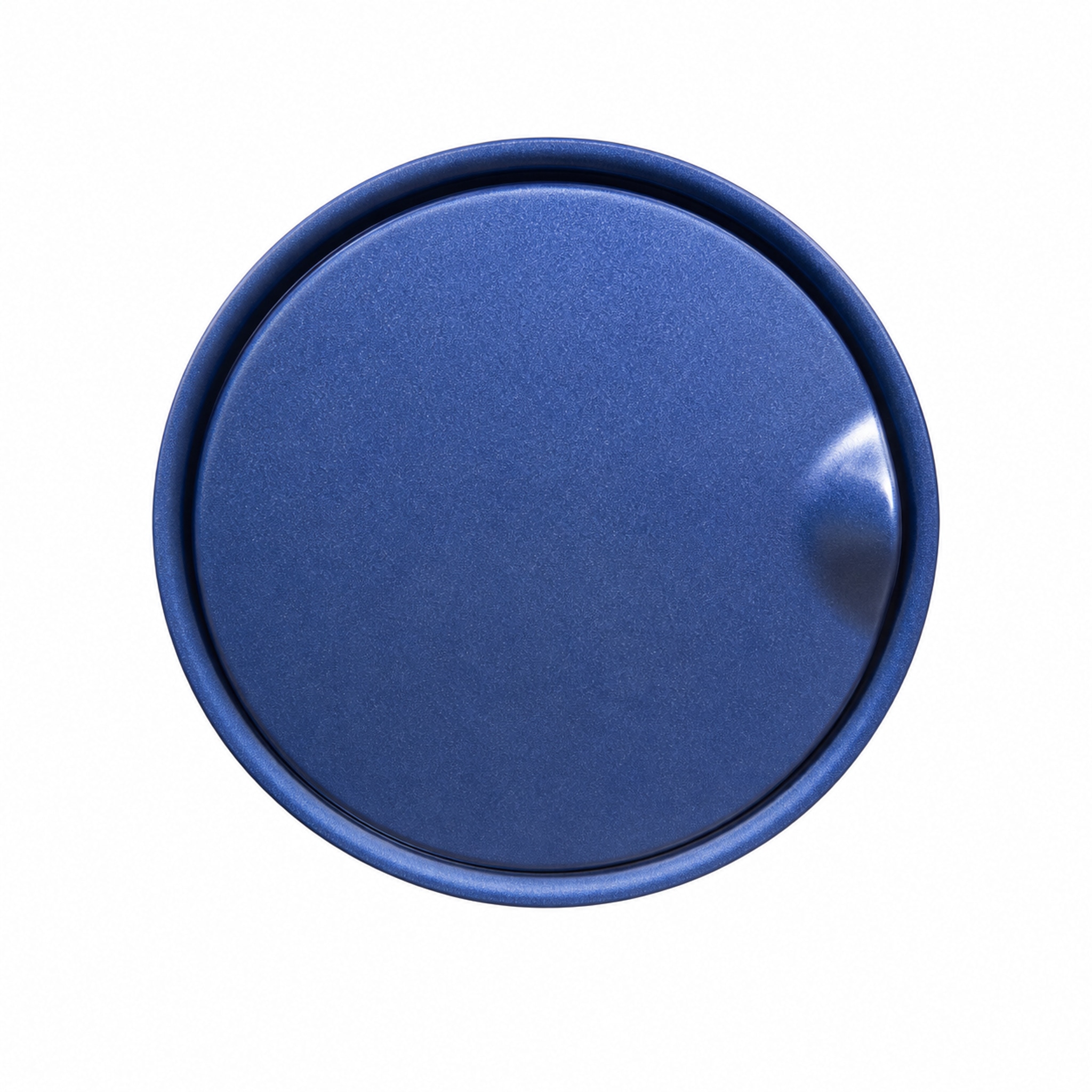

DV45S405A02DB6JA Fuel Filler Door for 2013 Ford Kuga
Primary OE reference: DV45S405A02DB6JA
Cross-reference 1: DV45S405A02DB6JA
Cross-reference 2: 1801014
Product type: Fuel Filler Door
Applicable vehicle: 2013 FORD Kuga
Installation position: Exterior rear quarter panel
Brand: FORD
Model: Kuga
Vehicle year: 2013
Visible identification: fuel-door panel and operating features shaped for the Kuga body opening
Surface appearance: Paint-ready or exterior finish as shown in the saved images
Fitment verification: Compare DV45S405A02DB6JA, body style, filler-opening contour and hinge or neck interface.
Installation preparation: Dry-fit before painting; verify hinge travel, latch engagement and perimeter gap.
Order information: Quote DV45S405A02DB6JA / 1801014, SKU FD02039-001, vehicle configuration and quantity.
Wholesale note: State destination and packing needs; protect painted faces and hinge features separately.
DV45S405A02DB6JA Fuel Filler Door Overview
The 2013 FORD Kuga application associates DV45S405A02DB6JA with a fuel filler door. It is position-specific body hardware rather than a universal cosmetic cover.
Product-Specific Application
SUV ride conditions make secure hinge travel, positive closure and weather clearance important on this Kuga application.
Surface and Workshop Handling
Trial-fit DV45S405A02DB6JA before colour coating. Mask the hinge, latch contact and clip seats, then allow the finish to cure before operating the door.
Hinge, Latch or Sealing Interface
Mount the hinge or carrier without forcing the quarter panel. Centre the flap in the opening, confirm free travel and verify that it latches flush on every closing cycle.
Related System Diagnosis
If DV45S405A02DB6JA sits proud or rubs an edge, inspect the hinge carrier, stop, spring and surrounding body opening. Adjustment should correct alignment without bending the painted flap.
Stock Control for FD02039-001
Warehouse record FD02039-001 should carry DV45S405A02DB6JA / 1801014, FORD Kuga 2013 and the exterior rear quarter panel location on one label. During picking, compare FD02039-001 against fuel-door panel and operating features shaped for the Kuga body opening; during packing, isolate DV45S405A02DB6JA from loose clips and metal fasteners. This product-specific identification prevents a visually close fuel component from being assigned to the wrong body style.
Automotive Replacement Part Specifications
| Product type | Fuel Filler Door |
|---|---|
| Primary OE reference | DV45S405A02DB6JA |
| Internal item code | FD02039-001 |
| Vehicle brand | FORD |
| Model | Kuga |
| Vehicle year | 2013 |
| Applicable vehicle | 2013 FORD Kuga |
| Installation position | Exterior rear quarter panel |
| Surface appearance | Paint-ready or exterior finish as shown in the saved images |
| Cross-reference numbers | DV45S405A02DB6JA / 1801014 |
Trade Packing and Identification
Pack SKU FD02039-001 with the visible face or seal isolated from fasteners. Label exterior rear quarter panel, FORD Kuga, 2013 and DV45S405A02DB6JA so adjacent variants remain separated.
Frequently Asked Questions
What does DV45S405A02DB6JA identify?
DV45S405A02DB6JA identifies the listed fuel filler door for 2013 FORD Kuga.
Which dimensions and interfaces should be checked?
Compare fuel-door panel and operating features shaped for the Kuga body opening, the filler-opening profile and every concealed attachment point.
Is body style important?
Yes. Sedan, hatchback and SUV quarter panels may use different doors even within the same model family.
What should be tested after installation?
Check hinge travel, edge clearance, latch retention and flush alignment with the quarter panel.
What information supports a wholesale quotation?
Provide DV45S405A02DB6JA / 1801014, SKU FD02039-001, vehicle body style, finish requirement, destination and quantity.
