DG9T-15K867-KB Front Bumper Radar Sensor Harness for 2013 Ford Mondeo
Primary OE reference: DG9T-15K867-KB
Cross-reference 1: DG9T-15K867-KB
Product type: Front Bumper Parking Sensor Wiring Harness
Applicable vehicle: 2013 FORD Mondeo
Installation position: Behind the front bumper fascia
Brand: FORD
Model: Mondeo
Vehicle year: 2013
Identification detail: 2013 Mondeo sensor loom with generation-specific branch lengths and attachment clips
Fitment verification: Confirm connector count, branch lengths, clip positions, bumper version and main plug keying.
Installation guidance: Route every branch through factory clips and lock all sensor connectors before refitting the bumper.
Purchase reference: Quote SKU FD02048-004, OE number, bumper configuration, vehicle details and quantity.

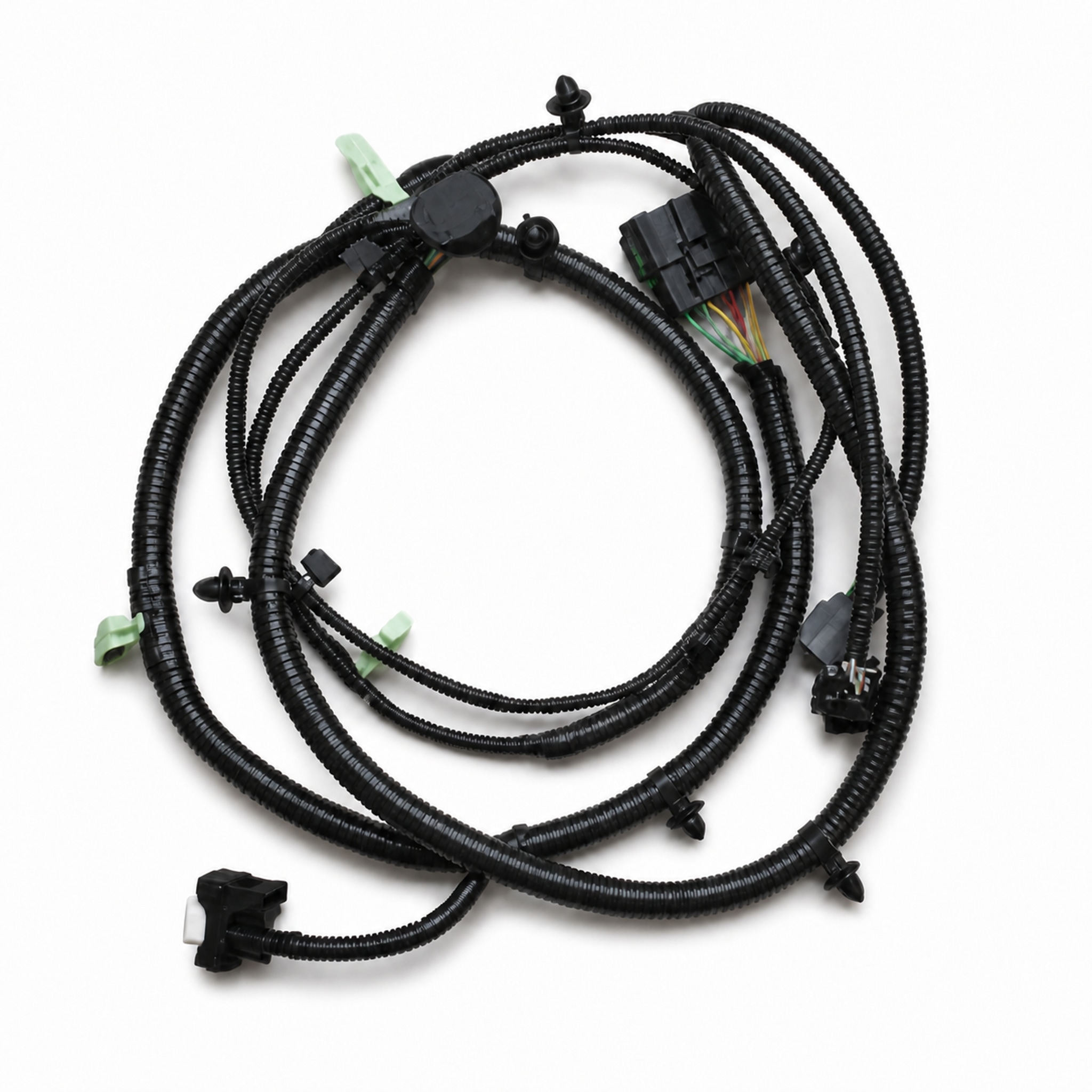

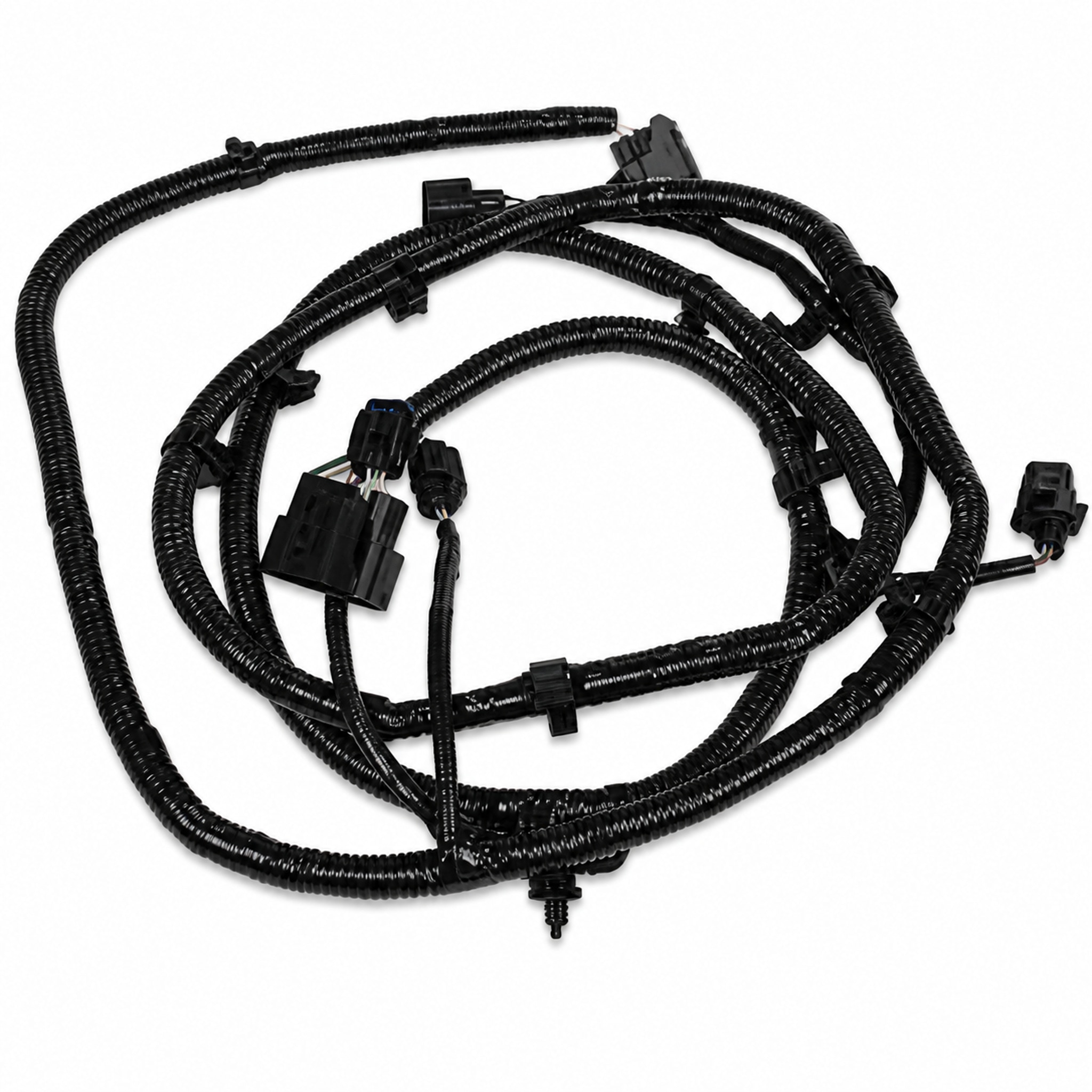

DG9T-15K867-KB Front Bumper Parking Sensor Wiring Harness Overview
Reference DG9T-15K867-KB identifies the front parking-sensor harness used with the 2013 Mondeo bumper arrangement.
Product-Specific Identification
Compare the main plug orientation, sensor connector count and distance between branch points. The earlier DG9T routing follows a different fascia and reinforcement relationship from later Mondeo wiring.
Bumper Installation Method
Lay the replacement harness beside the removed loom before installation and mark every branch position. Engage the factory clips in sequence, leave relaxed bends at each sensor and avoid stretching the main connector toward the body loom.
2013 Harness Branch Identification
The DG9T design belongs to the earlier Mondeo bumper electrical layout. During comparison, measure from the main connector to the first branch and from sensor plug to sensor plug. Correct length lets every connection reach naturally without coils or tension near the absorber.
Parking-Aid Verification
Switch on the parking-aid system only after all connectors are locked. Read diagnostic trouble codes, test obstacle detection across the front bumper and inspect data from each channel if the warning tone remains active.
Automotive Replacement Part Specifications
| Product type | Front Bumper Parking Sensor Wiring Harness |
|---|---|
| Primary OE reference | DG9T-15K867-KB |
| Internal item code | FD02048-004 |
| Vehicle brand | FORD |
| Model | Mondeo |
| Vehicle year | 2013 |
| Applicable vehicle | 2013 FORD Mondeo |
| Installation position | Behind the front bumper fascia |
| Identification detail | 2013 Mondeo sensor loom with generation-specific branch lengths and attachment clips |
| Cross-reference numbers | DG9T-15K867-KB |
Trade Packing and Supply
Cap each connector, coil the loom without sharp bends and protect mounting clips from side loads. Label the package with FD02048-004, DG9T-15K867-KB and front-bumper position.
Frequently Asked Questions
Which component does DG9T-15K867-KB identify?
It identifies the 2013 Mondeo front bumper parking-sensor harness.
How should the branch layout be checked?
Lay it beside the removed loom and compare connector positions, clip spacing and the vehicle-side plug.
What can damage the installed harness?
Pinching behind the reinforcement, stretched branches, unlocked plugs and contact with sharp bumper hardware.
How is the system verified?
Clear fault codes, test each detection channel and confirm the warning display and tones operate normally.
Which order details are important?
State DG9T-15K867-KB, SKU FD02048-004, model year, sensor count, delivery market and quantity.
