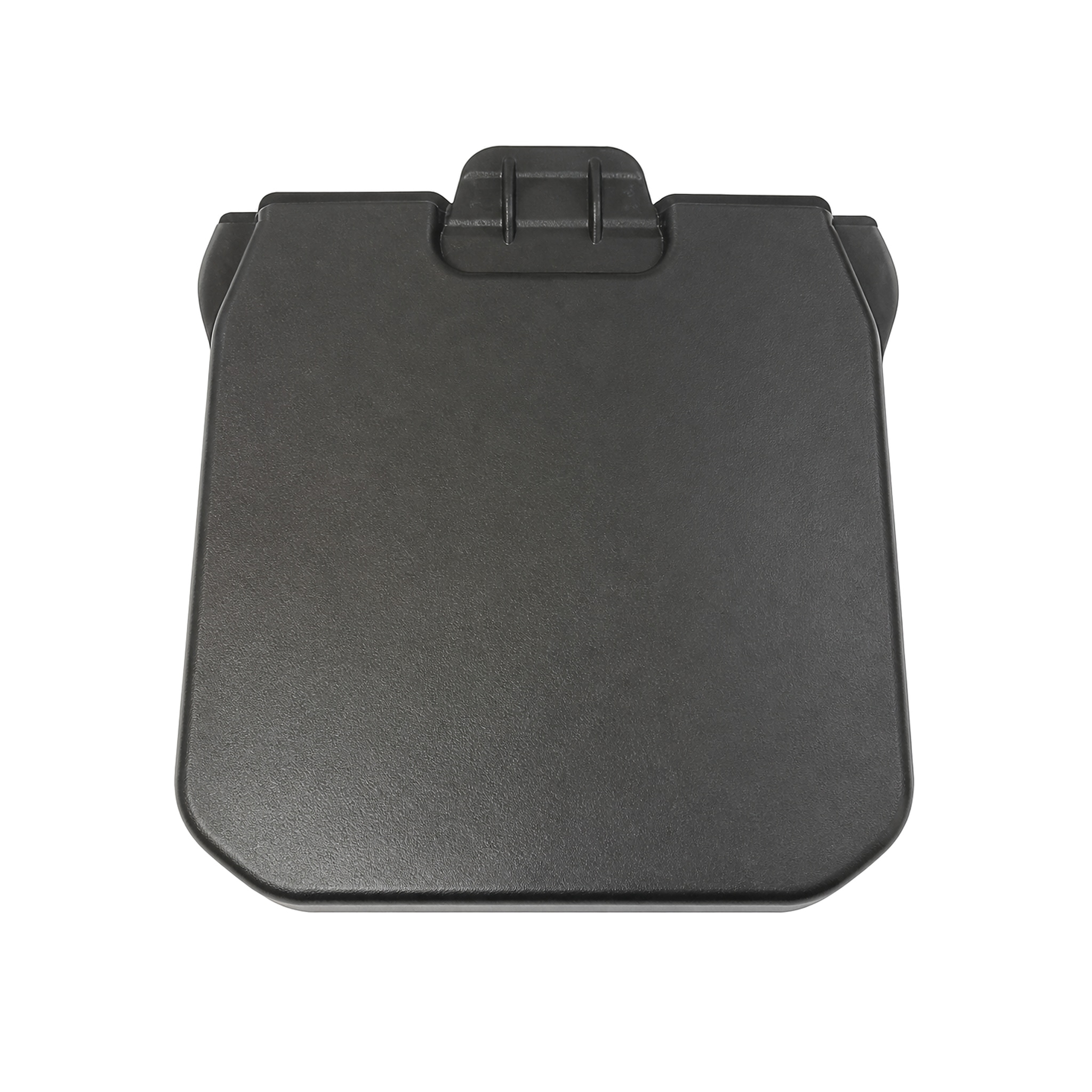

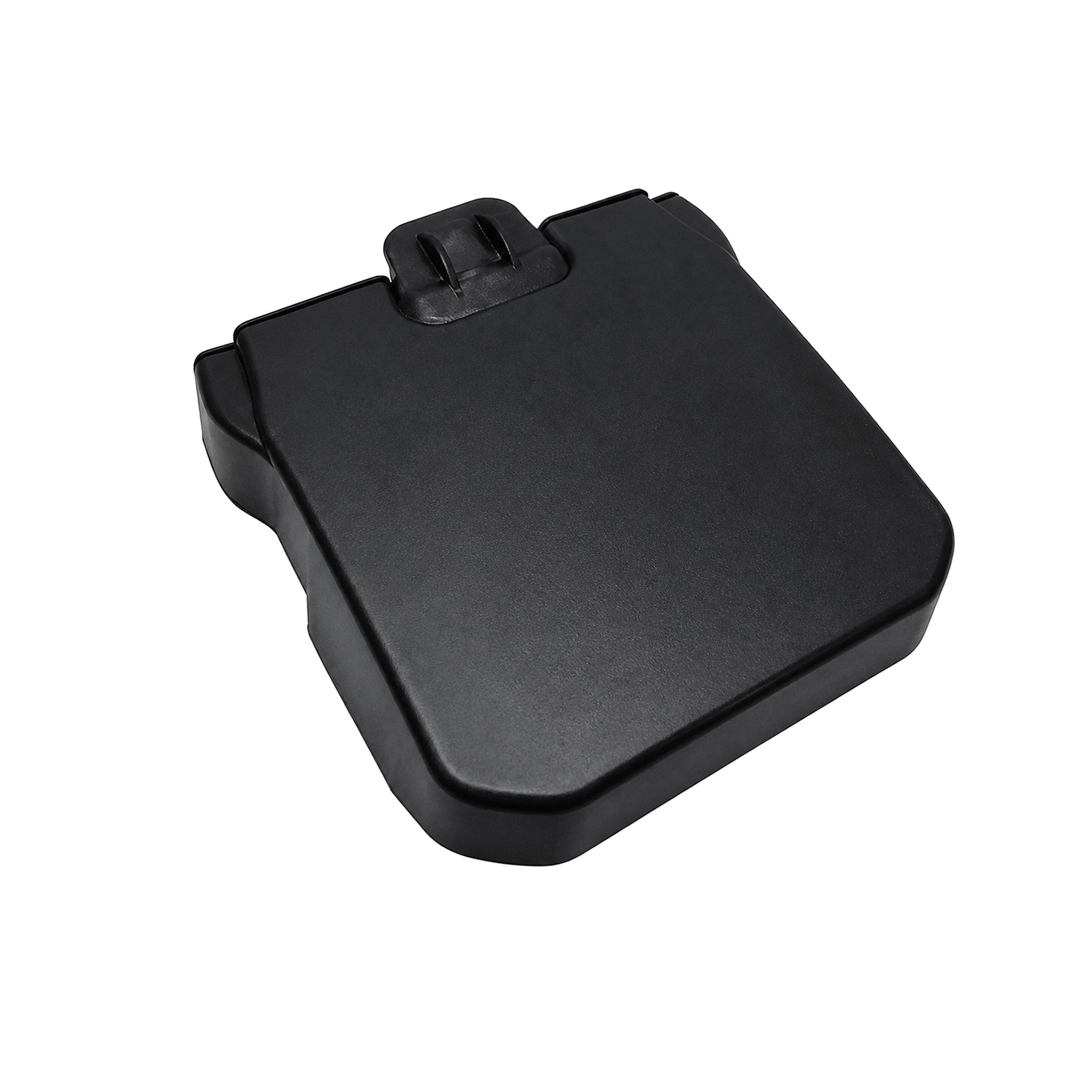

CV61-10723-AB 1747878 Battery Tray for 2013 Ford Kuga
Primary OE reference: CV61-10723-AB
Cross-reference 1: CV61-10723-AB
Cross-reference 2: 1747878
Product type: Battery Tray
Applicable vehicle: 2013 FORD Kuga
Installation position: Engine-bay battery mounting area
Brand: FORD
Model: Kuga
Vehicle year: 2013
Identification detail: lower moulded carrier with drain features and hold-down interfaces
Fitment verification: Confirm CV61-10723-AB / 1747878, battery size, cable exits, clip pattern and mounting geometry.
Installation guidance: Disconnect the battery safely, dry-fit the component and ensure no terminal, cable or ventilation path is trapped.
Purchase reference: Quote SKU FD02044-001, OE number, battery layout, vehicle application and quantity.
CV61-10723-AB Battery Tray Overview
CV61-10723-AB identifies the listed battery tray for 2013 FORD Kuga. This Kuga tray supports battery weight and defines the position of the retaining clamp and nearby cable routing.
Battery-Area Fitment Identification
Compare lower moulded carrier with drain features and hold-down interfaces. Check the battery footprint, terminal orientation, cable reliefs and every concealed locating point; a cover that looks similar from above may use a different lower interface.
Safe Installation Preparation
Remove loose debris from the battery area and preserve original insulators or drain pieces. Trial-fit CV61-10723-AB, confirm terminal clearance and secure it only after cables lie naturally in their intended channels.
Post-Installation Function Check
After assembly, confirm the battery cannot shift, the bonnet closes freely and no edge rubs through cable insulation. Recheck ventilation and drainage paths before returning the vehicle to service.
Battery Load Distribution
Inspect the support floor for acid damage and confirm the drainage outlet remains open. The Kuga clamp should pull against its designed seat, not a distorted tray wall. Transfer any rubber pads so battery mass is spread across the moulded base during braking and cornering.
Automotive Replacement Part Specifications
| Product type | Battery Tray |
|---|---|
| Primary OE reference | CV61-10723-AB |
| Internal item code | FD02044-001 |
| Vehicle brand | FORD |
| Model | Kuga |
| Vehicle year | 2013 |
| Applicable vehicle | 2013 FORD Kuga |
| Installation position | Engine-bay battery mounting area |
| Identification detail | lower moulded carrier with drain features and hold-down interfaces |
| Cross-reference numbers | CV61-10723-AB / 1747878 |
Warehouse Packing and Supply
Protect moulded corners, clip tabs and thermal surfaces from stacking pressure. Label the carton with FD02044-001, CV61-10723-AB, vehicle application and battery-area position.
Frequently Asked Questions
What does CV61-10723-AB identify?
CV61-10723-AB identifies the listed battery tray for 2013 FORD Kuga.
How should SKU FD02044-001 be matched?
Compare lower moulded carrier with drain features and hold-down interfaces, battery layout, cable openings and all attachment points.
Must the battery be disconnected?
Yes. Follow the vehicle manufacturer’s isolation and reconnection procedure before working around terminals.
What should be checked after installation?
Confirm secure seating, cable clearance, terminal protection, ventilation and drainage.
What information supports a wholesale quotation?
Provide CV61-10723-AB / 1747878, SKU FD02044-001, vehicle details, destination and quantity.
