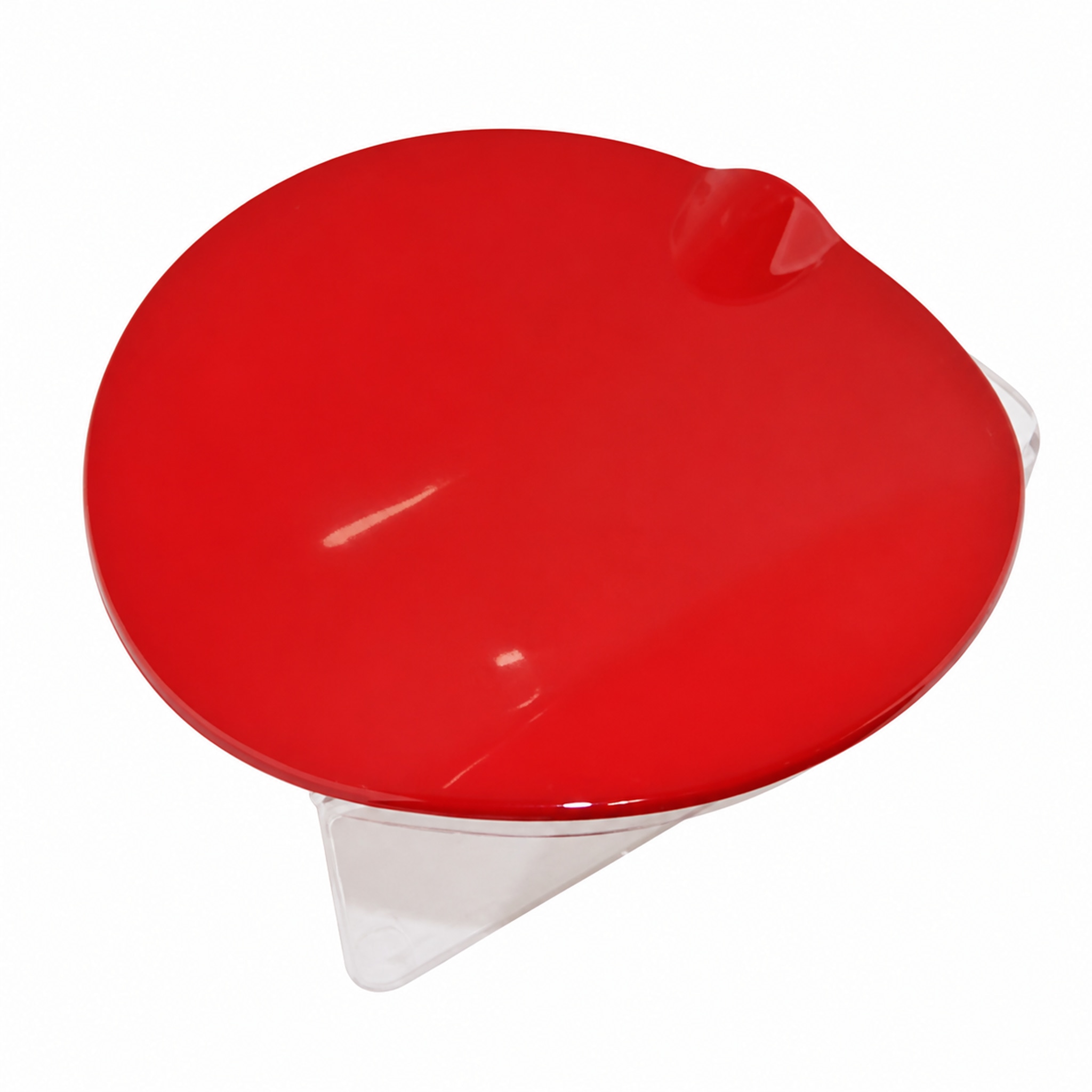

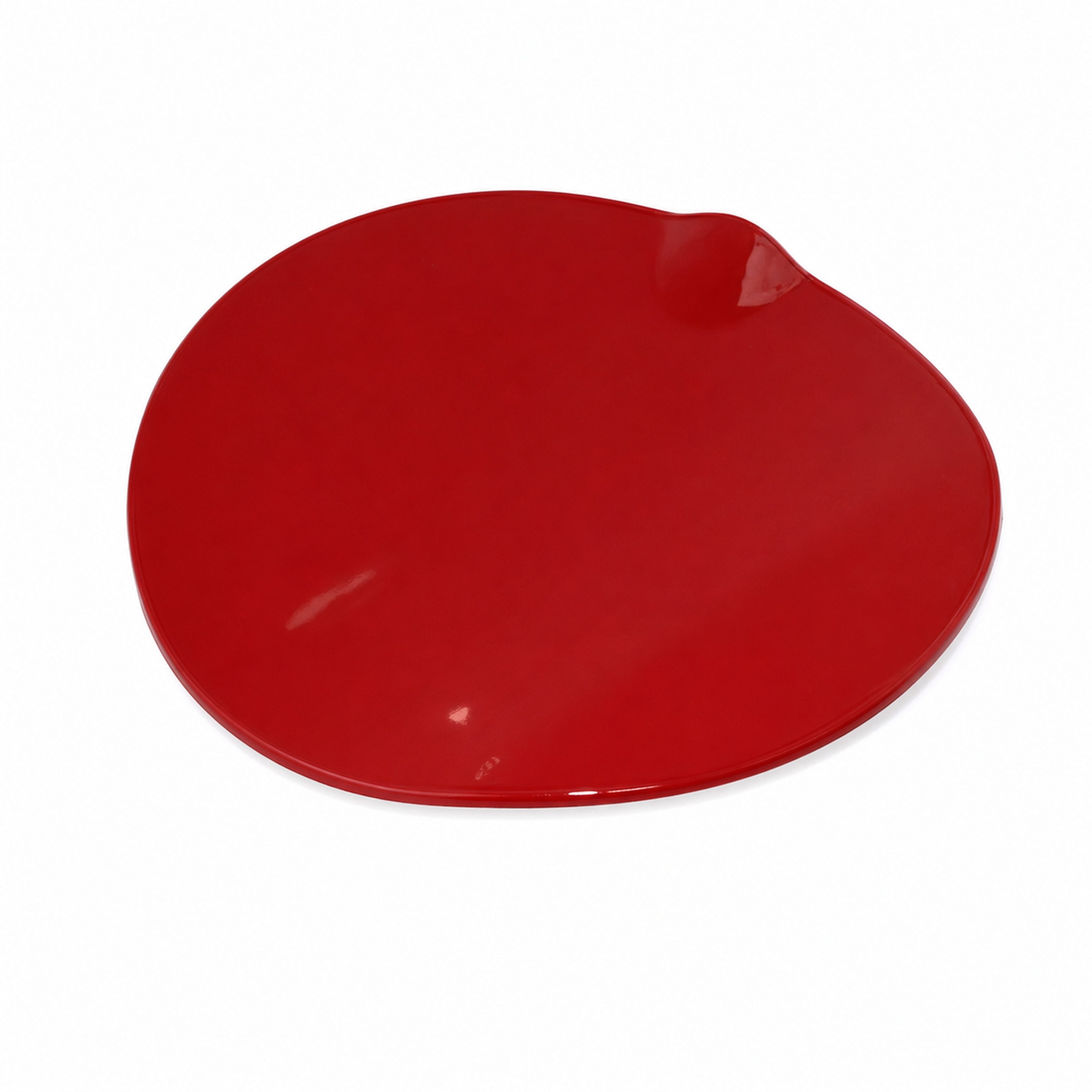

CN15-N405A02-BA Fuel Filler Door for 2013 Ford EcoSport
Primary OE reference: CN15-N405A02-BA
Cross-reference 1: CN15-N405A02-BA
Product type: Fuel Filler Door
Applicable vehicle: 2013 FORD EcoSport
Installation position: Exterior rear quarter panel
Brand: FORD
Model: EcoSport
Vehicle year: 2013
Visible identification: compact exterior flap with a concealed hinge-side mounting arrangement
Surface appearance: Paint-ready or exterior finish as shown in the saved images
Fitment verification: Compare CN15-N405A02-BA, body style, filler-opening contour and hinge or neck interface.
Installation preparation: Dry-fit before painting; verify hinge travel, latch engagement and perimeter gap.
Order information: Quote CN15-N405A02-BA, SKU FD02039-002, vehicle configuration and quantity.
Wholesale note: State destination and packing needs; protect painted faces and hinge features separately.
CN15-N405A02-BA Fuel Filler Door Overview
CN15-N405A02-BA is listed as a fuel filler door for the 2013 FORD EcoSport. It protects the filler area and completes the visible body or sealing interface.
Product-Specific Application
The EcoSport quarter-panel recess is compact, so edge clearance and the stop position should be checked before final paint work.
Surface and Workshop Handling
Trial-fit CN15-N405A02-BA before colour coating. Mask the hinge, latch contact and clip seats, then allow the finish to cure before operating the door.
Hinge, Latch or Sealing Interface
Mount the hinge or carrier without forcing the quarter panel. Centre the flap in the opening, confirm free travel and verify that it latches flush on every closing cycle.
Related System Diagnosis
If CN15-N405A02-BA sits proud or rubs an edge, inspect the hinge carrier, stop, spring and surrounding body opening. Adjustment should correct alignment without bending the painted flap.
Stock Control for FD02039-002
Warehouse record FD02039-002 should carry CN15-N405A02-BA, FORD EcoSport 2013 and the exterior rear quarter panel location on one label. During picking, compare FD02039-002 against compact exterior flap with a concealed hinge-side mounting arrangement; during packing, isolate CN15-N405A02-BA from loose clips and metal fasteners. This product-specific identification prevents a visually close fuel component from being assigned to the wrong body style.
Automotive Replacement Part Specifications
| Product type | Fuel Filler Door |
|---|---|
| Primary OE reference | CN15-N405A02-BA |
| Internal item code | FD02039-002 |
| Vehicle brand | FORD |
| Model | EcoSport |
| Vehicle year | 2013 |
| Applicable vehicle | 2013 FORD EcoSport |
| Installation position | Exterior rear quarter panel |
| Surface appearance | Paint-ready or exterior finish as shown in the saved images |
| Cross-reference numbers | CN15-N405A02-BA |
Trade Packing and Identification
Pack SKU FD02039-002 with the visible face or seal isolated from fasteners. Label exterior rear quarter panel, FORD EcoSport, 2013 and CN15-N405A02-BA so adjacent variants remain separated.
Frequently Asked Questions
What does CN15-N405A02-BA identify?
CN15-N405A02-BA identifies the listed fuel filler door for 2013 FORD EcoSport.
Which dimensions and interfaces should be checked?
Compare compact exterior flap with a concealed hinge-side mounting arrangement, the filler-opening profile and every concealed attachment point.
Is body style important?
Yes. Sedan, hatchback and SUV quarter panels may use different doors even within the same model family.
What should be tested after installation?
Check hinge travel, edge clearance, latch retention and flush alignment with the quarter panel.
What information supports a wholesale quotation?
Provide CN15-N405A02-BA, SKU FD02039-002, vehicle body style, finish requirement, destination and quantity.
