97701-2S601 A/C Compressor for Hyundai
Product: Automotive Air Conditioning Compressor
Primary OE: 97701-2S601
Item code: ACC260727-002
Cross-reference numbers:
97701-2S601
Brand: HYUNDAI

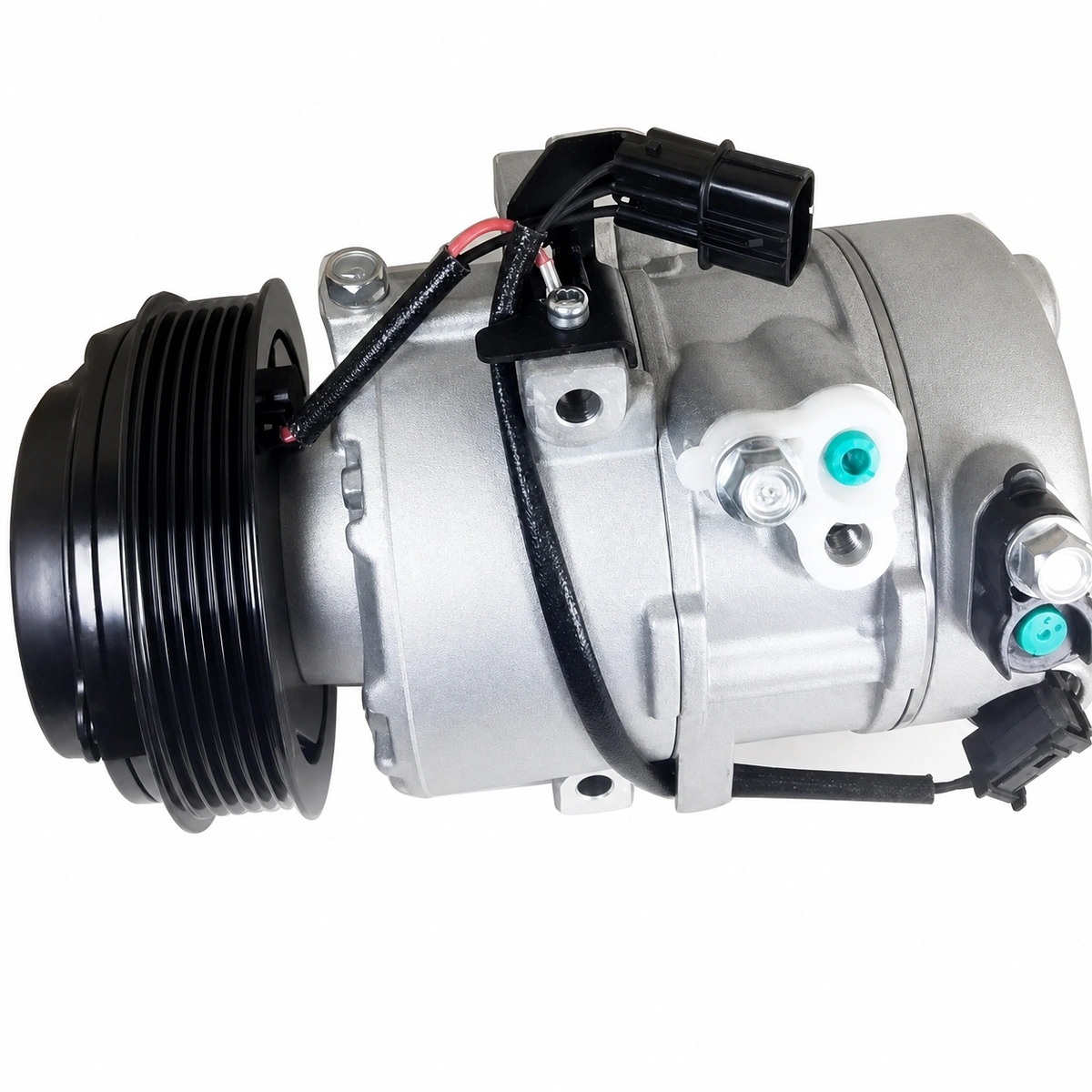

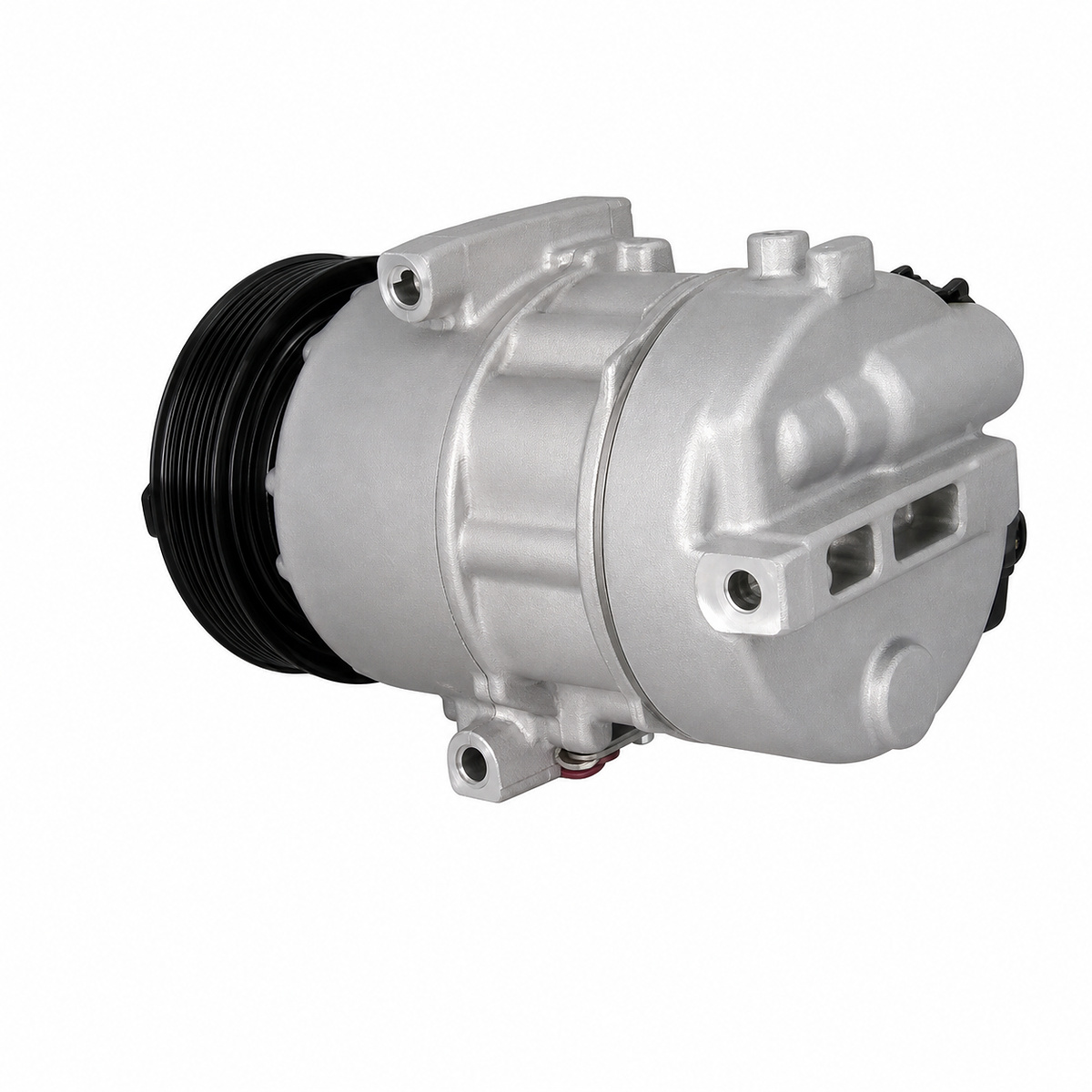

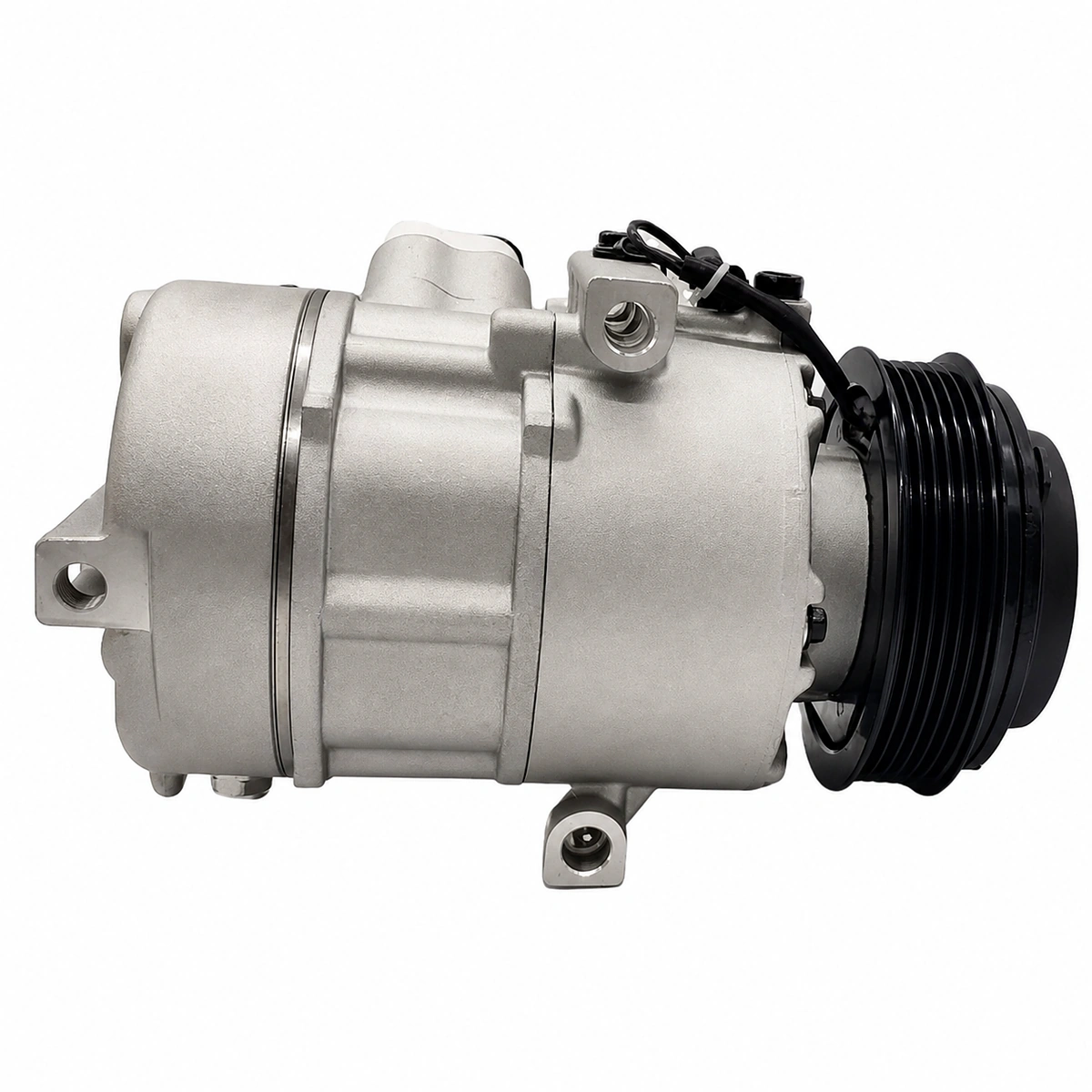

Configuration: compact aluminium compressor with ribbed pulley, top-mounted wiring lead, control connection and model-specific mounting bracket geometry
Application reference: Hyundai ix35 and Tucson source references, with a related Kia Sportage 2010–2015 application listing; confirm the exact vehicle by VIN, engine data and original-compressor comparison.
Inspection focus: connector lead, pulley face, mounting lugs, port block location, rear housing shape, control valve area and overall installed height
Supply note: Quote ACC260727-002 with quantity, destination, packaging and sample-approval requirements.
97701-2S601 covers a compact compressor assembly used across several Hyundai and related Kia platform references. Yongshang Auto records this unit as ACC260727-002 for quotation, sample approval and shipment traceability.
The supplied application reference includes Hyundai ix35 and Tucson source references, with a related Kia Sportage 2010–2015 application listing. Because compressor selection also depends on engine, refrigerant circuit, pulley, connector and production changes, the Model filter is deliberately blank.
Product Technical Specifications
| Product type | Automotive Air Conditioning Compressor |
|---|---|
| Primary OE reference | 97701-2S601 |
| Internal item code | ACC260727-002 |
| Vehicle brand | HYUNDAI |
| Model filter | Intentionally blank; confirm by VIN, engine and A/C system data |
| Cross-reference numbers | 97701-2S601 |
| Configuration | compact aluminium compressor with ribbed pulley, top-mounted wiring lead, control connection and model-specific mounting bracket geometry |
| Fitment approval | OE number, VIN, pulley, ports, mounting ears and connector comparison |
Variable Cooling Demand Across Hyundai Platforms
The compressor circulates refrigerant according to cabin demand, converting the evaporator return flow into a high-pressure discharge stream. Smooth control helps stabilise outlet temperature without unnecessary mechanical load.
The visible wiring lead and housing geometry are key identification clues. Similar Hyundai/Kia compressors may bolt near the same position while using a different plug, port block or displacement control.
Connector Lead, Port Block and Lug Comparison
Verify 97701-2S601 through VIN, engine family and equipment level. Lay the old and replacement units in the same orientation and compare every mounting point and refrigerant connection.
Inspect pulley diameter and alignment, connector style, wire length and control-valve location. Model is intentionally blank because the source spans Hyundai and Kia applications.
Oil Balance and Moisture-Control Procedure
Keep shipping caps installed until the hoses are ready to connect. Drain and measure oil from the removed unit when the service procedure requires oil balancing, then use only the specified refrigerant oil type.
Renew seals and the receiver-drier or accumulator when required, evacuate thoroughly and confirm the system holds vacuum. After charging, check vent temperature and compressor control response.
Procurement, Packaging and Sample Approval
Use 97701-2S601 as the OE sourcing reference and ACC260727-002 as the internal item code. State order volume, destination, carton marking, labels and pallet requirements in the enquiry.
For technical approval, submit the VIN, engine data, refrigerant label, old-compressor tag and clear photographs of the pulley, ports, mounting ears and electrical connector.
Frequently Asked Questions
Is 97701-2S601 an A/C compressor assembly?
Yes. Catalogues identify it as a Hyundai compressor assembly, with source applications spanning Tucson/ix35 and a related Sportage reference.
Why is no Hyundai Model selected?
The supplied list includes multiple Hyundai and Kia platforms, so the page leaves Model blank and requires VIN-based verification.
Which electrical parts should match?
Compare the connector body, wire lead length, pin layout and the location of the compressor control connection.
Why must shipping caps stay fitted?
Open ports allow moisture and debris into the compressor; caps should remain in place until clean lines are ready for connection.
How can distributors order 97701-2S601?
Quote ACC260727-002 with the OE number, volume, destination, labelling requirements and sample-approval instructions.
Request a 97701-2S601 A/C Compressor Quote
Contact Yongshang Auto with OE 97701-2S601, item code ACC260727-002, quantity and delivery market. Installation and refrigerant handling should be completed by qualified automotive A/C personnel.
