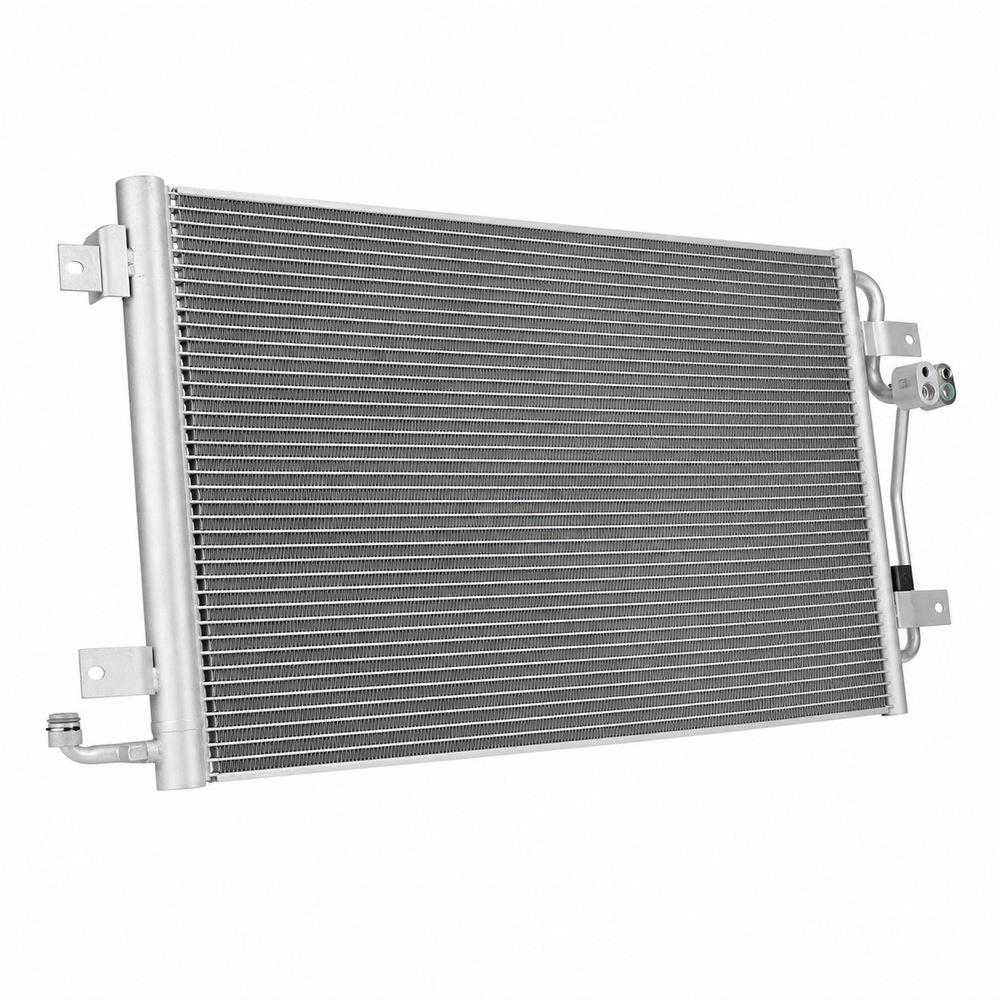

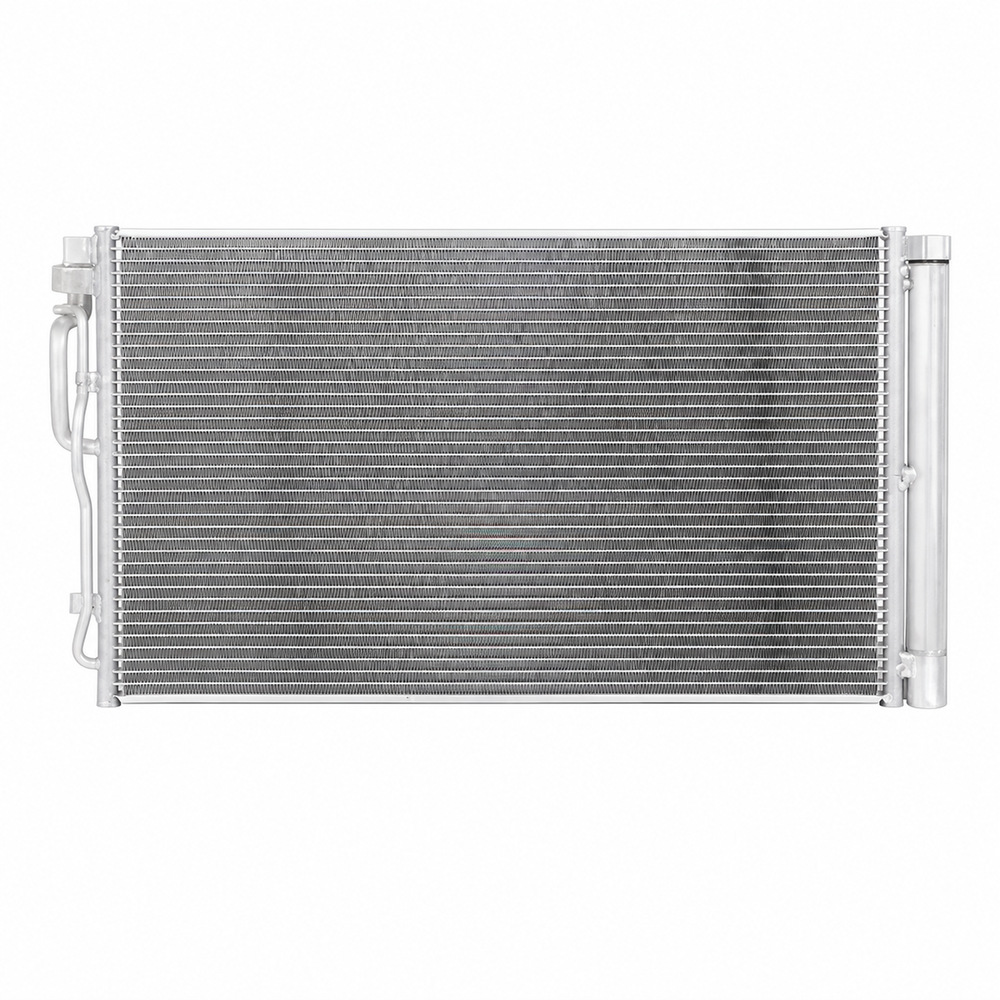

97606-BV200 A/C Condenser Assembly for HYUNDAI Creta
Product: A/C Condenser Assembly
Primary OE: 97606-BV200
Item code: HY01009-143
Cross-reference numbers:
No additional interchange number is listed in the source record.
Brand: HYUNDAI
Model: Creta
Function: Provides the heat-rejection stage needed between the compressor outlet and the remaining A/C circuit.
Supply: Supports distributor trials, repeat orders and international procurement projects.
Fitment check: Compare both condenser faces, pipe ends, mounting tabs and receiver-drier arrangement.
Quality note: Pre-dispatch review may document visible condition, protected fittings and carton integrity.
97606-BV200 A/C Condenser Assembly for HYUNDAI Creta
For replacement and wholesale enquiries, 97606-BV200 is the principal reference for this HYUNDAI Creta condenser. Catalogue code HY01009-143 helps prevent confusion with visually similar versions.
The condenser is both a pressure vessel and a heat exchanger. Selection therefore requires more than a similar outline: port style, bracket location, dryer arrangement and core size must also agree.
Product Technical Specifications
| Component | A/C condenser assembly |
|---|---|
| Primary OE reference | 97606-BV200 |
| Cross-reference numbers | No additional reference listed |
| Vehicle brand | HYUNDAI |
| Model reference | Creta |
| Yongshang Auto SKU | HY01009-143 |
| Supply position | Aftermarket wholesale replacement |
Cooling-Circuit Technical Notes
As the front heat exchanger in the climate-control circuit, the condenser must combine low airflow restriction with sound refrigerant passages. Bent fins or internal contamination can reduce cooling capacity.
Normal cooling depends on the complete system: condenser airflow, fan operation, compressor condition, refrigerant charge, clean lines and properly sealed connections must work together.
Checks for Accurate Selection
Confirm 97606-BV200 against the removed HYUNDAI Creta component and the vehicle record. Check port positions, mounting tabs, core thickness and any integrated dryer before approving the order.
- Confirm the primary number and each usable cross-reference.
- Match vehicle year, engine, market and production period.
- Compare core width, height, thickness and overall frame size.
- Check fittings, pipe angles, brackets and dryer configuration.
- Review original-part photographs when application data is incomplete.
Professional Installation and System Protection
Do not force misaligned pipes into the fittings. Renew O-rings with the correct compatible material, torque joints to specification and verify the system for leaks after charging.
Supply Quality Review
Export preparation can combine appearance inspection with part-number labeling, corner protection and carton checks for safer distribution.
Ordering Specification Notes
For a controlled HYUNDAI Creta sourcing decision, combine 97606-BV200 and HY01009-143 with vehicle year, engine, market and production date. Ask the installer to note any previous A/C conversion or front-end modification. A written comparison of core size, brackets and pipe ends helps purchasing teams separate genuine interchange evidence from a merely similar product appearance.
Wholesale and Procurement Information
For an export proposal, identify 97606-BV200, item HY01009-143, shipment terms and packing preference. Technical confirmation should be completed before commercial approval.
Frequently Asked Questions
Why is VIN or production-date checking important for HYUNDAI Creta?
A manufacturer may revise fittings or dryer layout during a model run, even when the vehicle name remains unchanged.
Can bent fins affect condenser operation?
Extensive fin damage or blockage can reduce airflow and heat transfer; the complete front cooling stack should be inspected.
What happens if compressor debris is present?
Contamination can circulate through the A/C system. Follow the repair manual for flushing and replacement of affected components.
Does Yongshang Auto support trial quantities of 97606-BV200?
Sample enquiries are welcome. Availability, inspection and packing can be confirmed against SKU HY01009-143.
How are bulk-order details controlled?
The OE, SKU, quantity, labeling and carton requirements are recorded together before production or dispatch.
Request a 97606-BV200 Condenser Quote
Contact Yongshang Auto with 97606-BV200, HY01009-143, quantity and delivery country for a product review and wholesale proposal for HYUNDAI Creta.
Fitment notice: OE and model references support identification but do not replace VIN-based catalogue checks or comparison with the original condenser.
