97111-1W100 Blower Motor for KIA Rio
Primary OE reference: 97111-1W100
Cross-reference 1: 971132P700
Cross-reference 2: 971263Z900
Cross-reference 3: 1D000
Cross-reference 4: 34374
Product type: Automotive HVAC Blower Motor
Applicable vehicle: KIA Rio
Brand: KIA
Model: Rio
Electrical match: Confirm voltage, plug key and terminal count against the original motor
Motor interface: Compare flange contour, screw spacing and motor-body depth
Fan wheel check: Verify wheel diameter, height and rotation direction before ordering
HVAC function: Cabin airflow depends on the motor, fan wheel, resistor or controller, wiring and an unobstructed filter working together.
Installation guidance: Inspect the resistor or electronic controller and connector terminals if the original fault involved intermittent speed operation.
Fitment basis: Check voltage, rotation direction, cable exit and the position of every locating tab against the existing blower.
Quotation information: Provide the OE number, vehicle application, quantity and delivery country
97111-1W100 Automotive Blower Motor Overview

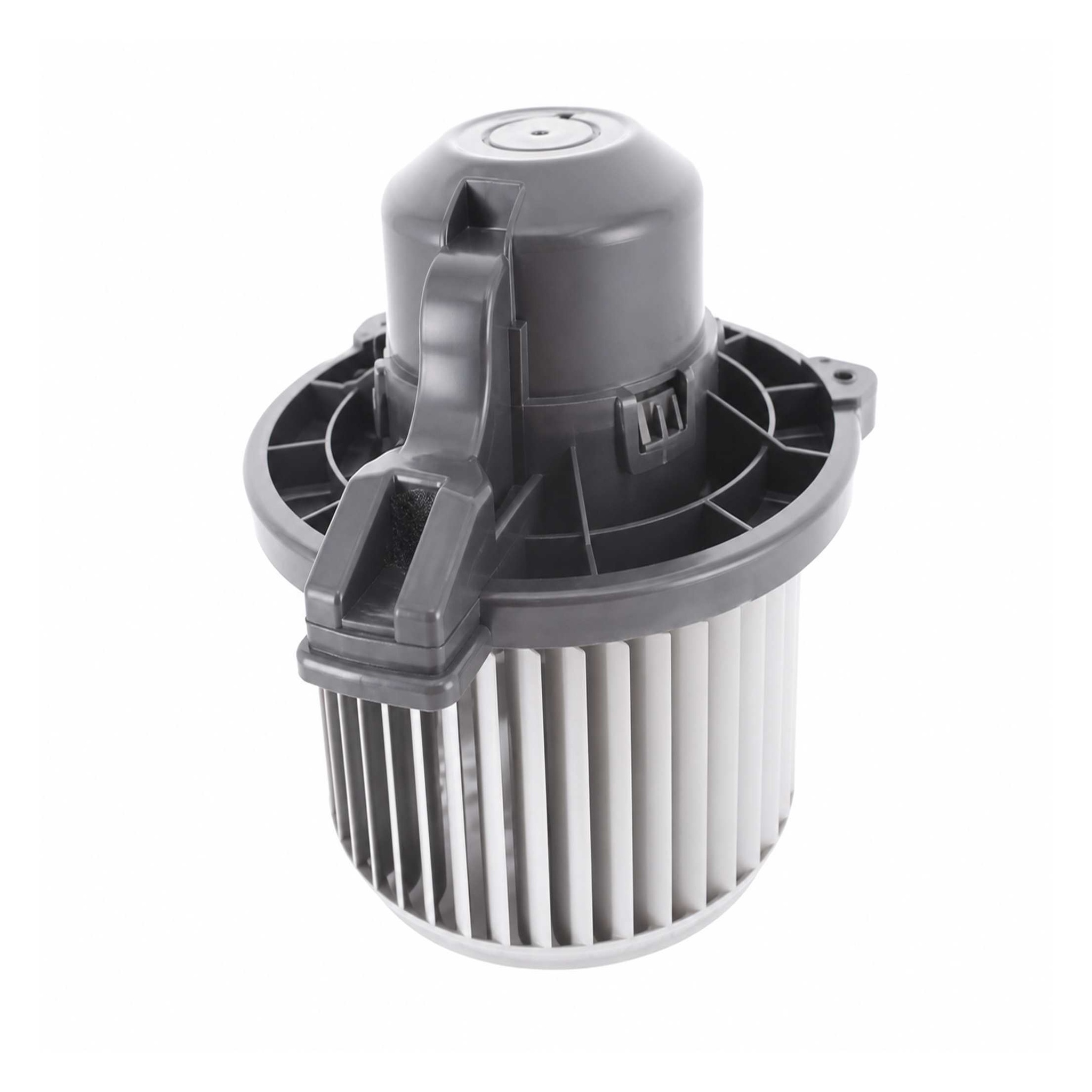

The photographed motor-and-wheel unit is indexed by 97111-1W100 to support OE-number comparison before purchase.
For catalogue item 6201-014, Cabin 97111-1W100 airflow depends on the 97111-1W100 motor, fan wheel, resistor or controller, wiring and an unobstructed filter working together. Use 6201-014 when comparing this 97111-1W100 airflow configuration.
OE Reference and Application
The primary catalogue number is 97111-1W100. The recorded application is KIA Rio. For 6201-014, Check voltage, rotation direction, cable exit and the position of every locating tab against the existing blower. Record 6201-014 with the approved OE reference.
HVAC Interface and 97111-1W100 installation
During work on 6201-014, Inspect the resistor or electronic controller and connector terminals if the original fault involved intermittent speed operation. Recheck 6201-014 before the lower trim is closed.
For item 6201-014, confirm that the 97111-1W100 centrifugal wheel clears its housing and that the 6201-014 connector lock engages without force. After seating 6201-014, test the available fan speeds and listen for rubbing, imbalance or intermittent electrical operation linked to 6201-014.
Automotive HVAC Blower Motor Specifications
| Product type | Automotive HVAC Blower Motor |
|---|---|
| Primary OE reference | 97111-1W100 |
| Cross-reference numbers | 971132P700 / 971263Z900 / 1D000 / 34374 |
| Vehicle brand | KIA |
| Vehicle model | Rio |
| Model year | Confirm by OE reference |
| 97111-1W100 installation area | Cabin HVAC / heater blower housing |
| Main interfaces | Electrical connector, mounting flange and centrifugal fan wheel |
| Fitment method | OE-number and physical-geometry comparison |
Quality and Trade Supply
For product 6201-014, Product preparation focuses on clean fan-wheel geometry, intact terminals and protection of projecting plastic features. The 6201-014 record remains the picking reference.
For trade item 6201-014, Export buyers should state quantity and delivery country together with any pallet, carton or private-label requirement. Keep 6201-014 on the packing instruction.
Frequently Asked Questions
How should item 6201-014 and blower number 97111-1W100 be verified?
Match 6201-014 to the complete 97111-1W100 marking, then compare the 6201-014 plug, terminal count, mounting flange and wheel dimensions with the removed KIA unit.
Can 6201-014 have more than one vehicle-side blower configuration?
Yes. KIA production changes can affect 6201-014; confirm steering position, climate-control specification and the original 6201-014 geometry before approval.
What circuit checks are useful when 6201-014 does not operate?
For 6201-014, inspect the fuse, relay, speed resistor or controller, wiring and ground before replacing the 6201-014 motor again.
Which details should accompany a wholesale request for 6201-014?
Provide item 6201-014, OE 97111-1W100, the stated application, quantity and destination; add 6201-014 carton or private-label requirements separately.
How can noise be avoided after fitting 6201-014?
Clear debris from the air inlet, check that the 6201-014 wheel turns freely, seat the 6201-014 flange evenly and keep wiring away from the impeller.
Request a quote for 6201-014: Send 97111-1W100, the 6201-014 application and required quantity for a fitment and supply review.
