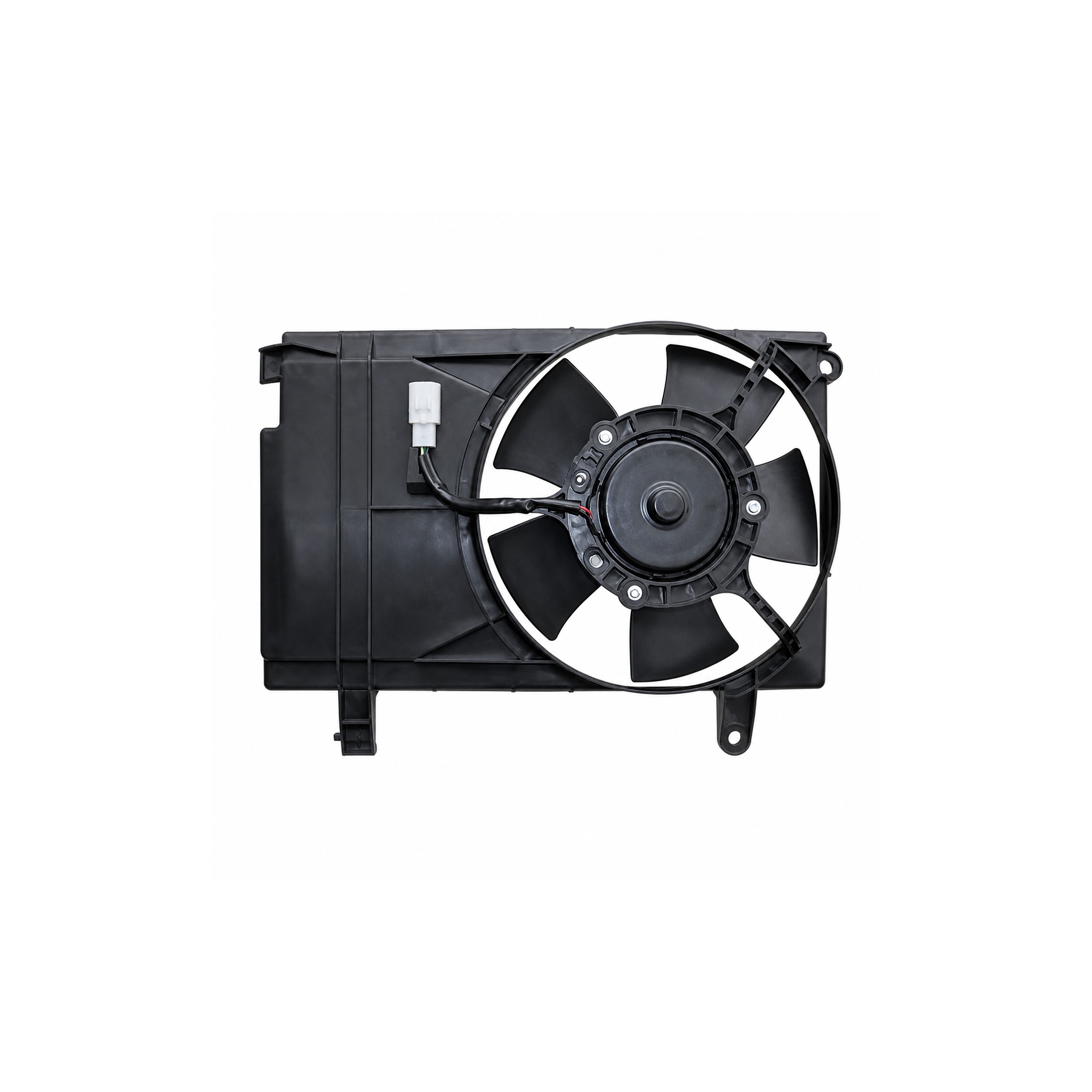

96536520 Radiator Fan for CHEVROLET
Replacement Part: Radiator Fan Assembly
Supplier Product No.: 6109-006
Primary OE Reference: 96536520
Alternative References:
93740674
93740543
GM3115183
96536581
5490768
93744896
9020557
CH3115183
CL-4221B
Fitment Catalogue: CHEVROLET
Configuration: Supplied in the photographed product configuration
Selection Features: Confirm left/right placement where two fans are installed and note whether the required part is for the radiator or condenser side.
Pre-Shipment Check: Fitment approval combines catalogue data with image comparison; any mismatch in plug or mounting geometry should be resolved before dispatch.
MOQ: From 5 pieces
Packaging: Neutral or customized packaging available
Typical Delivery: 30–45 days, subject to quantity and destination
Fitment Check: Request a fitment review whenever the original CHEVROLET fan differs from the supplied product images.
CHEVROLET Radiator Fan Reference 96536520
For workshop and distribution enquiries involving CHEVROLET, 96536520 provides the principal reference for this fan assembly.
At low road speed, forced airflow helps the radiator release heat when natural air movement through the grille is limited.
Part-Reference Snapshot
- Component: Electric radiator fan assembly
- Primary OE reference: 96536520
- Cross-reference numbers: 93740674 / 93740543 / GM3115183 / 96536581 / 5490768 / 93744896 / 9020557 / CH3115183 / CL-4221B
- Listed vehicle: CHEVROLET
- YoonShan product number: 6109-006
- Supplied form: Match the product photographs supplied on this page
Before You Place an Order
Record the engine, model year and market version, then measure the mounting span and connector position against the supplied images.
Before quotation, photograph the complete removed unit on both faces and include close-ups of the plug, motor label and locating tabs.
Engine Cooling Context
The 96536520-referenced fan supplements ambient airflow around the radiator and condenser, particularly when the listed CHEVROLET vehicle is stationary.
Consistent airflow across the radiator core helps the wider cooling system manage heat during prolonged low-speed operation.
Product and Fitment Verification
Market and trim variations may alter cooling hardware, so production date and original connector details remain important.
Check the shroud outline and blade clearance against surrounding radiator components so the 96536520 replacement can rotate without contact.
Automotive Replacement Part Specifications
| Product type | Radiator Fan Assembly |
|---|---|
| Primary OE reference | 96536520 |
| Cross-reference numbers | 93740674 / 93740543 / GM3115183 / 96536581 / 5490768 / 93744896 / 9020557 / CH3115183 / CL-4221B |
| Internal item code | 6109-006 |
| Vehicle brand | CHEVROLET |
| Vehicle model | Not specified |
| Model year | Confirm by OE reference |
| Installation position | Radiator / front cooling-module area |
| Product function | Provides forced airflow through the radiator area to support heat exchange at low vehicle speed |
Packaging, MOQ and Delivery
Product labels can show the agreed reference data, while carton marks are prepared to suit distributor handling needs.
Batch cartons can be labelled with the confirmed SKU and OE reference to simplify warehouse receiving and distribution.
Buyer Questions
How can I confirm 96536520 for my vehicle?
Compare 96536520, the connector, blade diameter, rotation direction, shroud outline and mounting points with the original CHEVROLET assembly.
What information should accompany a quotation?
Send the OE number, YoonShan item 6109-006, vehicle details, quantity, country and packaging request.
Can packaging be customized?
Yes. Artwork and carton requirements for 96536520 can be reviewed after the 6109-006 order quantity and destination are confirmed.
What is the usual minimum order quantity?
Wholesale enquiries can normally begin from 5 pieces, subject to the current supply condition.
Why should the complete cooling system be checked?
A fan complaint on CHEVROLET may also involve wiring, relays, sensors, coolant circulation or blocked heat-exchanger fins.
Request a Quote: Confirm 96536520 against the listing images, then request trade pricing.
