92304-1Y000 Fender Light for KIA Picanto JA 2017 Right
Primary OE reference: 92304-1Y000
Product type: Fender Light / Side Marker Lamp
Applicable vehicle: KIA Picanto JA 2017
Installation position: Front fender / side marker opening
Side / orientation: Right
Brand: KIA
Model: Picanto JA
Vehicle year: 2017
Physical comparison: Review the exposed face and rear support geometry as one assembly rather than selecting by colour alone.
Lighting function: This repeater extends turn-signal recognition along the vehicle side while completing the fender aperture.
Electrical check: Use a low-current functional test to verify the repeater operates with the selected vehicle-side circuit.
Installation guidance: Complete installation by checking lens orientation, panel gap and repeater operation in one inspection.
Selection context: Facelift and regional specifications may change the fender opening even when the vehicle name is unchanged.
Product handling: Retain the product label until fitment and electrical configuration have been verified.
Wholesale enquiry: A consolidated offer can separate powered lamps, passive markers and colour variants into clear order lines.
92304-1Y000 Fender Light Overview

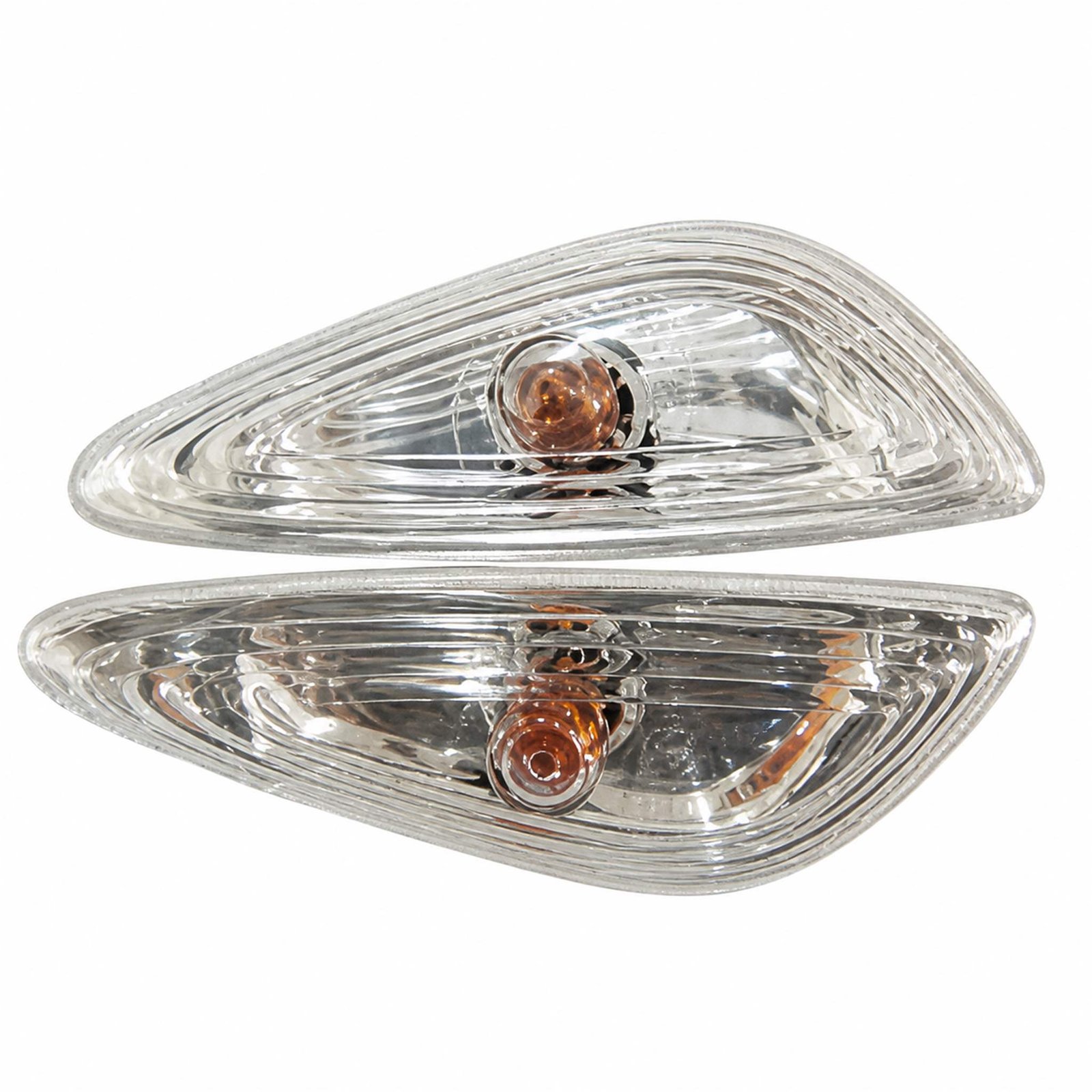

This vehicle-specific fender light is listed for KIA Picanto JA 2017 at the right side-marker position. The photographed lens, rear housing and electrical interface define the supplied configuration.
Use the fender opening dimensions when catalogue descriptions list several applications for one production year. Once seated, the side marker should preserve visibility while remaining level with the adjoining bodywork.
Vehicle Application and Fender Position
Inspect the fender cut-out from behind, then match the lamp shoulder and retention groove to that opening.
For KIA Picanto JA 2017, confirm the fender aperture, production period and stated side before ordering. The visible lens must align with the surrounding body surface while the concealed supports match the factory opening.
Lens, Housing and Electrical Interface
Depending on vehicle specification, the assembly may operate as a side repeater, marker lamp or combined signal unit.
Check polarity and connector engagement on powered versions without modifying the factory harness. Lens colour and reflector texture should also be compared under neutral lighting.
Installation and Function Check
After clipping the lamp in place, pull lightly at the housing edge to confirm positive retention.
Photograph any mismatch before removing labels so the application and supplied configuration remain traceable. After installation, operate the relevant marker or indicator circuit and inspect panel alignment from several angles.
Automotive Component Specifications
| Product type | Fender Light / Side Marker Lamp |
|---|---|
| Primary OE reference | 92304-1Y000 |
| Cross-reference numbers | 92304-1Y000 |
| Internal item code | KA04005-010 |
| Vehicle brand | KIA |
| Vehicle model | Picanto JA |
| Model year | 2017 |
| Installation position | Front fender / side marker opening |
| Side / orientation | Right |
Wholesale Supply and Packing
State the destination and carton-marking format when the order combines several vehicle applications. Each optical face should be isolated from loose hardware, while projecting tabs and connectors require shaped support inside the carton.
Frequently Asked Questions
How should 92304-1Y000 compatibility be confirmed?
Match the OE reference, KIA Picanto JA production year, installation side, connector and hidden mounting geometry.
Can left and right fender lamps be exchanged?
Do not assume interchangeability. Compare the lens angle, clip direction and connector exit for the required side.
What should be checked before installation?
Check whether the original lens wraps toward the door or bumper and match that directional profile. Where a bulb holder is used, compare its twist-lock pattern and contact layout with the original assembly.
What test is recommended after fitting?
Finish with a visual alignment check and an electrical function test where wiring is present.
Which details are needed for a wholesale quote?
Quantity planning is more accurate when the enquiry distinguishes repair demand from left-right kit supply.
Need a quotation? Contact Yongshang Auto with the OE reference, vehicle details, side, quantity and destination.
