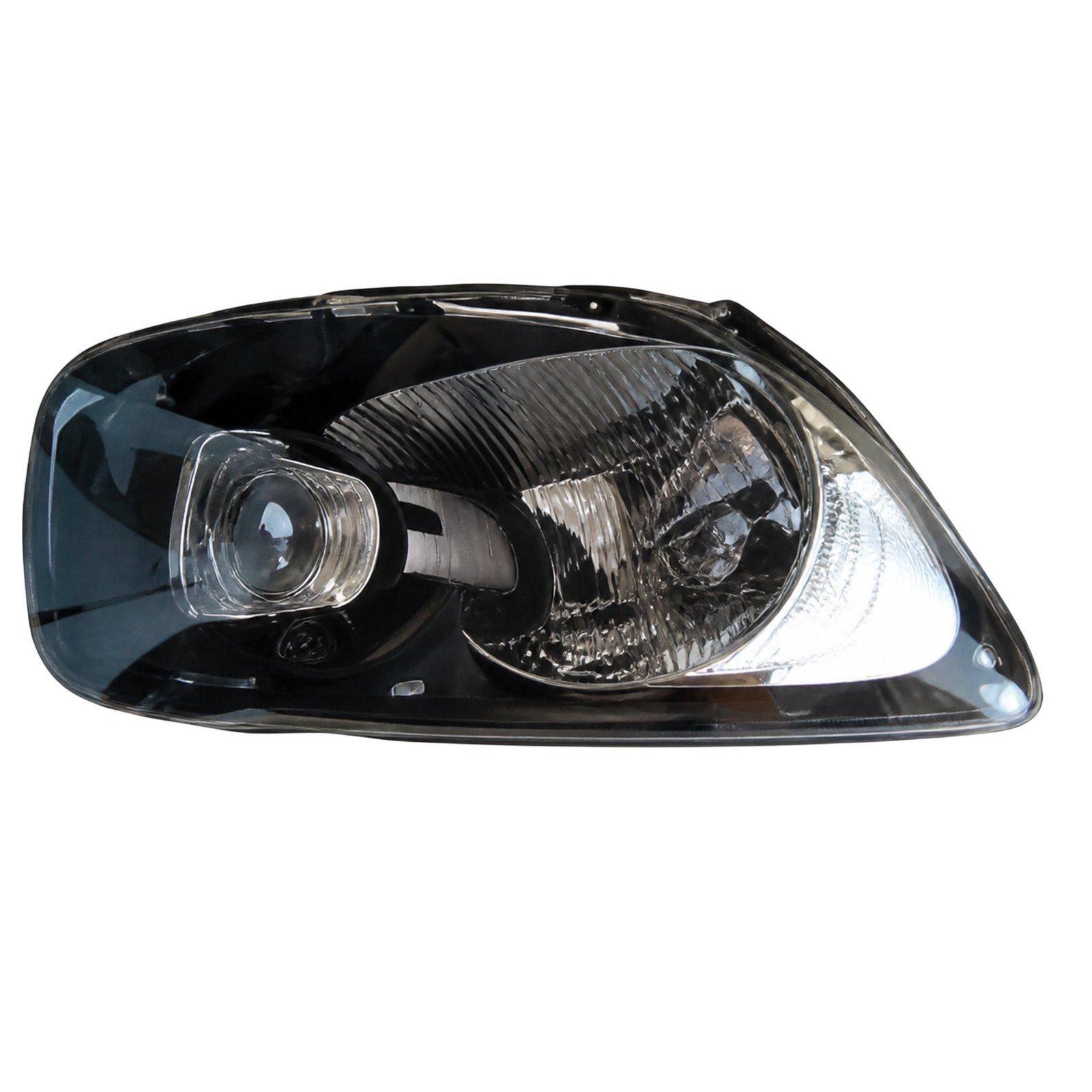

92102-1Y500 Head Light for KIA Picanto 2014 Right
Primary OE reference: 92102-1Y500
Cross-reference number 1: 92102-1Y500
Product type: Head Light Assembly
Applicable vehicle: KIA Picanto 2014
Installation position: Right front headlamp position
Brand: KIA
Model: Picanto
Vehicle year: 2014
Lighting configuration: LED lighting
Housing comparison: Lay the replacement beside the removed unit and compare overall depth, edge returns, vent locations and rear-cover clearance.
Optical system: Verify the number and position of optical chambers and validate whether daytime lighting is integrated into the main housing.
Electrical interface: Do not use connector colour as the only selection point; terminal geometry, locking tabs and installed modules must also agree.
Mounting points: Verify mounting-ear spacing and support height against the removed lamp, including any hidden guide pin behind the bumper or grille edge.
Installation guidance: Use recommended workshop procedures for removal and refitting, then validate that vibration, panel pressure and cable routing do not stress the housing.
Wholesale packing: For wholesale supply, the lens should be isolated from carton pressure while the rear shell, adjusters and projecting mounting tabs are supported.
Application-specific focus: For the right KIA Picanto application with led lighting, verify the number and position of optical chambers and validate whether daytime lighting is integrated into the main housing.
Head Light Assembly Overview
The listed unit is designed for the stated vehicle position and should be matched to the removed headlamp before installation. It is catalogued under OE reference 92102-1Y500 for KIA Picanto 2014, with the right position identified in the source record.
The external lens, internal optical layout, rear casing and attachment points should be reviewed as one system. A close-looking lamp from another trim or market can differ behind the body opening.
Lighting Function and Optical Configuration
Verify the number and position of optical chambers and verify whether daytime lighting is integrated into the main housing.
For the Picanto application, verify the lighting package fitted to the vehicle. Standard, projector, xenon and LED versions can use different internal modules, beam controls and daytime-light signatures.
Vehicle Fitment and Body Interface
Verify the inner and outer corners of the housing as well as the gap to adjacent panels; these points often separate nearby variants.
Verify mounting-ear spacing and support height against the removed lamp, including any hidden guide pin behind the bumper or grille edge.
Connector and Control Hardware
Verify compatibility with the vehicle’s lighting controls, especially where automatic levelling or daytime-running-light functions are fitted.
Verify the supply scope shown in the product photographs. Bulbs, rear caps, levelling motors, ballasts, LED drivers and auxiliary brackets may vary between versions and should be checked separately.
Installation and Beam Alignment
After the housing is secured, reconnect the lighting circuit, test every function and carry out professional beam aiming before road use.
A qualified workshop should review surrounding supports for damage, complete the electrical tests and set the headlamp beam according to local requirements after installation.
Automotive Lighting Product Specifications
| Product type | Head Light Assembly |
|---|---|
| Primary OE reference | 92102-1Y500 |
| Cross-reference numbers | 92102-1Y500 |
| Internal item code | KA04001-092 |
| Vehicle brand | KIA |
| Vehicle model | Picanto |
| Model year | 2014 |
| Installation position | Right front |
| Lighting configuration | LED lighting |
Wholesale Supply and Protective Packing
Carton protection should prevent abrasion on the lens and impact loading on brackets, caps, adjusters or exposed control modules.
When requesting a quotation, provide the vehicle application, production period, required side, lighting technology, quantity and destination. Original-lamp photographs are useful when several versions exist.
Application-Specific Comparison Notes
For this right KIA Picanto headlamp, the led lighting specification should be assessed together with the 2014 body application. Use the original assembly to verify the shell profile, upper support shape and clearance around nearby trim before installation.
The right Picanto lighting package should remain the reference during electrical review. Do not use connector colour as the only selection point; terminal geometry, locking tabs and installed modules must also agree.
When fitting the KIA Picanto unit at the right front position, preserve even body gaps and the intended beam orientation. Keep wiring clear of hot or moving components, then test low beam, high beam, indicator and daytime lighting where applicable.
Frequently Asked Questions
How should the lamp be protected during shipping?
The lens needs isolation from carton pressure, while the rear housing and projecting tabs require stable internal support.
Why must the rear housing be compared?
A similar lens can conceal a different casing depth, cap arrangement or bracket offset, preventing correct seating in the body opening.
How can connector compatibility be reviewed?
Review keying, terminal count, latch direction and wire exit, then determine any required ballast, driver or levelling motor.
Are bulbs and electronic modules included?
The included components are those external in the product photographs. Check bulbs, caps, motors, ballasts and LED modules separately.
When is professional beam aiming required?
Beam alignment should be checked after the unit is secured and every lighting function has been tested.
