8W0-809-907 Fuel Filler Door for 2016 Audi A4
Primary OE reference: 8W0 809 907
Cross-reference 1: 8W0 809 907
Product type: Fuel Filler Door
Applicable vehicle: 2016 AUDI A4
Installation position: Exterior rear quarter panel
Brand: AUDI
Model: A4
Vehicle year: 2016

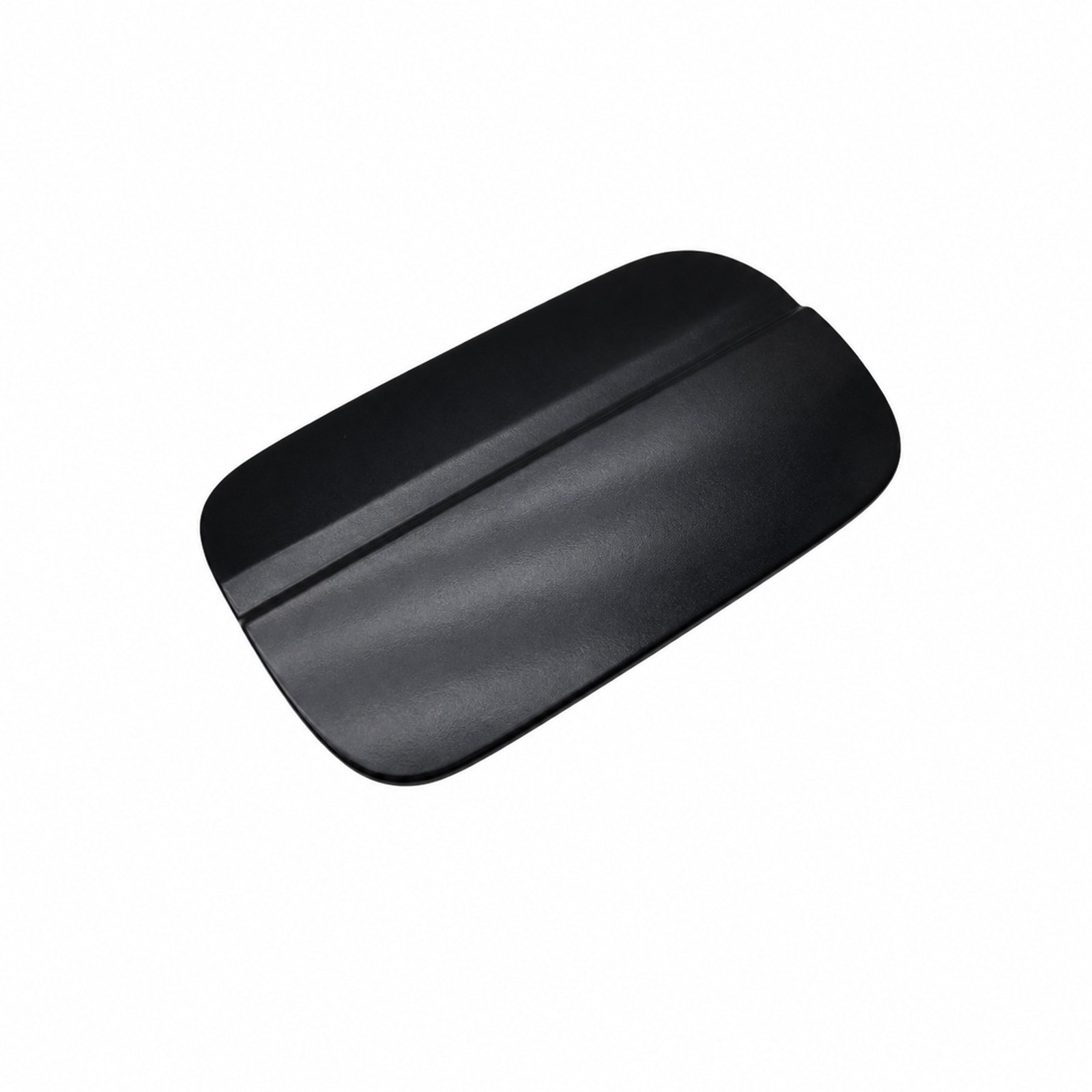

Visible identification: formed exterior flap prepared for the A4 quarter-panel opening
Surface appearance: Paint-ready or exterior finish as shown in the saved images
Fitment verification: Compare 8W0 809 907, body style, filler-opening contour and hinge or neck interface.
Installation preparation: Dry-fit before painting; verify hinge travel, latch engagement and perimeter gap.
Order information: Quote 8W0 809 907, SKU AD02039-002, vehicle configuration and quantity.
Wholesale note: State destination and packing needs; protect painted faces and hinge features separately.
8W0 809 907 Fuel Filler Door Overview
Component 8W0 809 907 serves the fuel-filling area of the 2016 AUDI A4. This fuel filler door should be matched by OE code and physical construction.
Product-Specific Application
The A4 version must follow the local body crease and sit level with the surrounding painted panel after latching.
Surface and Workshop Handling
Trial-fit 8W0 809 907 before colour coating. Mask the hinge, latch contact and clip seats, then allow the finish to cure before operating the door.

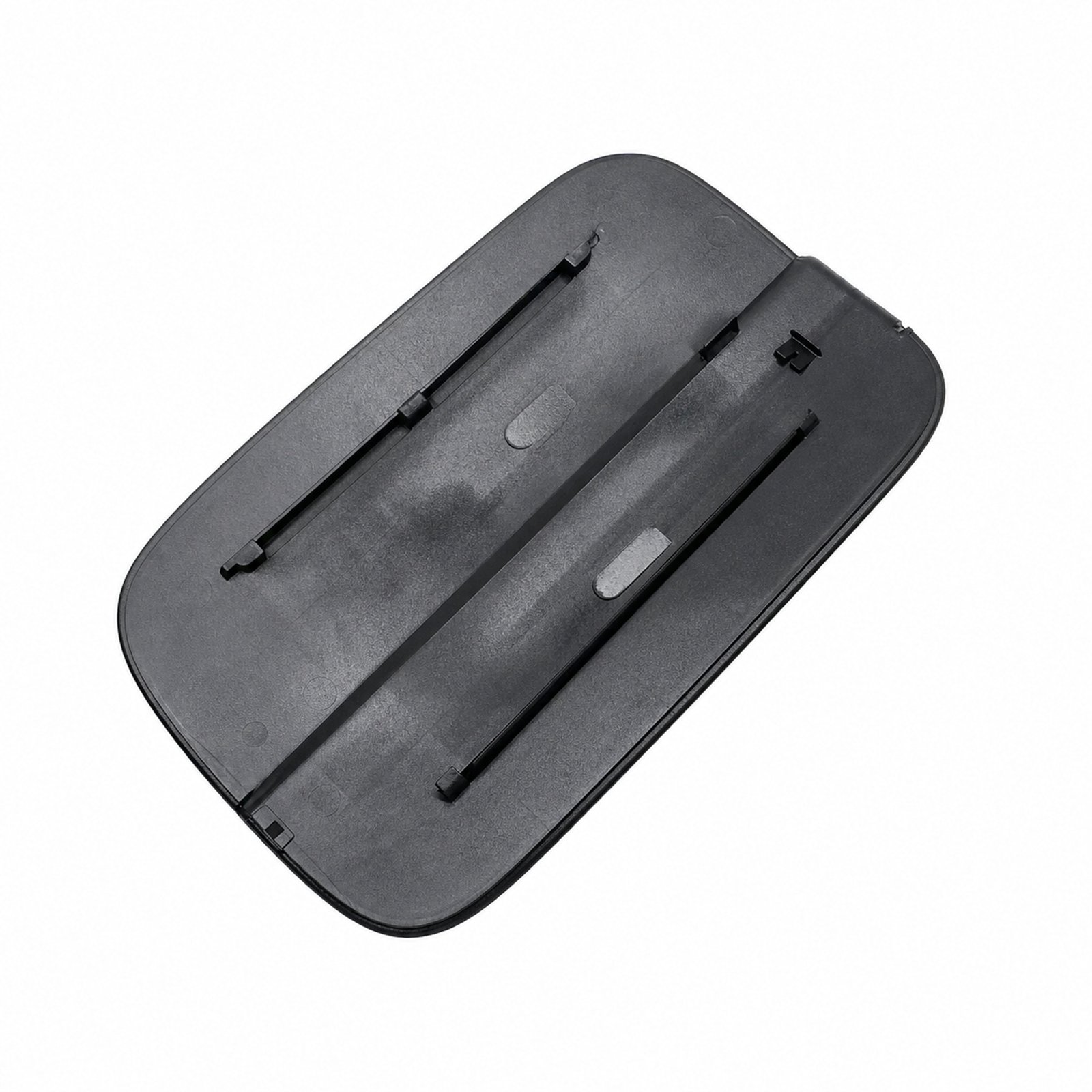

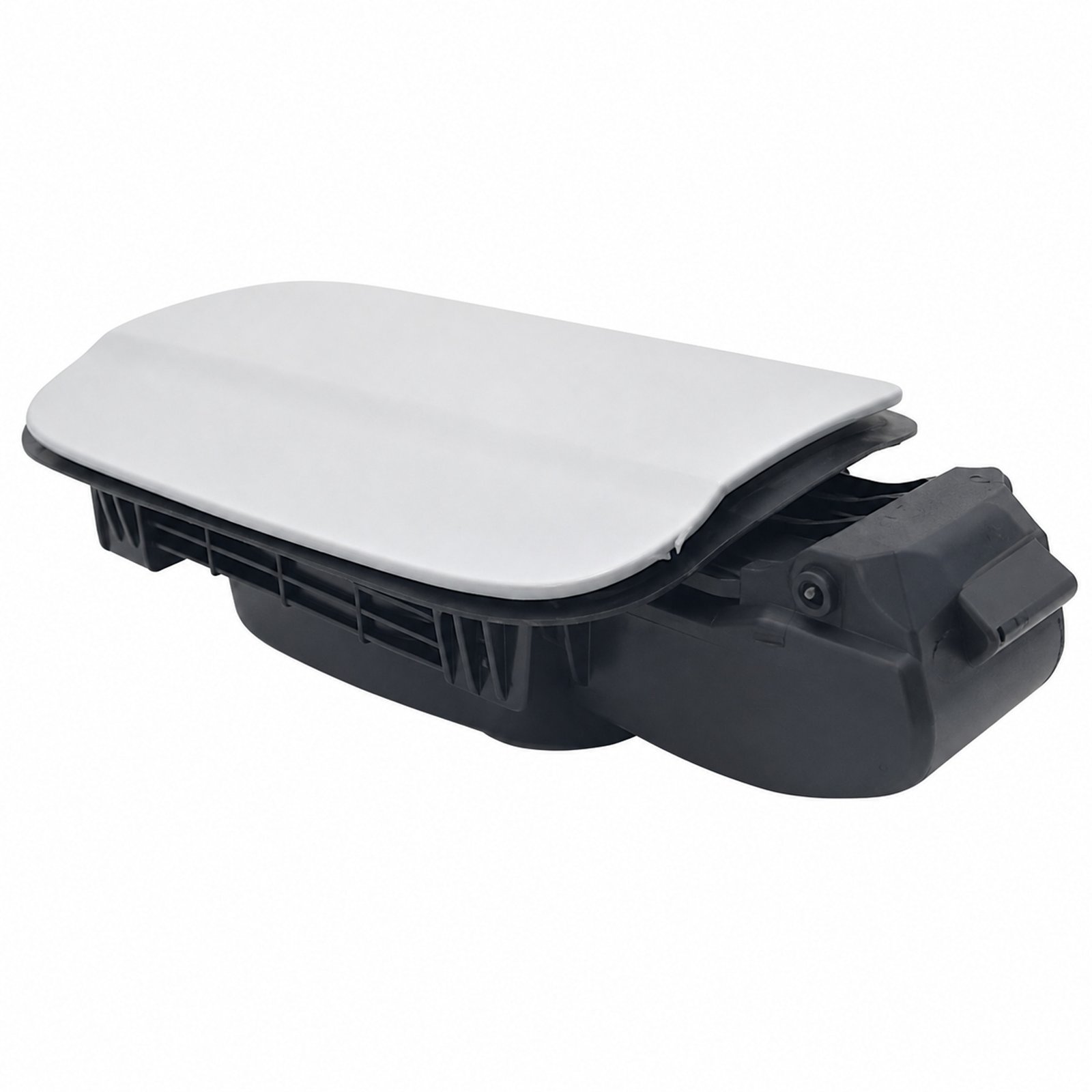

Hinge, Latch or Sealing Interface
Mount the hinge or carrier without forcing the quarter panel. Centre the flap in the opening, confirm free travel and verify that it latches flush on every closing cycle.
Related System Diagnosis
If 8W0 809 907 sits proud or rubs an edge, inspect the hinge carrier, stop, spring and surrounding body opening. Adjustment should correct alignment without bending the painted flap.
Stock Control for AD02039-002
Warehouse record AD02039-002 should carry 8W0 809 907, AUDI A4 2016 and the exterior rear quarter panel location on one label. During picking, compare AD02039-002 against formed exterior flap prepared for the A4 quarter-panel opening; during packing, isolate 8W0 809 907 from loose clips and metal fasteners. This product-specific identification prevents a visually close fuel component from being assigned to the wrong body style.
Automotive Replacement Part Specifications
| Product type | Fuel Filler Door |
|---|---|
| Primary OE reference | 8W0 809 907 |
| Internal item code | AD02039-002 |
| Vehicle brand | AUDI |
| Model | A4 |
| Vehicle year | 2016 |
| Applicable vehicle | 2016 AUDI A4 |
| Installation position | Exterior rear quarter panel |
| Surface appearance | Paint-ready or exterior finish as shown in the saved images |
| Cross-reference numbers | 8W0 809 907 |
Trade Packing and Identification
Pack SKU AD02039-002 with the visible face or seal isolated from fasteners. Label exterior rear quarter panel, AUDI A4, 2016 and 8W0 809 907 so adjacent variants remain separated.
Frequently Asked Questions
What does 8W0 809 907 identify?
8W0 809 907 identifies the listed fuel filler door for 2016 AUDI A4.
Which dimensions and interfaces should be checked?
Compare formed exterior flap prepared for the A4 quarter-panel opening, the filler-opening profile and every concealed attachment point.
Is body style important?
Yes. Sedan, hatchback and SUV quarter panels may use different doors even within the same model family.
What should be tested after installation?
Check hinge travel, edge clearance, latch retention and flush alignment with the quarter panel.
What information supports a wholesale quotation?
Provide 8W0 809 907, SKU AD02039-002, vehicle body style, finish requirement, destination and quantity.
