8M51-F27936-EC Fuel Filler Door Assembly for 2009 Ford Focus
Primary OE reference: 8M51-F27936-EC
Cross-reference 1: 8M51-F27936-EC
Product type: Fuel Filler Door Assembly
Applicable vehicle: 2009 FORD Focus
Installation position: Exterior rear quarter panel
Brand: FORD
Model: Focus
Vehicle year: 2009

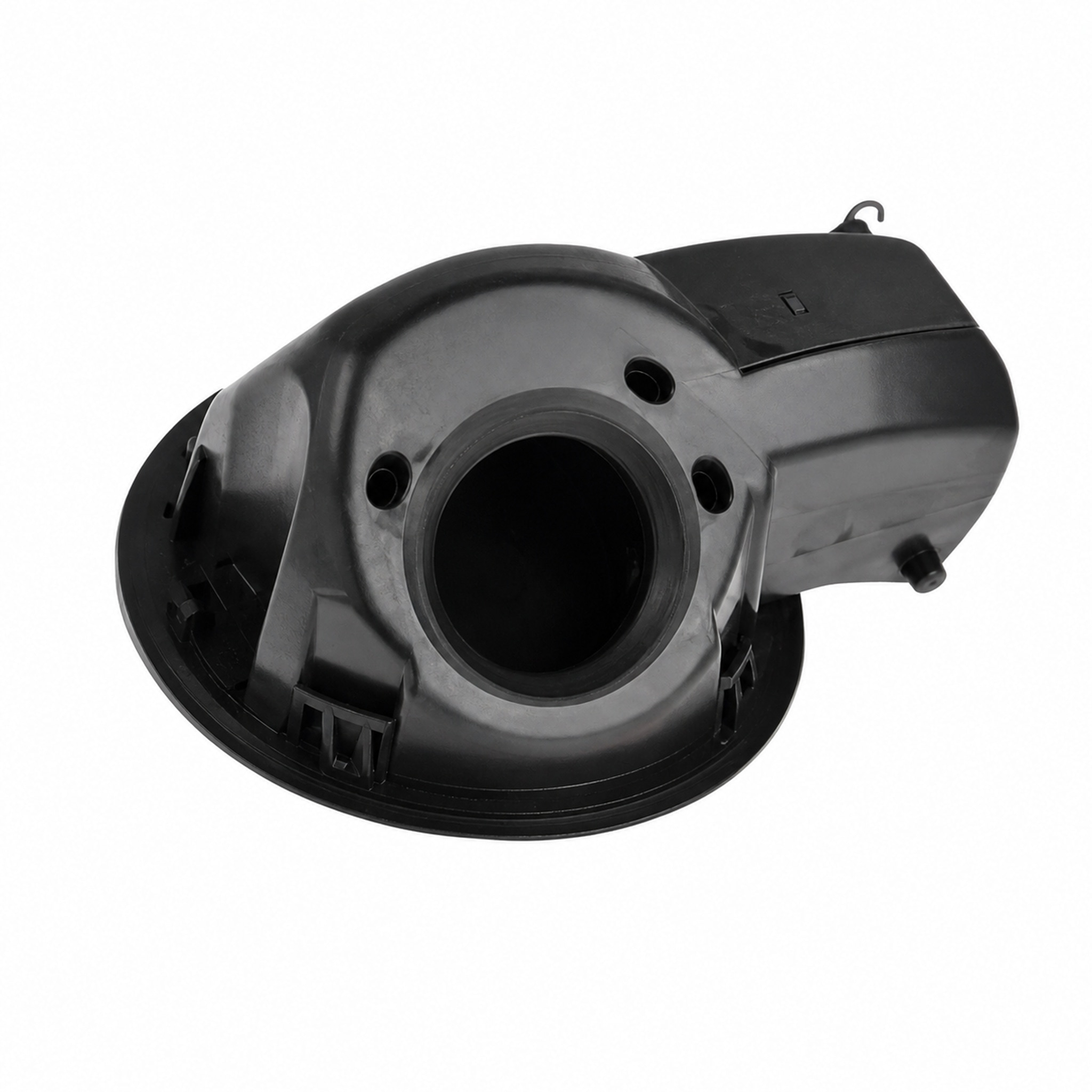

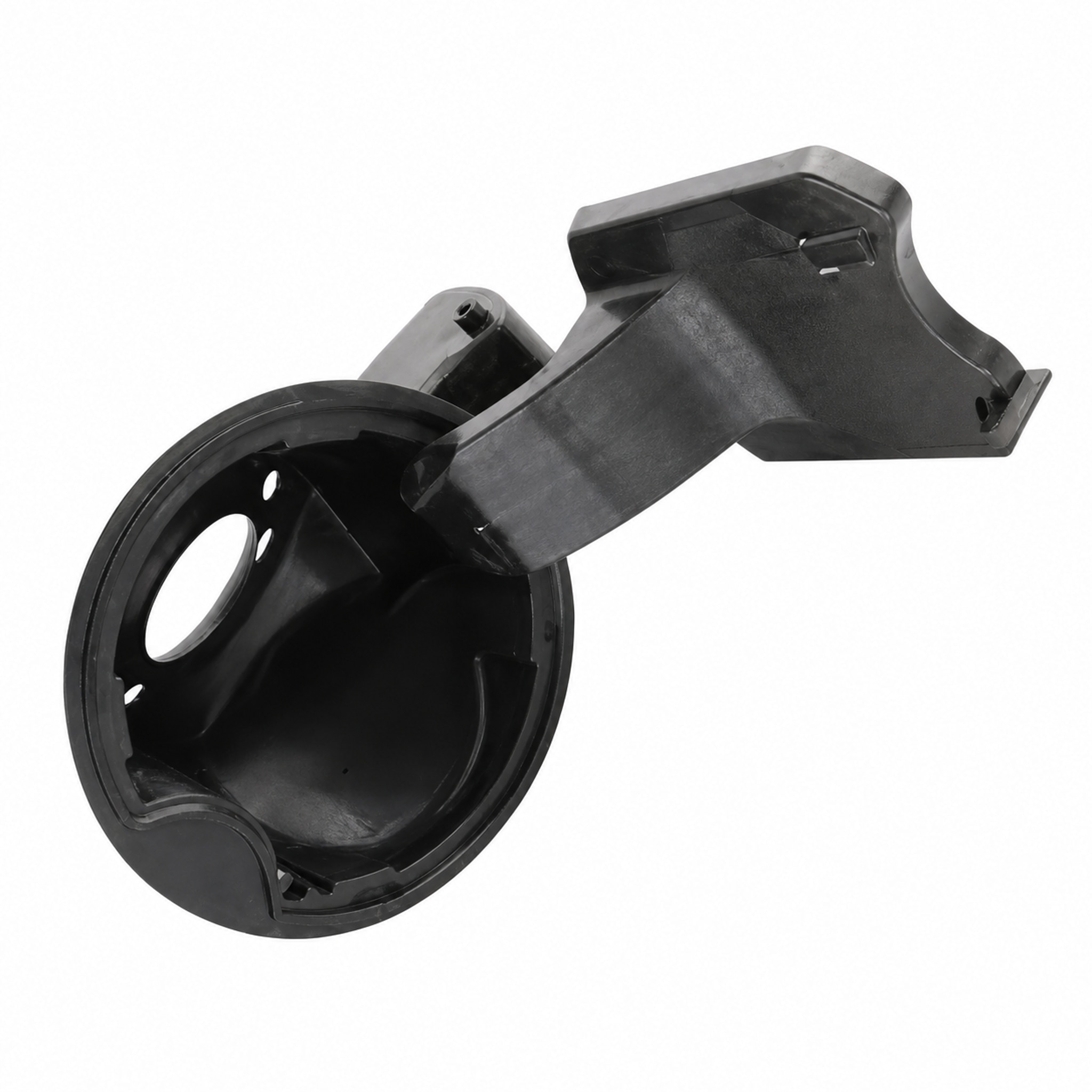

Visible identification: complete filler-door assembly with flap, carrier and operating hardware shown
Surface appearance: Paint-ready or exterior finish as shown in the saved images
Fitment verification: Compare 8M51-F27936-EC, body style, filler-opening contour and hinge or neck interface.
Installation preparation: Dry-fit before painting; verify hinge travel, latch engagement and perimeter gap.
Order information: Quote 8M51-F27936-EC, SKU FD02039-007, vehicle configuration and quantity.
Wholesale note: State destination and packing needs; protect painted faces and hinge features separately.
8M51-F27936-EC Fuel Filler Door Assembly Overview
8M51-F27936-EC is listed as a fuel filler door assembly for the 2009 FORD Focus. It protects the filler area and completes the visible body or sealing interface.
Product-Specific Application
Because this listing is an assembly, compare included hinge and closure components instead of assuming it is a bare painted lid.
Surface and Workshop Handling
Trial-fit 8M51-F27936-EC before colour coating. Mask the hinge, latch contact and clip seats, then allow the finish to cure before operating the door.
Hinge, Latch or Sealing Interface
Mount the hinge or carrier without forcing the quarter panel. Centre the flap in the opening, confirm free travel and verify that it latches flush on every closing cycle.
Related System Diagnosis
If 8M51-F27936-EC sits proud or rubs an edge, inspect the hinge carrier, stop, spring and surrounding body opening. Adjustment should correct alignment without bending the painted flap.
Stock Control for FD02039-007
Warehouse record FD02039-007 should carry 8M51-F27936-EC, FORD Focus 2009 and the exterior rear quarter panel location on one label. During picking, compare FD02039-007 against complete filler-door assembly with flap, carrier and operating hardware shown; during packing, isolate 8M51-F27936-EC from loose clips and metal fasteners. This product-specific identification prevents a visually close fuel component from being assigned to the wrong body style.
Automotive Replacement Part Specifications
| Product type | Fuel Filler Door Assembly |
|---|---|
| Primary OE reference | 8M51-F27936-EC |
| Internal item code | FD02039-007 |
| Vehicle brand | FORD |
| Model | Focus |
| Vehicle year | 2009 |
| Applicable vehicle | 2009 FORD Focus |
| Installation position | Exterior rear quarter panel |
| Surface appearance | Paint-ready or exterior finish as shown in the saved images |
| Cross-reference numbers | 8M51-F27936-EC |
Trade Packing and Identification
Pack SKU FD02039-007 with the visible face or seal isolated from fasteners. Label exterior rear quarter panel, FORD Focus, 2009 and 8M51-F27936-EC so adjacent variants remain separated.
Frequently Asked Questions
What does 8M51-F27936-EC identify?
8M51-F27936-EC identifies the listed fuel filler door assembly for 2009 FORD Focus.
Which dimensions and interfaces should be checked?
Compare complete filler-door assembly with flap, carrier and operating hardware shown, the filler-opening profile and every concealed attachment point.
Is body style important?
Yes. Sedan, hatchback and SUV quarter panels may use different doors even within the same model family.
What should be tested after installation?
Check hinge travel, edge clearance, latch retention and flush alignment with the quarter panel.
What information supports a wholesale quotation?
Provide 8M51-F27936-EC, SKU FD02039-007, vehicle body style, finish requirement, destination and quantity.
