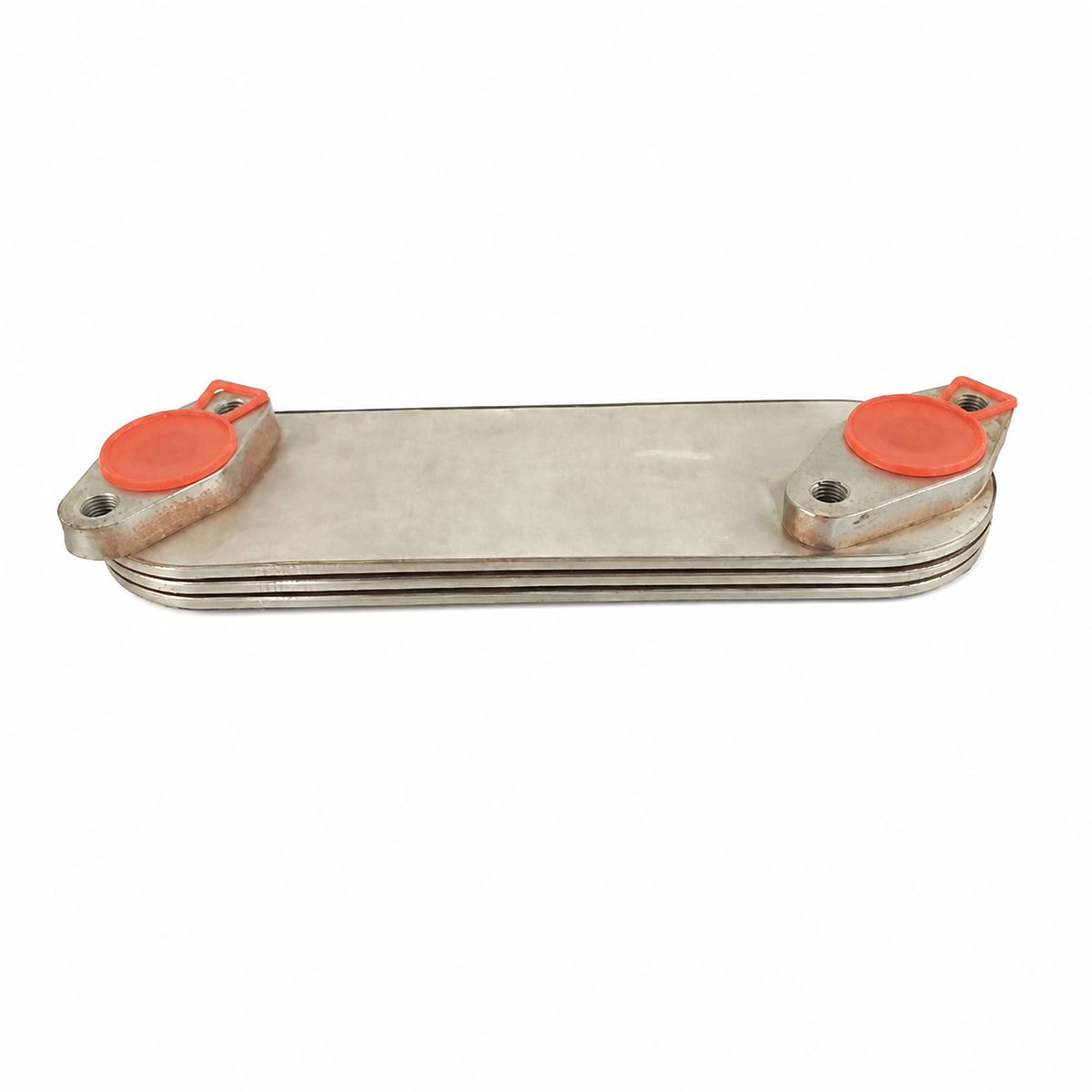

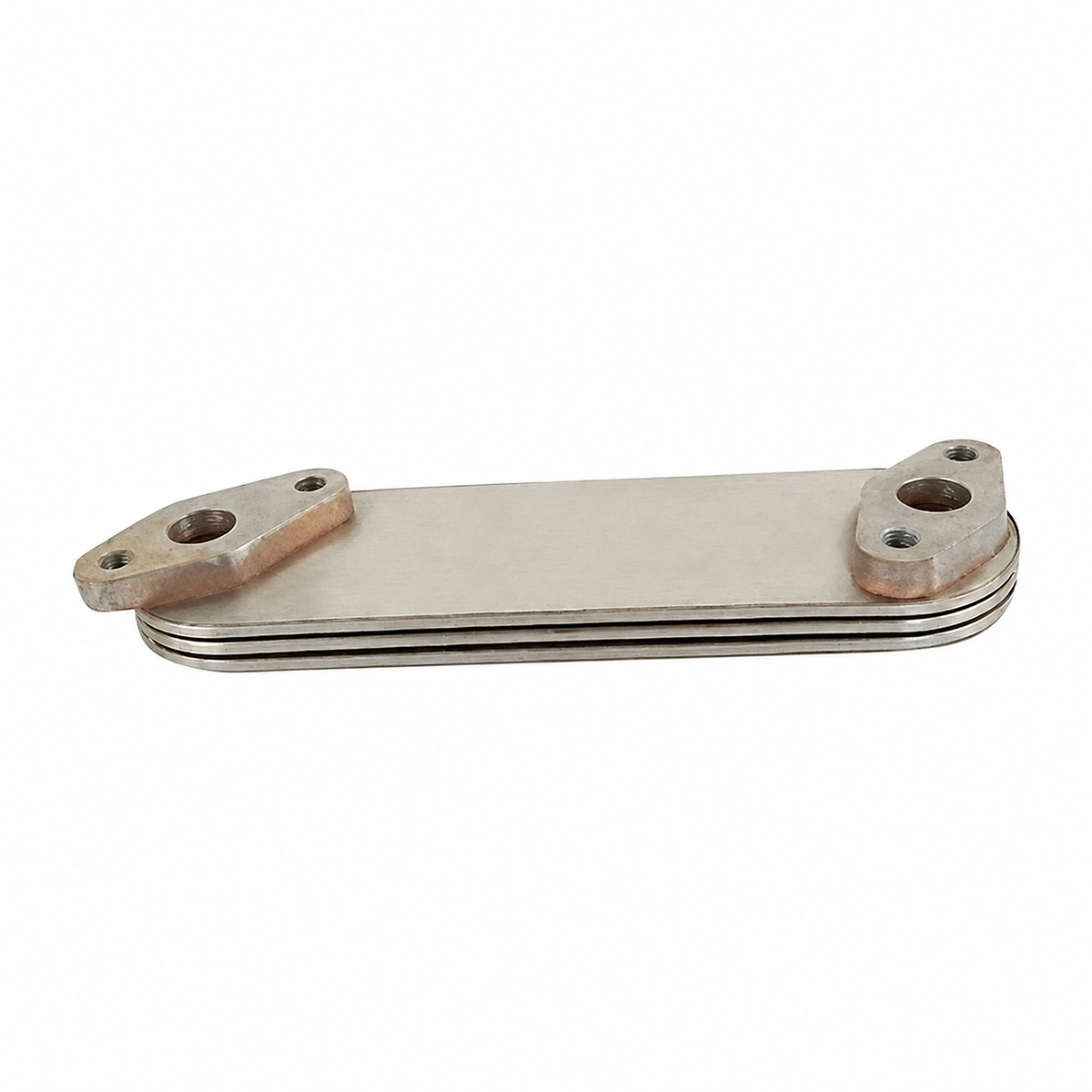

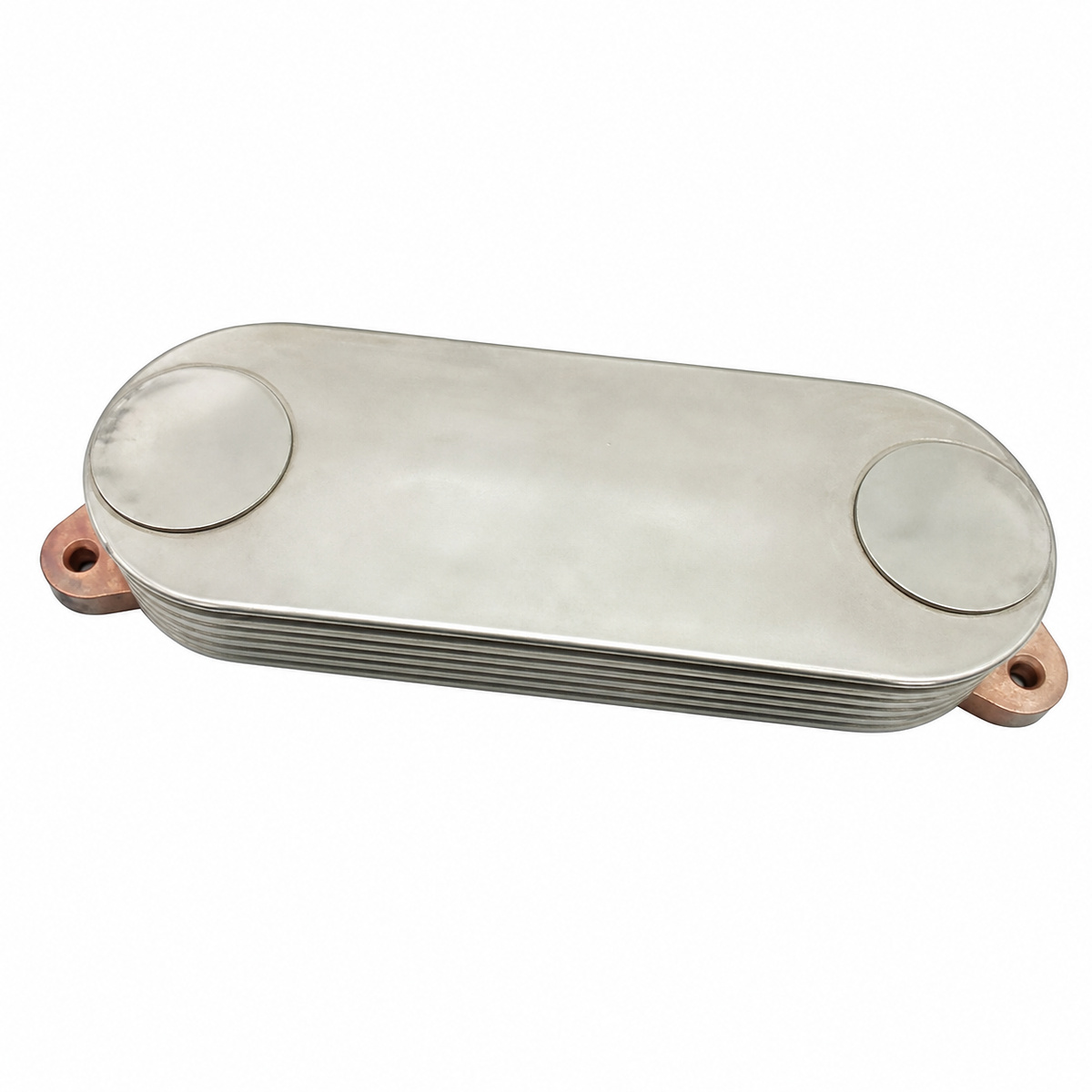

8980254020 Engine Oil Cooler for Isuzu
Product: Automotive Engine Oil Cooler
Primary OE: 8980254020
Item code: OC260727-002
Cross-reference numbers:
8980254020
Brand: ISUZU
Configuration: rectangular multi-plate oil-cooling element
Application reference: Isuzu D-MAX source application; verify the exact vehicle through VIN, engine data and removed-part comparison.
Inspection focus: plate-core dimensions, end-plate shape, mounting holes, oil-port spacing and sealing-face condition
Supply note: Quote OC260727-002 with quantity, destination and packing requirements; sample approval is available for B2B orders.
8980254020 identifies a rectangular plate-type oil-cooling element prepared for Isuzu engine lubrication and thermal-management repairs. Yongshang Auto records this item as OC260727-002 for purchasing traceability and sample review.
The source application information covers Isuzu D-MAX source application. Because compatibility may span multiple models or production changes, the Model filter remains blank and final approval should use vehicle-specific evidence.
Product Technical Specifications
| Product type | Automotive Engine Oil Cooler |
|---|---|
| Primary OE reference | 8980254020 |
| Internal item code | OC260727-002 |
| Vehicle brand | ISUZU |
| Model filter | Intentionally left blank; verify by VIN and engine data |
| Cross-reference numbers | 8980254020 |
| Configuration | rectangular multi-plate oil-cooling element |
| Verification method | OE catalogue, VIN, engine code and removed-part comparison |
Plate-Core Heat Exchange in Isuzu Applications
Closely spaced metal plates create multiple oil channels, allowing heat to move efficiently into the surrounding coolant path. This construction supports temperature control while keeping the component compact.
When the plate core is restricted, oil temperature and pressure behavior may change. Diagnosis should also include oil condition, coolant cleanliness and any filter-housing passages connected to the cooler.
Confirming the Isuzu Cooling Element
Validate the OE number against the Isuzu engine and VIN data. Record the removed element’s length, width, thickness and mounting-hole layout before ordering.
Cross-check oil-port locations and the contour of both end plates. Small dimensional differences can prevent the cooler from seating correctly inside its housing.
Core Integrity and Passage Inspection
Examine the complete plate perimeter for distortion, corrosion and signs of brazing separation. Both oil ports must be clean, round and protected from handling damage.
Before installation, confirm that the mating housing is free from sludge and old seal material. Use the specified gaskets and follow the engine maker’s tightening procedure.
Wholesale Supply and Sample Approval
Use 8980254020 as the principal sourcing reference and OC260727-002 as the internal item code. Send order quantity, destination, carton marking and labelling requirements when requesting a quotation.
For technical approval, buyers may submit VIN data, engine information, measurements and images of the removed cooler. Packaging and mixed cooling-system orders can be reviewed before shipment.
Frequently Asked Questions
How does 8980254020 cool engine oil?
Its stacked internal plates expose the oil to a broad heat-transfer surface so thermal energy can pass into the coolant-side housing.
What vehicle information supports an Isuzu fitment check?
Provide VIN, engine family, production date and the OE marking from the original element; D-MAX references alone may not cover every production variation.
Why is a dimensional comparison important?
The element sits within a dedicated housing, so plate-core thickness, bolt-hole spacing and port alignment must match the removed unit.
What should be inspected after an oil cooler fault?
Check oil and coolant for cross-contamination, inspect the housing and seals, and verify that connected passages are not restricted.
Can this item be supplied for distributor orders?
Yes. Quote 8980254020 and OC260727-002 with required quantity, destination, carton marking and sample-approval instructions.
Request a 8980254020 Oil Cooler Quote
Contact Yongshang Auto with OE 8980254020, item code OC260727-002, quantity and delivery destination. Compatibility should be confirmed before bulk production or installation.
