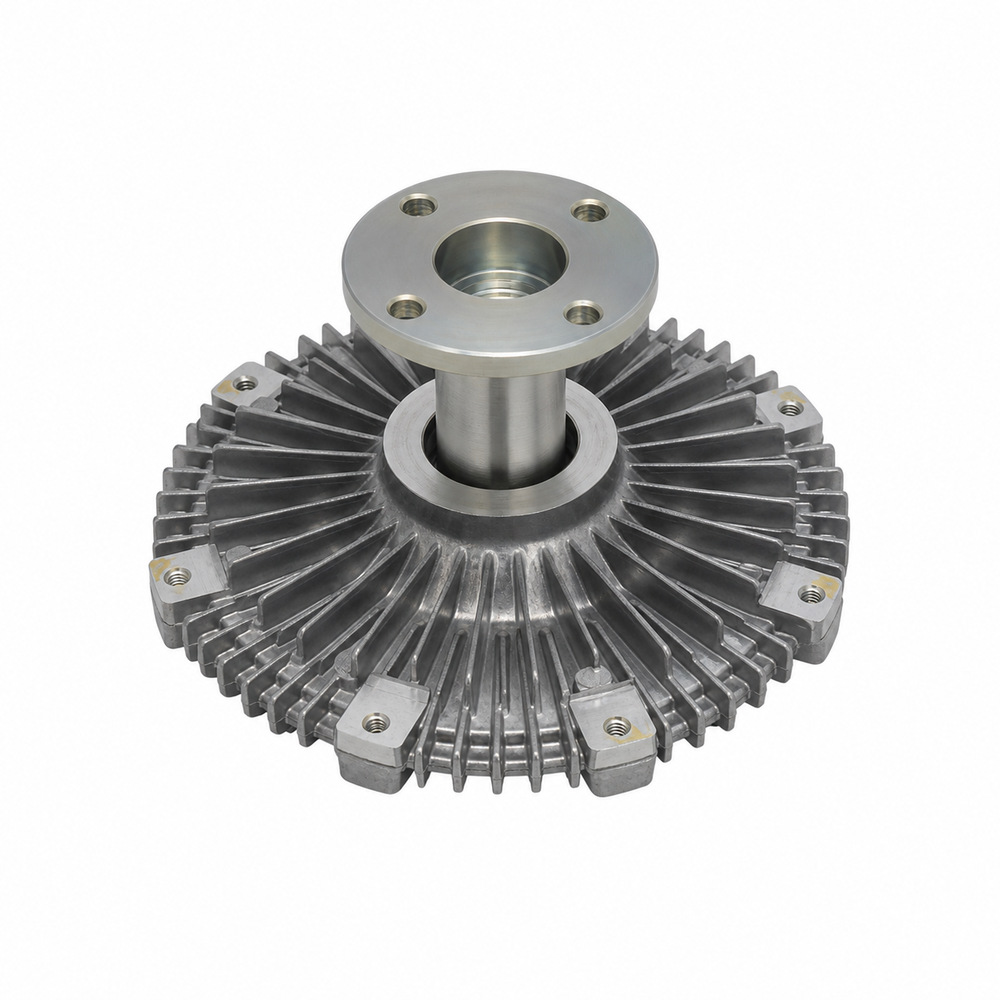

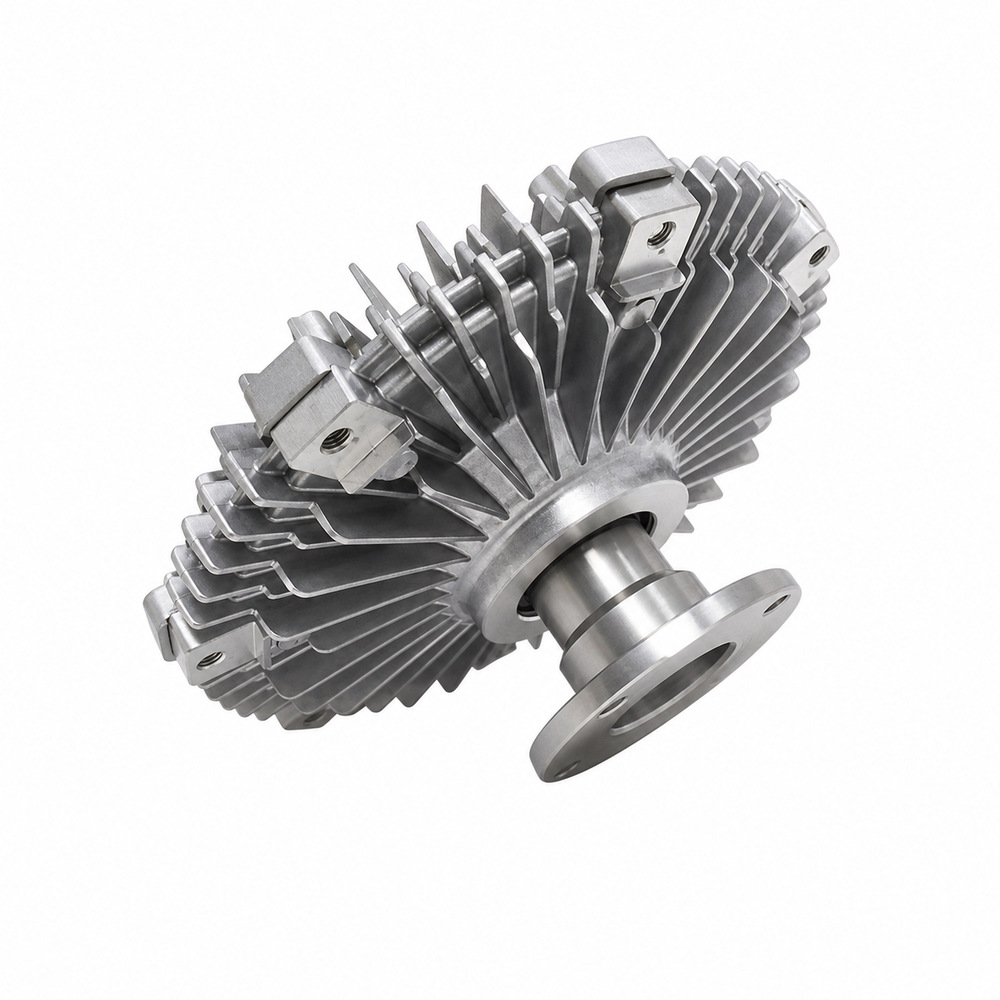

8943634620 Viscous Fan Clutch Assembly for ISUZU
Product: Viscous Fan Clutch Assembly
Primary OE: 8943634620
Item code: IS01012-006
Cross-reference numbers:
8970145970
8970617020
Brand: ISUZU
Function: Helps the radiator reject heat without a permanently locked fan drive.
Supply: Prepared for international quotation, mixed orders and repeat procurement.
Fitment check: Validate engine application, rotation and every fan-side mounting point.
Quality note: QC options include dimensional sampling, appearance and shipment photos.
8943634620 Viscous Fan Clutch Assembly for ISUZU
For ISUZU cooling-system service, this viscous coupling is catalogued under 8943634620. Item IS01012-006 separates the pictured hub from alternatives with different threads, offsets or engagement characteristics.
Inside the clutch, calibrated fluid shear links the input hub to the fan mounting section. The thermal control reacts to hot air leaving the radiator so fan assistance increases during demanding conditions.
Product Technical Specifications
| Component | Viscous fan clutch assembly |
|---|---|
| Primary OE reference | 8943634620 |
| Cross-reference numbers | 8970145970; 8970617020 |
| Vehicle brand | ISUZU |
| Model reference | Model not confirmed; verify by OE, engine and original unit |
| Yongshang Auto SKU | IS01012-006 |
| Supply position | Aftermarket wholesale replacement |
Cooling-Airflow Control
By varying the amount of torque delivered to the fan, the viscous coupling supports stable coolant temperature during idling, towing, climbing and hot-weather operation.
Inspect for cracked blades, loose fasteners, shaft play and contact marks before replacing the hub. A damaged fan can overload a new clutch and create a safety risk.
Fitment Evidence to Compare
A reliable ISUZU match requires agreement in OE number 8943634620, mounting method, hub offset, fan pattern and available clearance inside the shroud.
- Confirm the OE number and usable cross-references.
- Match vehicle model, engine, chassis and production period.
- Check drive-side thread or flange and rotation direction.
- Measure hub height, pilot diameter and fan bolt circle.
- Verify blade alignment and clearance inside the shroud.
Commercial and Heavy-Duty Cooling Notes
ISUZU applications may spend long periods idling, towing or working at low road speed. Confirm radiator cleanliness, shroud sealing, belt condition and fan-blade integrity so the replacement clutch operates inside a complete and correctly maintained cooling-airflow system.
Installation and Cooling-System Checks
Installation should be completed by a qualified technician. Follow the specified thread direction and torque procedure, inspect the fan and water-pump bearing, replace damaged hardware, and confirm that the blade rotates freely without contacting the radiator or shroud. Test the vehicle under the appropriate warm operating conditions after assembly.
Pre-Shipment Review
The agreed QC scope can include dimensional sampling, visible leakage inspection, rotation feel, item-code labels and shipment photographs.
Ordering Specification Notes
To reduce selection risk, treat 8943634620 and IS01012-006 as the start of the ISUZU specification. Add thread or flange details, pilot diameter, bolt pattern, hub offset and shroud clearance. The resulting checklist supports quotation, approval, receiving and installation review.
Wholesale and Procurement Information
Send OE 8943634620, item IS01012-006, target market and annual demand for evaluation. Original-unit photos improve review when application data is incomplete.
Frequently Asked Questions
How does 8943634620 respond to temperature?
The thermal mechanism changes viscous coupling behavior as hot radiator-exit air reaches the clutch, increasing fan drive when required.
What if the new hub sits closer to the radiator?
Stop and recheck the application. Incorrect offset can reduce clearance and risk contact with the radiator or shroud.
Should rotation direction be verified?
Yes. Fan design and clutch operation must suit the intended rotation and mounting arrangement.
What QC can be requested for IS01012-006?
Visible-condition checks, dimensional sampling, product photographs, labels and carton review can be discussed.
What affects production lead time?
Quantity, stock, manufacturing schedule, inspection scope and packaging requirements all influence the confirmed plan.
Request a 8943634620 Fan Clutch Quote
Contact Yongshang Auto with 8943634620, IS01012-006, quantity and destination country for a fitment review and wholesale proposal for ISUZU.
Fitment notice: OE and model references support identification but do not replace engine-specific catalogue checks or comparison with the original fan clutch.
