88VB8A616AA Viscous Fan Clutch Assembly for FORD Transit
Product: Viscous Fan Clutch Assembly
Primary OE: 88VB8A616AA
Item code: FD01012-001
Cross-reference numbers:
6176701
Brand: FORD
Model: Transit
Function: Uses viscous coupling action to balance cooling airflow and engine drag.
Supply: Supports sample, batch and recurring cooling-system requirements.
Fitment check: Confirm model, engine, production period and both mounting interfaces.
Quality note: Visible housing, flange and thread condition may be included in the QC scope.
88VB8A616AA Viscous Fan Clutch Assembly for FORD Transit

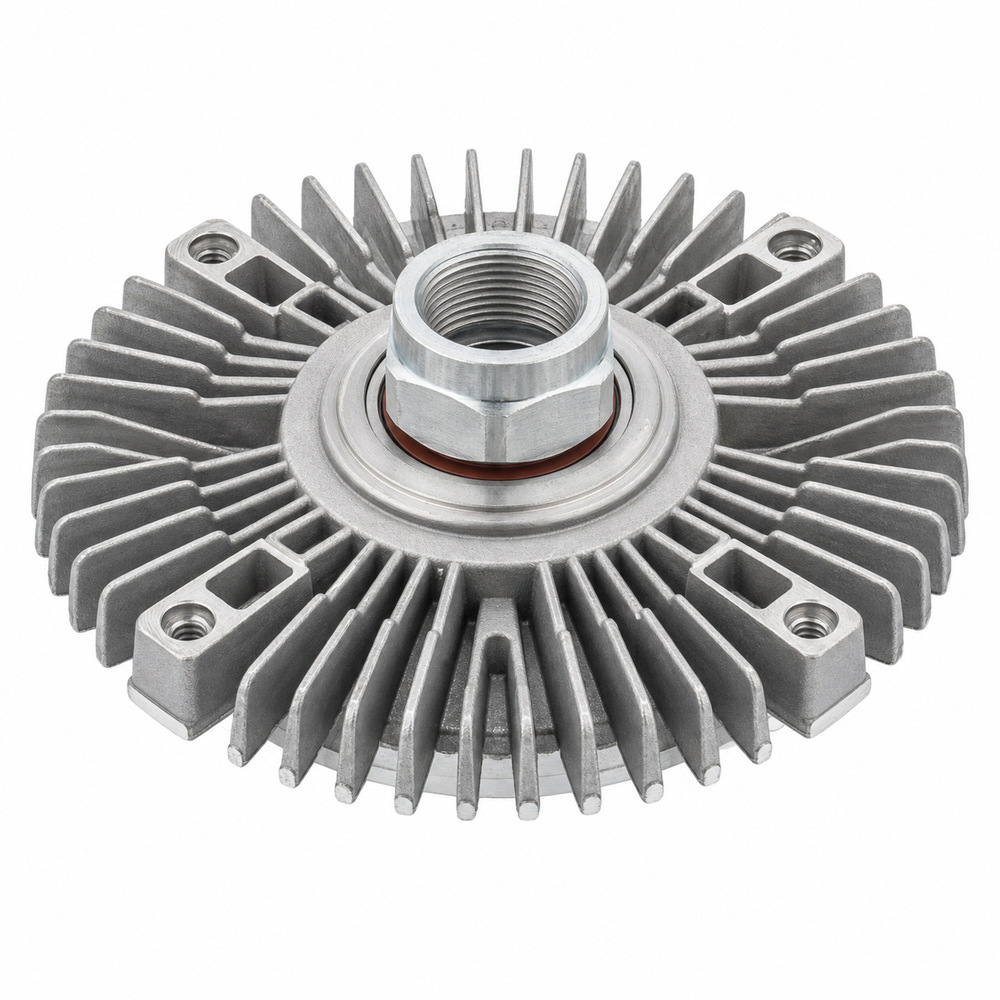

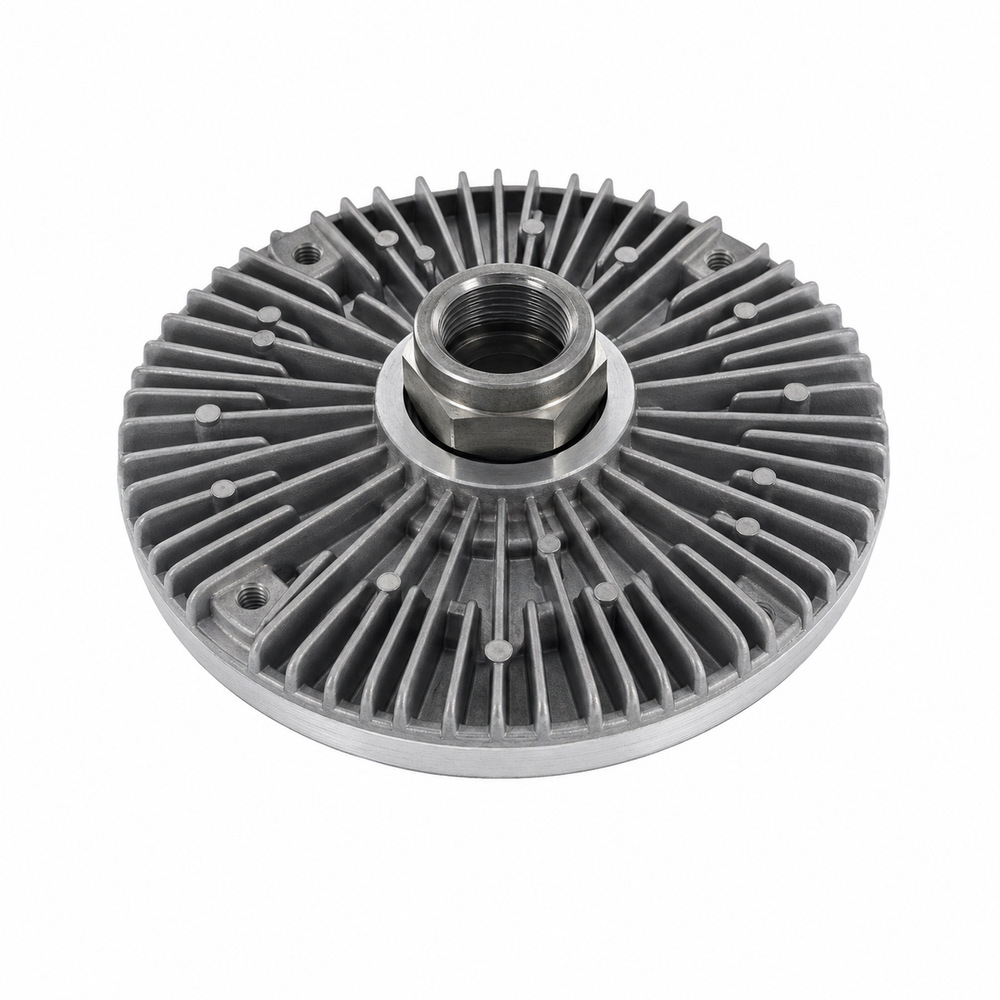

For FORD Transit cooling-system service, this viscous coupling is catalogued under 88VB8A616AA. Item FD01012-001 separates the pictured hub from alternatives with different threads, offsets or engagement characteristics.
Cooling performance depends on both airflow and mechanical integrity. The clutch bearing, input connection, fan bolt pattern and thermal valve must suit the original system.
Product Technical Specifications
| Component | Viscous fan clutch assembly |
|---|---|
| Primary OE reference | 88VB8A616AA |
| Cross-reference numbers | 6176701 |
| Vehicle brand | FORD |
| Model reference | Transit |
| Yongshang Auto SKU | FD01012-001 |
| Supply position | Aftermarket wholesale replacement |
Cooling-Airflow Control
This assembly helps balance low-speed cooling airflow and engine efficiency. A sound bearing, correct hub offset and properly calibrated viscous action are all important to reliable operation.
Constant fan roar, weak airflow at idle, overheating in traffic, hub wobble or silicone-fluid leakage can indicate fan-clutch wear, although the complete cooling system should be diagnosed.
Fitment Evidence to Compare
Cross-check 88VB8A616AA, the FORD Transit production period and the fan-blade interface. Do not force a mismatched hub or reuse damaged mounting hardware.
- Confirm the OE number and usable cross-references.
- Match vehicle model, engine, chassis and production period.
- Check drive-side thread or flange and rotation direction.
- Measure hub height, pilot diameter and fan bolt circle.
- Verify blade alignment and clearance inside the shroud.
Commercial and Heavy-Duty Cooling Notes
FORD Transit applications may spend long periods idling, towing or working at low road speed. Confirm radiator cleanliness, shroud sealing, belt condition and fan-blade integrity so the replacement clutch operates inside a complete and correctly maintained cooling-airflow system.
Installation and Cooling-System Checks
Installation should be completed by a qualified technician. Follow the specified thread direction and torque procedure, inspect the fan and water-pump bearing, replace damaged hardware, and confirm that the blade rotates freely without contacting the radiator or shroud. Test the vehicle under the appropriate warm operating conditions after assembly.
Pre-Shipment Review
Order checks can include part-number traceability, obvious handling damage, thread or flange condition and secure carton protection.
Ordering Specification Notes
A complete purchasing file for FORD Transit should connect 88VB8A616AA and FD01012-001 with engine data, hub height, mounting style, fan bolt circle and original-unit photographs. Recording these details before sample approval gives sourcing, warehouse and after-sales teams a consistent reference for future orders.
Wholesale and Procurement Information
To review supply for 88VB8A616AA, submit FD01012-001 with the engine application, expected quantity and acceptance criteria. This keeps technical and commercial details connected.
Frequently Asked Questions
Why can a worn 88VB8A616AA clutch affect cooling?
Insufficient engagement may reduce fan airflow at low vehicle speed, especially under high thermal load.
Does constant fan noise always mean clutch failure?
No. Diagnosis should also consider engine temperature, shroud condition, belt drive and the vehicle’s normal control strategy.
Is professional installation recommended?
Yes. The technician should follow the correct thread direction, torque procedure and fan-clearance checks.
Can SKU FD01012-001 be included in a mixed order?
Yes. List each SKU, OE number and quantity separately so labels and inspection records remain traceable.
What should an importer include in an enquiry?
Send the engine application, required volume, destination, original-part photos and commercial packing requirements.
Request a 88VB8A616AA Fan Clutch Quote
Contact Yongshang Auto with 88VB8A616AA, FD01012-001, quantity and destination country for a fitment review and wholesale proposal for FORD Transit.
Fitment notice: OE and model references support identification but do not replace engine-specific catalogue checks or comparison with the original fan clutch.
