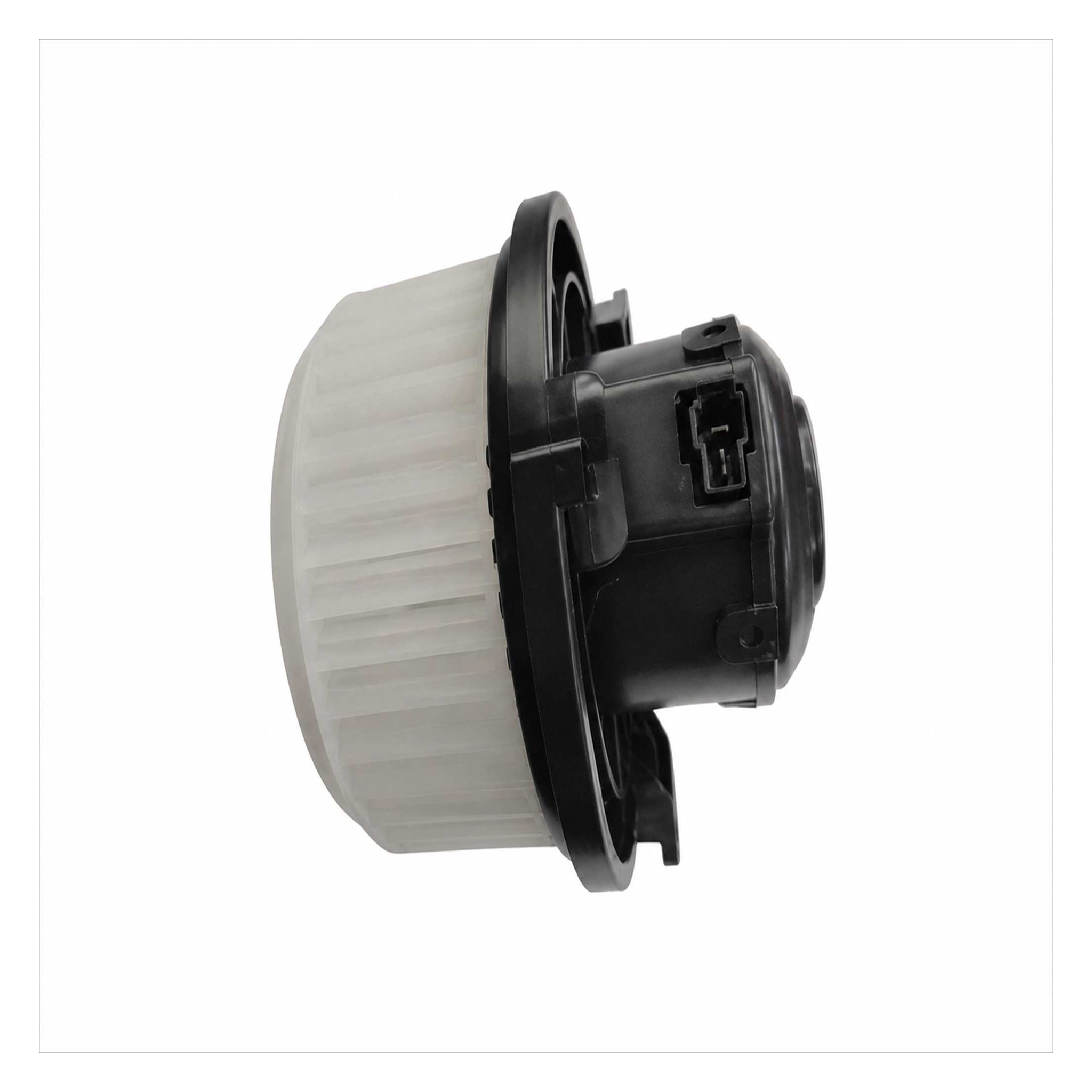

8126100U1510-14 Blower Motor for JAC Refine S5
Primary OE reference: 8126100U1510-14
Product type: Automotive HVAC Blower Motor
Applicable vehicle: JAC Refine S5
Brand: JAC
Model: Refine S5
Electrical match: Confirm voltage, plug key and terminal count against the original motor
Motor interface: Compare flange contour, screw spacing and motor-body depth
Fan wheel check: Verify wheel diameter, height and rotation direction before ordering
HVAC function: Electrical input is converted into fan-wheel movement so the ventilation system can deliver air to face, floor and defrost ducts.
Installation guidance: Disconnect electrical power as required, remove trim without forcing clips, and trial-fit the blower before final tightening.
Fitment basis: Check voltage, rotation direction, cable exit and the position of every locating tab against the existing blower.
Quotation information: Provide the OE number, vehicle application, quantity and delivery country
8126100U1510-14 Automotive Blower Motor Overview
Buyers comparing an interior fan motor can use 8126100U1510-14 together with the 8126100U1510-14 product images and vehicle data on this page.
For catalogue item 6213-006, the 8126100U1510-14 blower works with the cabin filter and air doors to provide controlled ventilation in recirculation or fresh-air mode. Use 6213-006 when comparing this 8126100U1510-14 airflow configuration.
OE Reference and Application
The primary catalogue number is 8126100U1510-14. The recorded application is JAC Refine S5. For 6213-006, Use the original motor number and clear front/rear photographs to distinguish similar left-hand-drive and right-hand-drive versions. Record 6213-006 with the approved OE reference.
HVAC Interface and 8126100U1510-14 installation
During work on 6213-006, Check the air inlet for foreign material before fitting the replacement so debris does not damage or unbalance the new wheel. Recheck 6213-006 before the lower trim is closed.
For item 6213-006, confirm that the 8126100U1510-14 centrifugal wheel clears its housing and that the 6213-006 connector lock engages without force. After seating 6213-006, test the available fan speeds and listen for rubbing, imbalance or intermittent electrical operation linked to 6213-006.
Automotive HVAC Blower Motor Specifications
| Product type | Automotive HVAC Blower Motor |
|---|---|
| Primary OE reference | 8126100U1510-14 |
| Cross-reference numbers | 8126100U1510-14 |
| Vehicle brand | JAC |
| Vehicle model | Refine S5 |
| Model year | Confirm by OE reference |
| 8126100U1510-14 installation area | Cabin HVAC / heater blower housing |
| Main interfaces | Electrical connector, mounting flange and centrifugal fan wheel |
| Fitment method | OE-number and physical-geometry comparison |
Quality and Trade Supply
For product 6213-006, Reference labels and image records support traceable picking when visually similar blower motors share a shipment. The 6213-006 record remains the picking reference.
For trade item 6213-006, Mixed orders can be reviewed by SKU and OE list, with application details kept separate for warehouse picking. Keep 6213-006 on the packing instruction.
Frequently Asked Questions
How should item 6213-006 and blower number 8126100U1510-14 be verified?
Match 6213-006 to the complete 8126100U1510-14 marking, then compare the 6213-006 plug, terminal count, mounting flange and wheel dimensions with the removed JAC unit.
Can 6213-006 have more than one vehicle-side blower configuration?
Yes. JAC production changes can affect 6213-006; confirm steering position, climate-control specification and the original 6213-006 geometry before approval.
What circuit checks are useful when 6213-006 does not operate?
For 6213-006, inspect the fuse, relay, speed resistor or controller, wiring and ground before replacing the 6213-006 motor again.
Which details should accompany a wholesale request for 6213-006?
Provide item 6213-006, OE 8126100U1510-14, the stated application, quantity and destination; add 6213-006 carton or private-label requirements separately.
How can noise be avoided after fitting 6213-006?
Clear debris from the air inlet, check that the 6213-006 wheel turns freely, seat the 6213-006 flange evenly and keep wiring away from the impeller.
Request a quote for 6213-006: Send 8126100U1510-14, the 6213-006 application and required quantity for a fitment and supply review.
