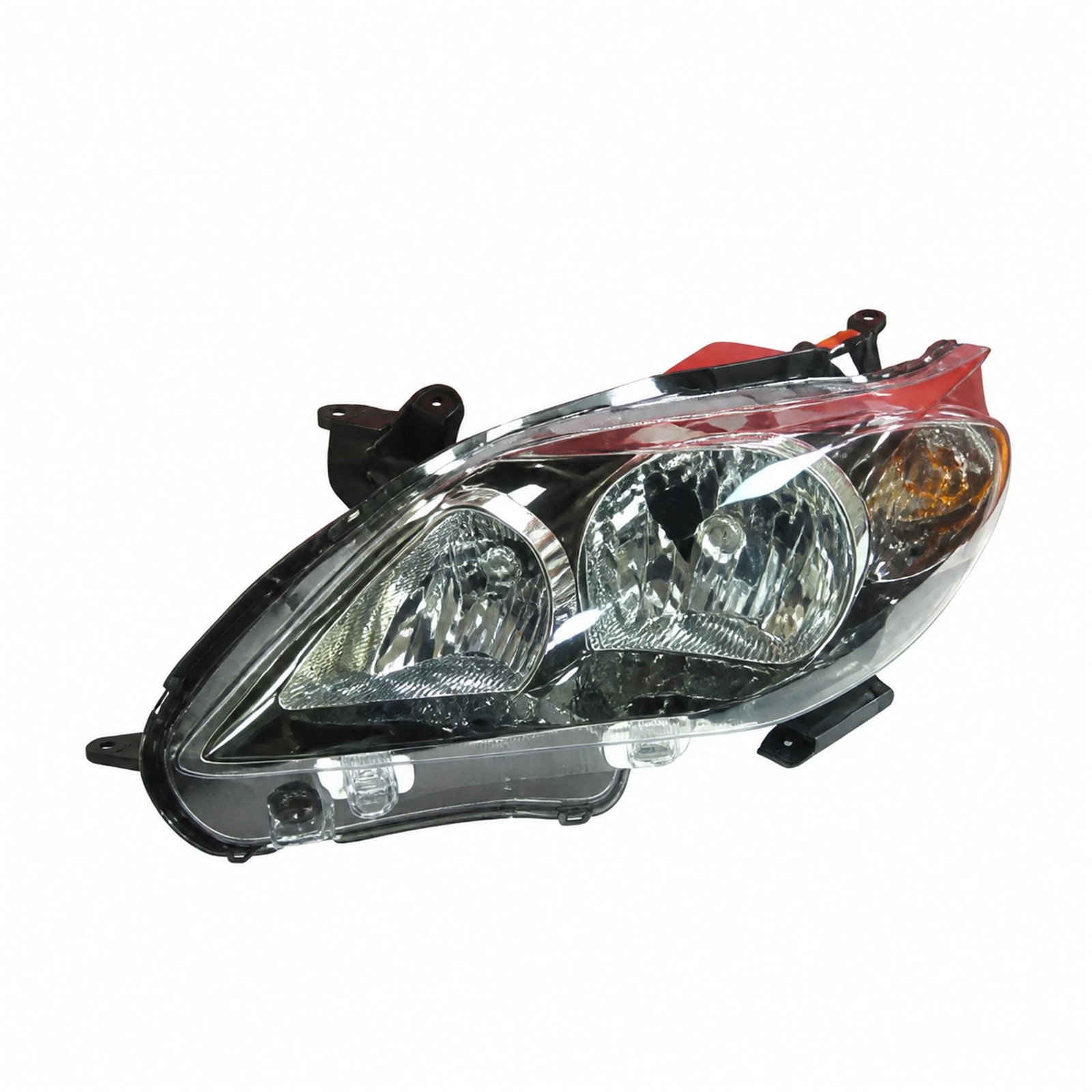

81150-02B60 Head Light for TOYOTA Corolla 2011 Left
Primary OE reference: 81150-02B60
Cross-reference number 1: 81150-02B60
Product type: Head Light Assembly
Applicable vehicle: TOYOTA Corolla 2011
Installation position: Left front headlamp position
Brand: TOYOTA
Model: Corolla
Vehicle year: 2011
Lighting configuration: black internal bezel, US-market specification
Housing comparison: Review the complete lamp body from several angles because a similar lens can conceal a non-matching rear casing or bracket offset.
Optical system: Verify the number and position of optical chambers and verify whether daytime lighting is integrated into the main housing.
Electrical interface: Correspond to the connector key, pin arrangement, latch direction and cable exit; LED or xenon versions may also require compatible control hardware.
Mounting points: Verify that repaired body supports are square before judging lamp fit, because collision distortion can imitate a part mismatch.
Installation guidance: Keep wiring clear of hot or moving components, then test low beam, high beam, indicator and daytime lighting where applicable.
Wholesale packing: Mixed orders should establish vehicle application and side clearly, with protective packing around the optical face and electrical connections.
Application-specific focus: For the left TOYOTA Corolla application with black internal bezel, us-market specification, check reflector colour, projector presence and any decorative internal trim before approving a left/right pair for one vehicle.
Head Light Assembly Overview
This listing covers a model-specific headlamp assembly whose optical system, brackets and electrical interface must be checked together. It is catalogued under OE reference 81150-02B60 for TOYOTA Corolla 2011, with the left position identified in the source record.
The photographed lens, internal optical layout, rear casing and attachment points should be reviewed as one system. A close-looking lamp from another trim or market can differ behind the body opening.
Lighting Function and Optical Configuration
Verify the number and position of optical chambers and verify whether daytime lighting is integrated into the main housing.
For the Corolla application, verify the lighting package fitted to the vehicle. Standard, projector, xenon and LED versions can use distinct internal modules, beam controls and daytime-light signatures.
Vehicle Fitment and Body Interface
Compare the rear housing depth, outer lens contour and the relationship between the grille-side and fender-side edges with the removed lamp.
Verify that repaired body supports are square before judging lamp fit, because collision distortion can imitate a part mismatch.
Connector and Control Hardware
The electrical interface should seat without modification, and the harness must reach the connection without tension or contact with sharp edges.
Verify the supply scope shown in the product photographs. Bulbs, rear caps, levelling motors, ballasts, LED drivers and auxiliary brackets may vary between versions and should be checked separately.
Installation and Beam Alignment
Tighten the fasteners evenly, restore adjacent covers only after functional testing, and review bonnet and bumper clearances one final time.
A qualified workshop should inspect surrounding supports for damage, complete the electrical tests and set the headlamp beam according to local requirements after installation.
Automotive Lighting Product Specifications
| Product type | Head Light Assembly |
|---|---|
| Primary OE reference | 81150-02B60 |
| Cross-reference numbers | 81150-02B60 |
| Internal item code | TY04001-109 |
| Vehicle brand | TOYOTA |
| Vehicle model | Corolla |
| Model year | 2011 |
| Installation position | Left front |
| Lighting configuration | black internal bezel, US-market specification |
Wholesale Supply and Protective Packing
Packing should distribute load around the housing rather than the lens and preserve dry, clean connector and module interfaces.
When requesting a quotation, supply the vehicle application, production period, required side, lighting technology, quantity and destination. Original-lamp photographs are useful when several versions exist.
Application-Specific Comparison Notes
For this left TOYOTA Corolla headlamp, the black internal bezel, us-market specification specification should be assessed together with the 2011 body application. Compare the rear housing depth, outer lens contour and the relationship between the grille-side and fender-side edges with the removed lamp.
The left Corolla lighting package should remain the reference during electrical review. Do not use connector colour as the only selection point; terminal geometry, locking tabs and installed modules must also agree.
When fitting the TOYOTA Corolla unit at the left front position, preserve even body gaps and the intended beam orientation. Tighten the fasteners evenly, restore adjacent covers only after functional testing, and review bonnet and bumper clearances one final time.
Frequently Asked Questions
How can connector compatibility be reviewed?
Compare keying, terminal count, latch direction and wire exit, then determine any required ballast, driver or levelling motor.
When is professional beam aiming required?
Beam alignment should be checked after the unit is secured and every lighting function has been tested.
What should be checked before installation?
For the Corolla, inspect the vehicle supports, cross-check every fixing point, verify the connector and complete a no-force trial fit.
Are bulbs and electronic modules included?
The included components are those photographed in the product photographs. Review bulbs, caps, motors, ballasts and LED modules separately.
How should the lamp be protected during shipping?
The lens needs isolation from carton pressure, while the rear housing and projecting tabs require stable internal support.
