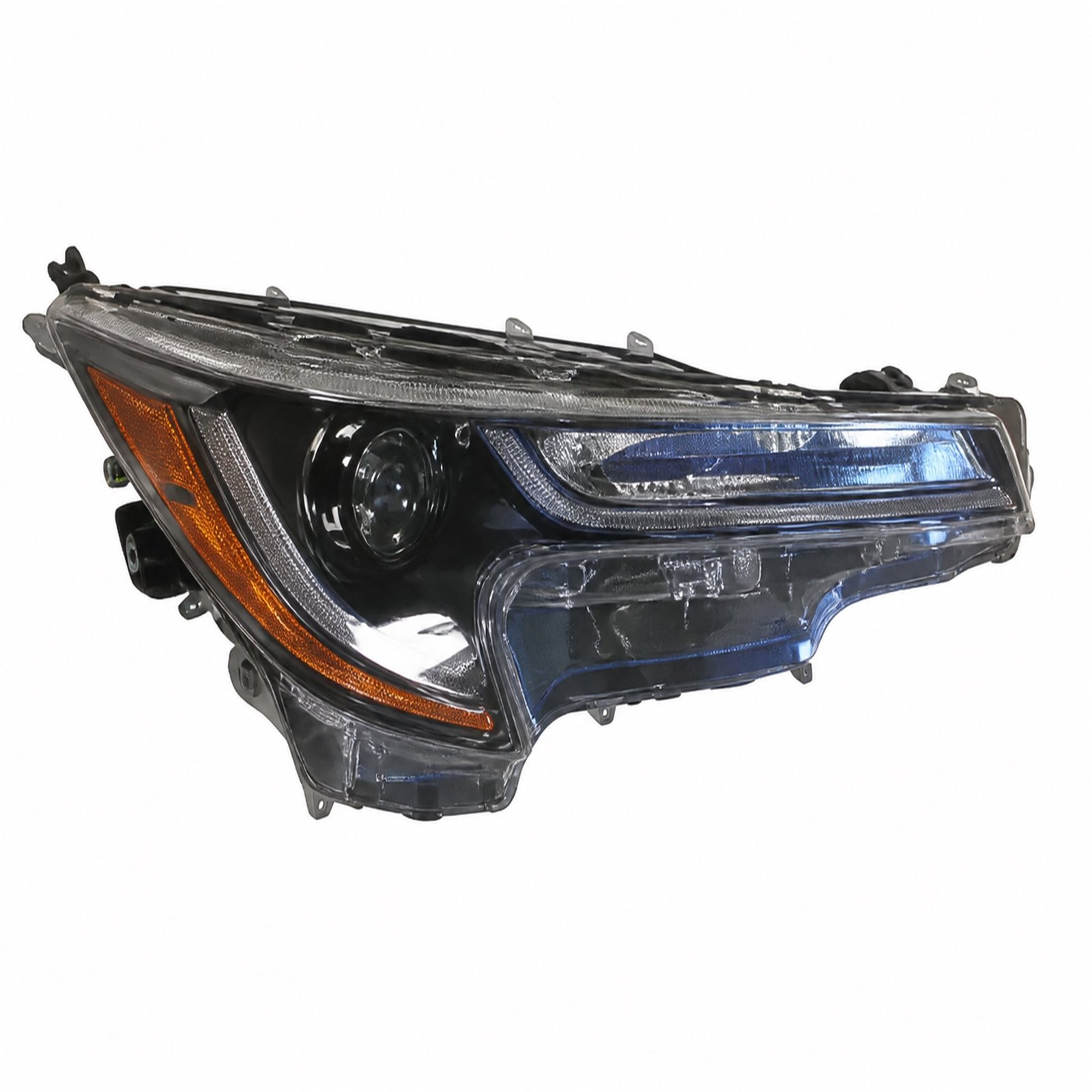

81140-12K90 Head Light for TOYOTA Corolla 2020 Right
Primary OE reference: 81140-12K90
Cross-reference number 1: 81140-12K90
Product type: Head Light Assembly
Applicable vehicle: TOYOTA Corolla 2020
Installation position: Right front headlamp position
Brand: TOYOTA
Model: Corolla
Vehicle year: 2020
Lighting configuration: US-market specification
Housing comparison: Cross-check the rear housing depth, outer lens contour and the relationship between the grille-side and fender-side edges with the removed lamp.
Optical system: Determine whether the original lighting system uses a reflector, projector, halogen bulb, xenon burner or integrated LED light source.
Electrical interface: Review terminal count, plug orientation and the location of removable caps before transferring bulbs or reusable electronics.
Mounting points: Start all fasteners loosely during the trial fit and make sure the housing rests against its supports without bending a bracket.
Installation guidance: Tighten the fasteners evenly, restore surrounding covers only after functional testing, and inspect bonnet and bumper clearances one final time.
Wholesale packing: Left and right units should be labelled separately, and internal supports should keep the lamp from moving inside the export carton.
Application-specific focus: For the right TOYOTA Corolla application with us-market specification, confirm that the beam system and external lamp signature correspond to the vehicle trim rather than selecting by exterior outline alone.
Head Light Assembly Overview
This replacement head light is intended for application-specific sourcing rather than universal installation. It is catalogued under OE reference 81140-12K90 for TOYOTA Corolla 2020, with the right position identified in the source record.
The visible lens, internal optical layout, rear casing and attachment points should be reviewed as one system. A close-looking lamp from another trim or market can differ behind the body opening.
Lighting Function and Optical Configuration
Determine whether the original lighting system uses a reflector, projector, halogen bulb, xenon burner or integrated LED light source.
For the Corolla application, verify the lighting package fitted to the vehicle. Standard, projector, xenon and LED versions can use non-matching internal modules, beam controls and daytime-light signatures.
Vehicle Fitment and Body Interface
Validate that the headlamp sits naturally in the body opening and follows the bonnet, grille and fender lines without forced alignment.
Start all fasteners loosely during the trial fit and make sure the housing rests against its supports without bending a bracket.
Connector and Control Hardware
Compare every plug and socket with the original unit and verify whether the levelling motor, ballast or LED driver is included or transferred.
Validate the supply scope shown in the product photographs. Bulbs, rear caps, levelling motors, ballasts, LED drivers and auxiliary brackets may vary between versions and should be checked separately.
Installation and Beam Alignment
Complete a no-force trial fit first; once the panel gaps are even, secure the unit and adjust the beam to workshop specifications.
A qualified workshop should inspect surrounding supports for damage, complete the electrical tests and set the headlamp beam according to local requirements after installation.
Automotive Lighting Product Specifications
| Product type | Head Light Assembly |
|---|---|
| Primary OE reference | 81140-12K90 |
| Cross-reference numbers | 81140-12K90 |
| Internal item code | TY04001-142 |
| Vehicle brand | TOYOTA |
| Vehicle model | Corolla |
| Model year | 2020 |
| Installation position | Right front |
| Lighting configuration | US-market specification |
Wholesale Supply and Protective Packing
Packing should distribute load around the housing rather than the lens and preserve dry, clean connector and module interfaces.
When requesting a quotation, supply the vehicle application, production period, required side, lighting technology, quantity and destination. Original-lamp photographs are useful when several versions exist.
Application-Specific Comparison Notes
For this right TOYOTA Corolla headlamp, the us-market specification specification should be assessed together with the 2020 body application. Use the original assembly to verify the shell profile, upper support shape and clearance around surrounding trim before installation.
The right Corolla lighting package should remain the reference during electrical review. Review terminal count, plug orientation and the location of removable caps before transferring bulbs or reusable electronics.
When fitting the TOYOTA Corolla unit at the right front position, preserve even body gaps and the intended beam orientation. Use appropriate workshop procedures for removal and refitting, then verify that vibration, panel pressure and cable routing do not stress the housing.
Frequently Asked Questions
What photographs are useful for comparison?
Clear front, rear, connector and mounting-tab views help distinguish the required headlamp from a similar-looking alternative.
What should be checked before installation?
For the Corolla, inspect the vehicle supports, cross-check every fixing point, verify the connector and complete a no-force trial fit.
When is professional beam aiming required?
Beam alignment should be checked after the unit is secured and every lighting function has been tested.
Are bulbs and electronic modules included?
The included components are those visible in the product photographs. Verify bulbs, caps, motors, ballasts and LED modules separately.
Are left and right headlamps interchangeable?
No. This application requires the right side; bracket geometry, optical pattern and wiring position are side-specific.
