81130-60E40 Head Light for TOYOTA Land Cruiser Prado 2010 Right
Primary OE reference: 81130-60E40
Cross-reference number 1: 81130-60E40
Product type: Head Light Assembly
Applicable vehicle: TOYOTA Land Cruiser Prado 2010
Installation position: Right front headlamp position
Brand: TOYOTA
Model: Land Cruiser Prado
Vehicle year: 2010
Lighting configuration: Match the photographed optical configuration
Housing comparison: Use the original assembly to verify the shell profile, upper support shape and clearance around nearby trim before installation.
Optical system: Verify reflector colour, projector presence and any decorative internal trim before approving a left/right pair for one vehicle.
Electrical interface: Cross-check every plug and socket with the original unit and verify whether the levelling motor, ballast or LED driver is included or transferred.
Mounting points: Safeguard projecting tabs during handling and verify that each locating feature enters the correct body-side slot during the dry fit.
Installation guidance: Keep wiring clear of hot or moving components, then test low beam, high beam, indicator and daytime lighting where applicable.
Wholesale packing: Mixed orders should determine vehicle application and side clearly, with protective packing around the optical face and electrical connections.
Application-specific focus: For the right TOYOTA Land Cruiser Prado application with match the photographed optical configuration, review the lens pattern, internal bezel finish and optical modules so the selected unit matches the intended lighting package.
Head Light Assembly Overview

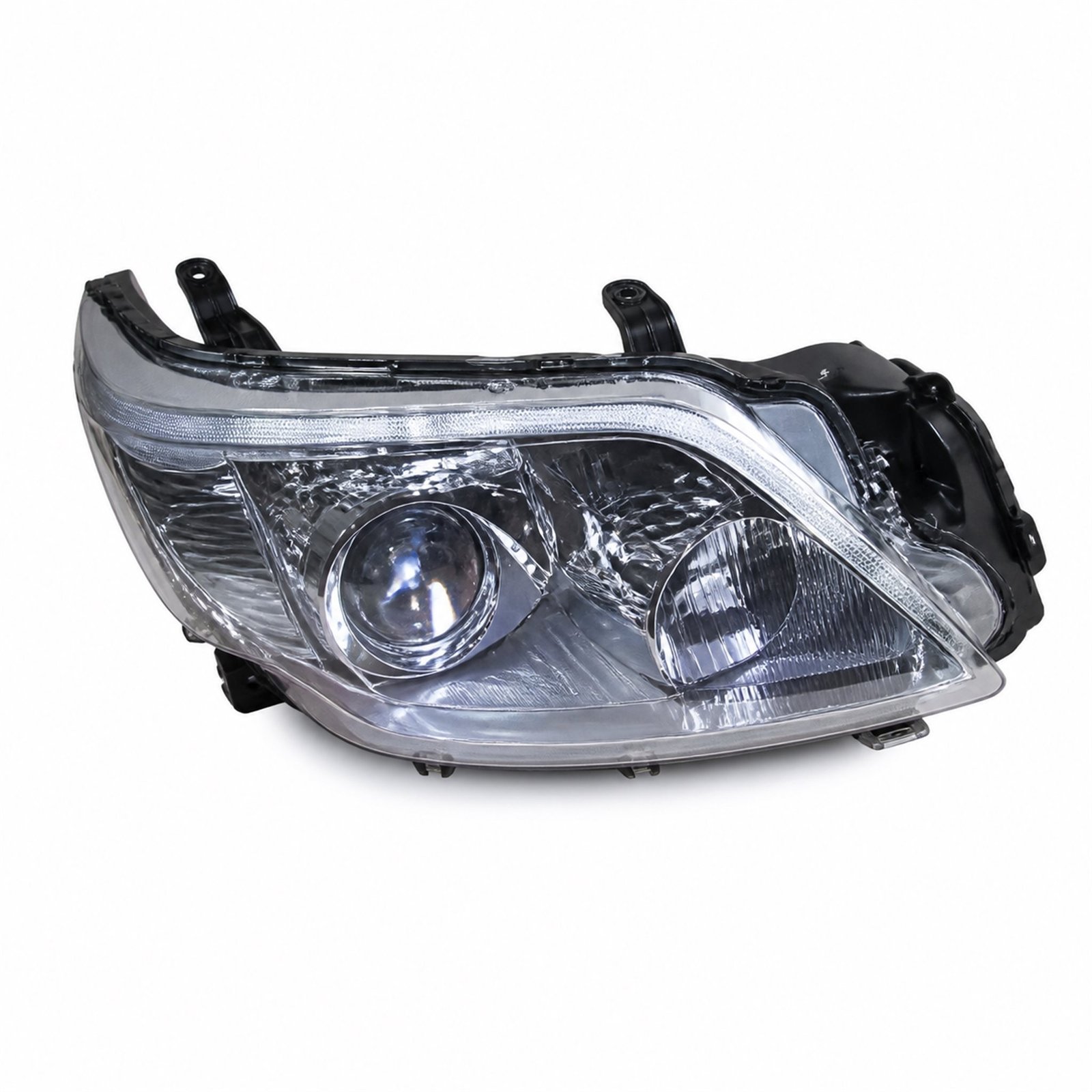

The photographed assembly is supplied for buyers comparing a complete front lighting unit by vehicle application and physical construction. It is catalogued under OE reference 81130-60E40 for TOYOTA Land Cruiser Prado 2010, with the right position identified in the source record.

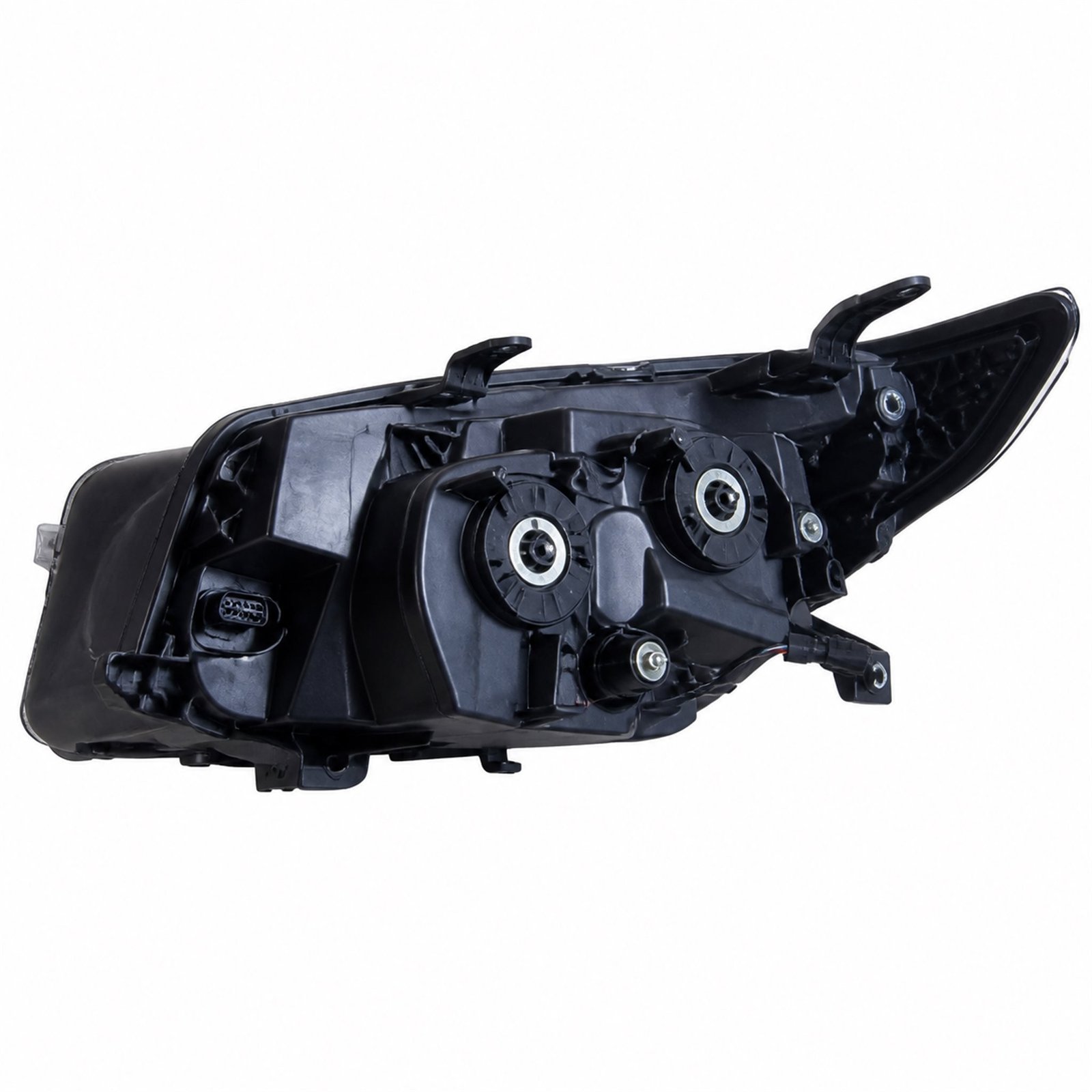

The external lens, internal optical layout, rear casing and attachment points should be reviewed as one system. A close-looking lamp from another trim or market can differ behind the body opening.
Lighting Function and Optical Configuration
Verify reflector colour, projector presence and any decorative internal trim before approving a left/right pair for one vehicle.
For the Land Cruiser Prado application, verify the lighting package fitted to the vehicle. Standard, projector, xenon and LED versions can use alternative internal modules, beam controls and daytime-light signatures.
Vehicle Fitment and Body Interface
Use the original assembly to verify the shell profile, upper support shape and clearance around nearby trim before installation.
Safeguard projecting tabs during handling and verify that each locating feature enters the correct body-side slot during the dry fit.
Connector and Control Hardware
The electrical interface should seat without modification, and the harness must reach the connection without tension or contact with sharp edges.
Verify the supply scope shown in the product photographs. Bulbs, rear caps, levelling motors, ballasts, LED drivers and auxiliary brackets may vary between versions and should be checked separately.
Installation and Beam Alignment
Tighten the fasteners evenly, restore nearby covers only after functional testing, and check bonnet and bumper clearances one final time.
A qualified workshop should inspect surrounding supports for damage, complete the electrical tests and set the headlamp beam according to local requirements after installation.
Automotive Lighting Product Specifications
| Product type | Head Light Assembly |
|---|---|
| Primary OE reference | 81130-60E40 |
| Cross-reference numbers | 81130-60E40 |
| Internal item code | TY04001-266 |
| Vehicle brand | TOYOTA |
| Vehicle model | Land Cruiser Prado |
| Model year | 2010 |
| Installation position | Right front |
| Lighting configuration | Match the photographed optical configuration |
Wholesale Supply and Protective Packing
Mixed orders should recognize vehicle application and side clearly, with protective packing around the optical face and electrical connections.
When requesting a quotation, provide the vehicle application, production period, required side, lighting technology, quantity and destination. Original-lamp photographs are useful when several versions exist.
Application-Specific Comparison Notes
For this right TOYOTA Land Cruiser Prado headlamp, the align with the photographed optical configuration specification should be assessed together with the 2010 body application. Lay the replacement beside the removed unit and evaluate overall depth, edge returns, vent locations and rear-cover clearance.
The right Land Cruiser Prado lighting package should remain the reference during electrical review. Verify compatibility with the vehicle’s lighting controls, especially where automatic levelling or daytime-running-light functions are fitted.
When fitting the TOYOTA Land Cruiser Prado unit at the right front position, preserve even body gaps and the intended beam orientation. Use appropriate workshop procedures for removal and refitting, then verify that vibration, panel pressure and cable routing do not stress the housing.
Frequently Asked Questions
Why must the rear housing be compared?
A similar lens can conceal a alternative casing depth, cap arrangement or bracket offset, preventing correct seating in the body opening.
How should headlamp fitment be confirmed?
For the right Land Cruiser Prado lamp, compare the body outline, mounting tabs, connector and lighting technology with the removed unit. Model year alone may not distinguish every trim.
What photographs are useful for comparison?
Clear front, rear, connector and mounting-tab views help distinguish the required headlamp from a similar-looking alternative.
What information supports a wholesale quotation?
State the TOYOTA Land Cruiser Prado application, production year, right side, lighting version, quantity and delivery country.
Are left and right headlamps interchangeable?
No. This application requires the right side; bracket geometry, optical pattern and wiring position are side-specific.
