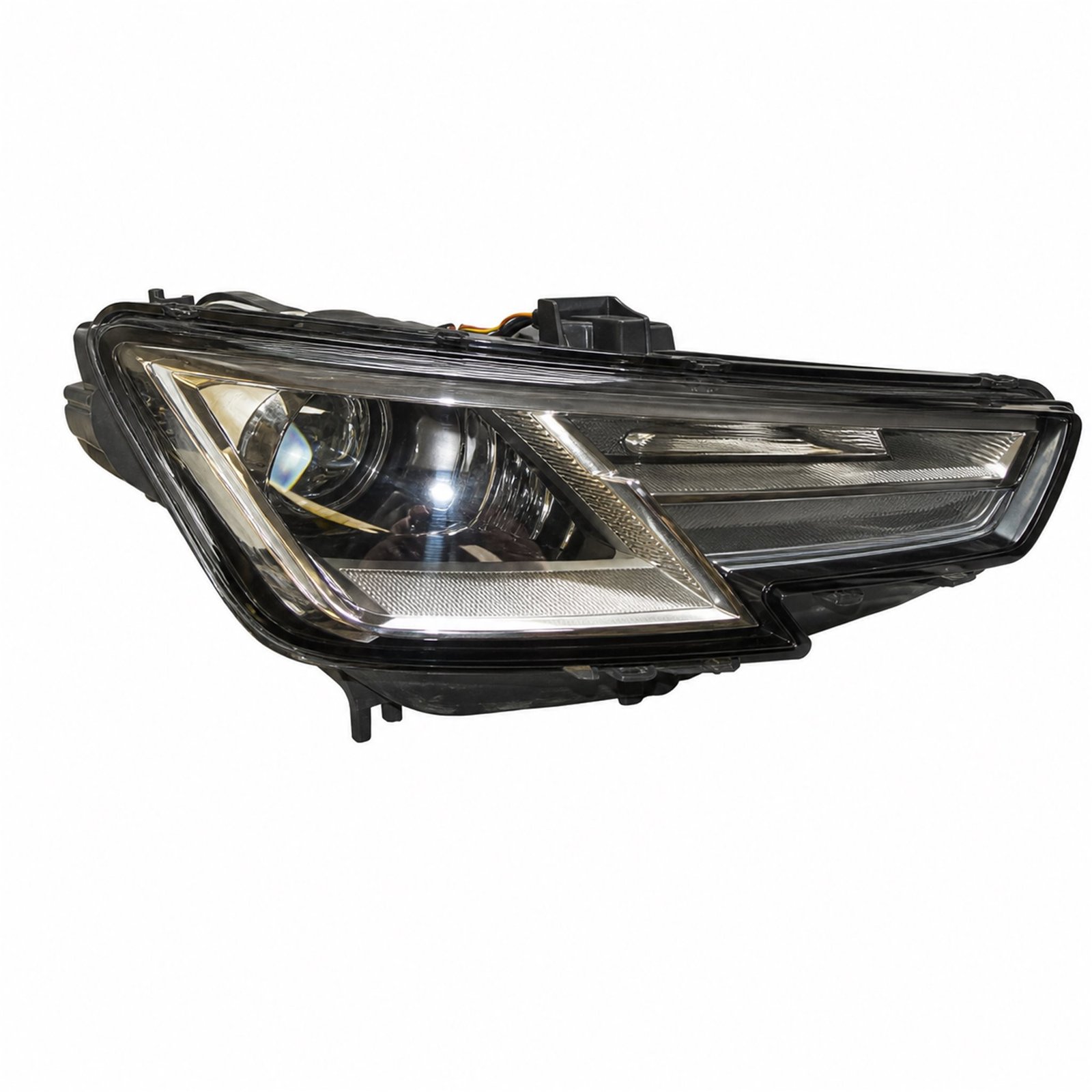

80A 941 034 Head Light for AUDI Q5 2018 Right

Head Light Assembly Overview

This listing covers a model-specific headlamp assembly whose optical system, brackets and electrical interface must be checked together. It is catalogued under OE reference 80A 941 034 for AUDI Q5 2018, with the right position identified in the source record.

The observable lens, internal optical layout, rear casing and attachment points should be reviewed as one system. A close-looking lamp from another trim or market can differ behind the body opening.

Lighting Function and Optical Configuration

Confirm that the beam system and observable lamp signature correspond to the vehicle trim rather than selecting by exterior outline alone.

For the Q5 application, verify the lighting package fitted to the vehicle. Standard, projector, xenon and LED versions can use different internal modules, beam controls and daytime-light signatures.

Vehicle Fitment and Body Interface

Review the inner and outer corners of the housing as well as the gap to adjacent panels; these points often separate nearby variants.

Safeguard projecting tabs during handling and verify that each locating feature enters the correct body-side slot during the dry fit.

Connector and Control Hardware

Confirm compatibility with the vehicle’s lighting controls, especially where automatic levelling or daytime-running-light functions are fitted.

Confirm the supply scope shown in the product photographs. Bulbs, rear caps, levelling motors, ballasts, LED drivers and auxiliary brackets may vary between versions and should be checked separately.

Installation and Beam Alignment

Transfer only undamaged reusable hardware, confirm the rear caps seal correctly and verify lamp operation before completing surrounding trim.

A qualified workshop should examine surrounding supports for damage, complete the electrical tests and set the headlamp beam according to local requirements after installation.

Automotive Lighting Product Specifications

Wholesale Supply and Protective Packing

For wholesale supply, the lens should be isolated from carton pressure while the rear shell, adjusters and projecting mounting tabs are supported.

When requesting a quotation, provide the vehicle application, production period, required side, lighting technology, quantity and destination. Original-lamp photographs are useful when several versions exist.

Application-Specific Comparison Notes

For this right AUDI Q5 headlamp, the led lighting specification should be assessed together with the 2018 body application. Confirm that the headlamp sits naturally in the body opening and follows the bonnet, grille and fender lines without forced alignment.

The right Q5 lighting package should remain the reference during electrical review. Agree with the connector key, pin arrangement, latch direction and cable exit; LED or xenon versions may also require compatible control hardware.

When fitting the AUDI Q5 unit at the right front position, preserve even body gaps and the intended beam orientation. Use appropriate workshop procedures for removal and refitting, then confirm that vibration, panel pressure and cable routing do not stress the housing.

Frequently Asked Questions

Are left and right headlamps interchangeable?

No. This application requires the right side; bracket geometry, optical pattern and wiring position are side-specific.

When is professional beam aiming required?

Beam alignment should be checked after the unit is secured and every lighting function has been tested.

What should be checked before installation?

For the Q5, examine the vehicle supports, evaluate every fixing point, verify the connector and complete a no-force trial fit.

Why must the rear housing be compared?

A similar lens can conceal a different casing depth, cap arrangement or bracket offset, preventing correct seating in the body opening.

How can connector compatibility be reviewed?

Cross-check keying, terminal count, latch direction and wire exit, then determine any required ballast, driver or levelling motor.
