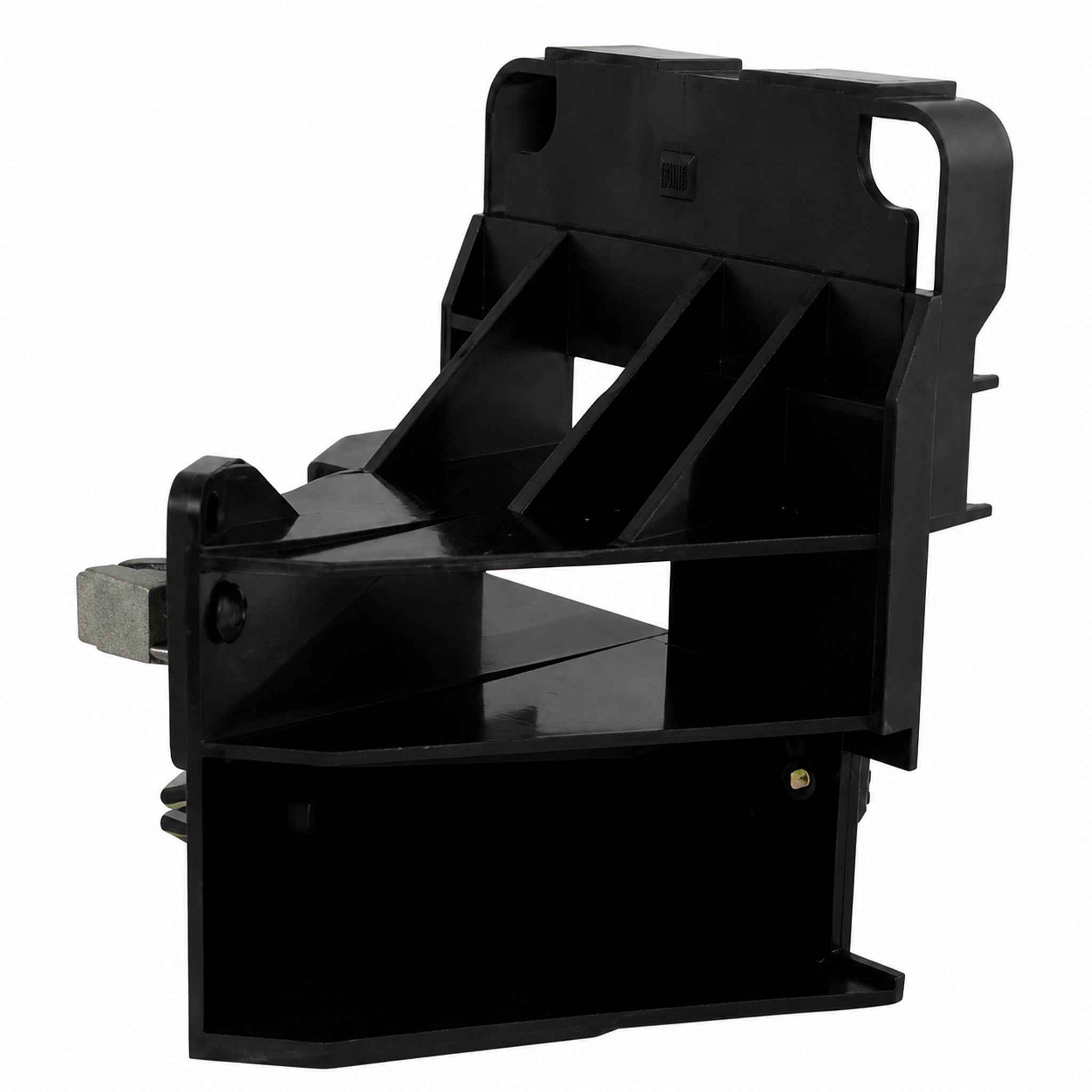

7S71-17K808-AA Front Radar Sensor Bracket for 2011 Ford Mondeo
Primary OE reference: 7S71-17K808-AA
Cross-reference 1: 7S71-17K808-AA
Product type: Front Parking Sensor Mounting Bracket
Applicable vehicle: 2011 FORD Mondeo
Installation position: Front bumper parking-sensor opening
Brand: FORD
Model: Mondeo
Vehicle year: 2011
Identification detail: sensor holder with bumper-specific seating face and angle-setting bore
Fitment verification: Confirm sensor diameter, holder angle, locating tabs, bumper opening and installation direction.
Installation guidance: Align the holder with the original marks and keep the sensor face square to the bumper surface.
Purchase reference: Quote SKU FD02048-005, OE number, bumper configuration, vehicle details and quantity.
7S71-17K808-AA Front Parking Sensor Mounting Bracket Overview
The bracket holds a front parking sensor at the designed height and angle in the 2011 Mondeo bumper.
Product-Specific Identification
Correct orientation is critical because the bracket determines the sensor’s detection cone. Compare the outer contour, locating tabs, bore diameter and the direction in which the sensor connector exits.
Bumper Installation Method
Clean the bumper mounting surface and preserve the original position marks. Seat the holder without twisting it, verify the sensor locks squarely in the bore and keep the connector clear of reinforcement hardware.
Sensor Detection Angle Control
7S71-17K808-AA is more than a retaining ring: its moulded angle aims the ultrasonic sensor. Preserve the original rotational position and check that paint or adhesive does not build up beneath the seating face, which could change the detection direction.
Parking-Aid Verification
Check that the sensor face remains flush with the bumper and points in the specified direction. Test the parking-aid field for false ground reflections or blind zones before finalising bumper trim.
Automotive Replacement Part Specifications
| Product type | Front Parking Sensor Mounting Bracket |
|---|---|
| Primary OE reference | 7S71-17K808-AA |
| Internal item code | FD02048-005 |
| Vehicle brand | FORD |
| Model | Mondeo |
| Vehicle year | 2011 |
| Applicable vehicle | 2011 FORD Mondeo |
| Installation position | Front bumper parking-sensor opening |
| Identification detail | sensor holder with bumper-specific seating face and angle-setting bore |
| Cross-reference numbers | 7S71-17K808-AA |
Trade Packing and Supply
Protect the sensor bore and locating tabs from distortion or impact. Label the package with FD02048-005, 7S71-17K808-AA and front-bumper position.
Frequently Asked Questions
What does 7S71-17K808-AA identify?
It identifies the front parking-sensor mounting bracket for the 2011 Ford Mondeo.
Why is bracket direction important?
The holder fixes sensor angle, which directly affects the parking-aid detection field.
What physical features should be compared?
Check bore diameter, seating face, locating tabs, connector exit direction and bumper contour.
What indicates incorrect installation?
A tilted or recessed sensor face, false obstacle warnings, ground reflections or an uneven detection zone.
What information supports a quotation?
Provide 7S71-17K808-AA, SKU FD02048-005, front-bumper location, destination and quantity.
