7P6 117 336 Rear Right Turbo Radiator Air Guide for 2011 VOLKSWAGEN Touareg
Primary OE reference: 7P6 117 336
Cross-reference 1: 7P6 117 336
Product type: Rear Right Turbo Radiator Air Guide
Applicable vehicle: 2011 VOLKSWAGEN Touareg
Installation position: Rear Right Turbo Radiator Area
Brand: VOLKSWAGEN
Model: Touareg
Vehicle year: 2011
Side / location: Rear right
Product form: Rear-position cooling-air guide
Product identification: Rear-right turbo-radiator deflector identified by its installation corner, tab pattern and OE reference.
Engineering purpose: Closes the rear-right section of the cooling-air route and aligns with adjoining shrouds in that corner.
Fitment check: Confirm rear-right placement for 7P6 117 336 and inspect all attachment edges before approval.
Wholesale enquiry: Quote requests should contain rear-right position, SKU, packing preference and shipment country.
7P6 117 336 Rear Right Turbo Radiator Air Guide Overview

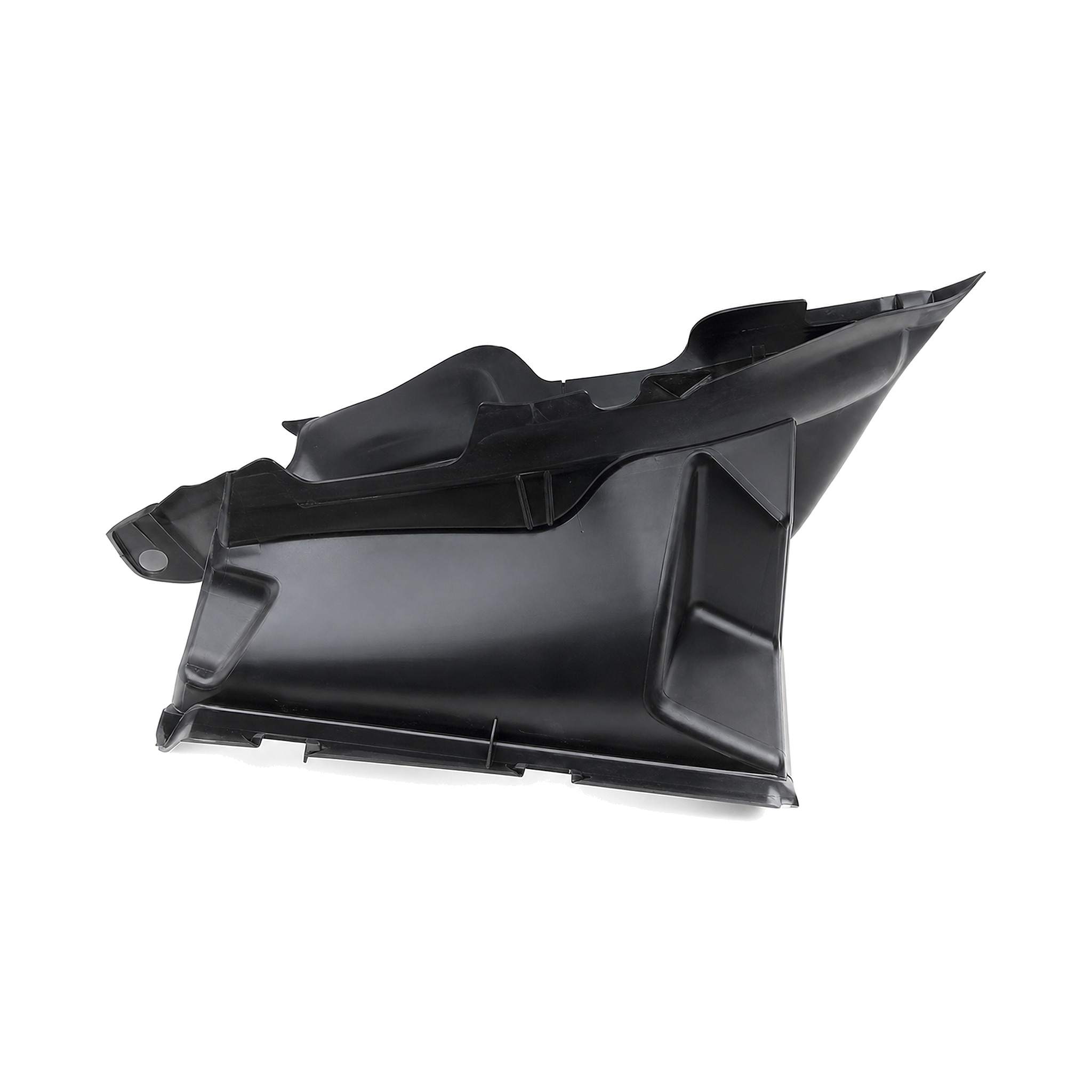

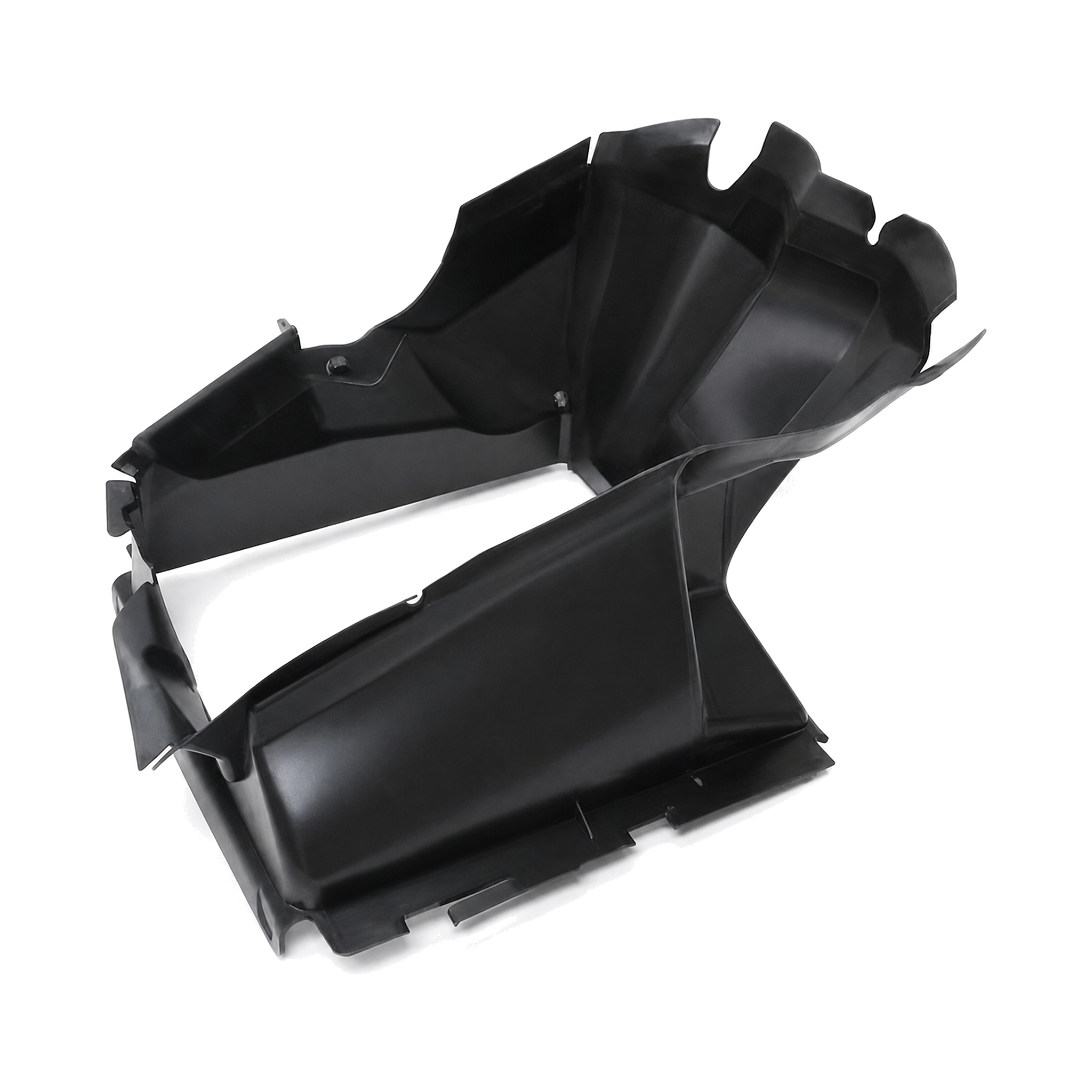

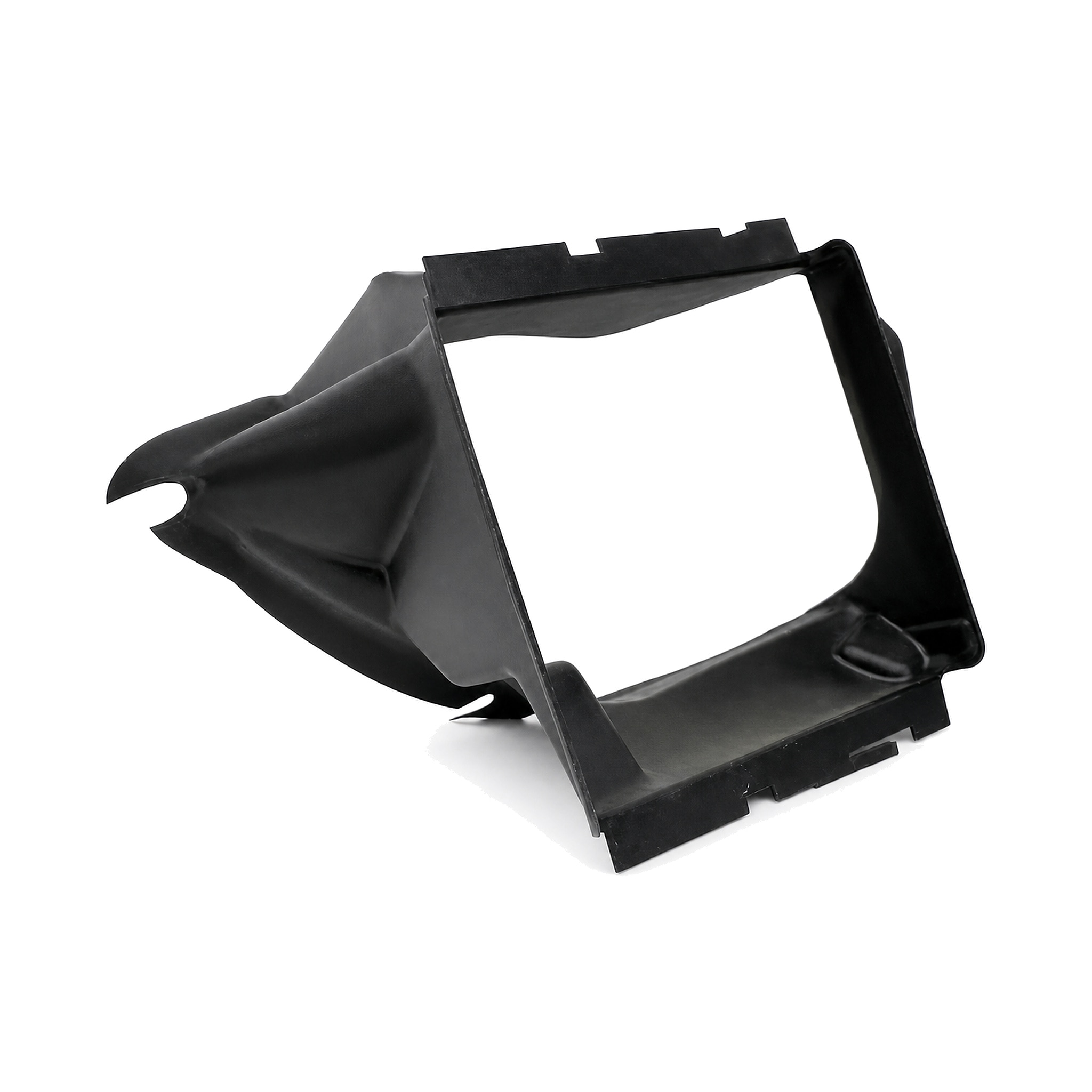

SKU VM04028-004 represents the rear-right cooling-air deflector carrying reference 7P6 117 336 for 2011 VOLKSWAGEN Touareg. The supplied views document its corner, molded edge and fixing layout.
Airflow Function and Component Design
At the rear-right corner, the deflector finishes the local duct boundary. Fitment with nearby shrouds determines whether the pathway remains continuous after installation.
OE, Vehicle and Position Matching
Confirm the rear-right installation zone, complete 7P6 117 336 reference and neighboring shield geometry. A physical comparison is useful where several guides were removed together.
Product Specifications
| Product type | Rear Right Turbo Radiator Air Guide |
|---|---|
| Primary OE reference | 7P6 117 336 |
| Internal item code | VM04028-004 |
| Vehicle brand | VOLKSWAGEN |
| Model | Touareg |
| Vehicle year | 2011 |
| Application | 2011 VOLKSWAGEN Touareg |
| Installation position | Rear Right Turbo Radiator Area |
| Product form | Rear-position cooling-air guide |
| Cross-reference numbers | 7P6 117 336 |
Receiving and Installation Guidance
Examine the rear-right panel for impact damage, then align its tabs in sequence. After assembly, confirm no edge contacts rotating or heat-sensitive components.
Wholesale and Distributor Supply
To quote VM04028-004, send the rear-right requirement, OE reference, quantity, packing preference and shipment country. Vehicle data should be confirmed before production release.
Frequently Asked Questions
How should 7P6 117 336 fitment be confirmed?
Confirm rear-right placement for 7P6 117 336 and inspect all attachment edges before approval.
What job does rear right turbo radiator air guide 7P6 117 336 perform?
Closes the rear-right section of the cooling-air route and aligns with adjoining shrouds in that corner.
Is 7P6 117 336 interchangeable from left to right or front to rear?
No. 7P6 117 336 is cataloged for the rear right position on 2011 VOLKSWAGEN Touareg; mounting geometry and surrounding clearances must match that location.
What should be inspected when 7P6 117 336 arrives?
Check the molded body, edges, tabs and connection areas for shipping damage, then compare the delivered VM04028-004 part with the approved product images before installation.
What information is needed for a wholesale quote on 7P6 117 336?
Quote requests should contain rear-right position, SKU, packing preference and shipment country.
