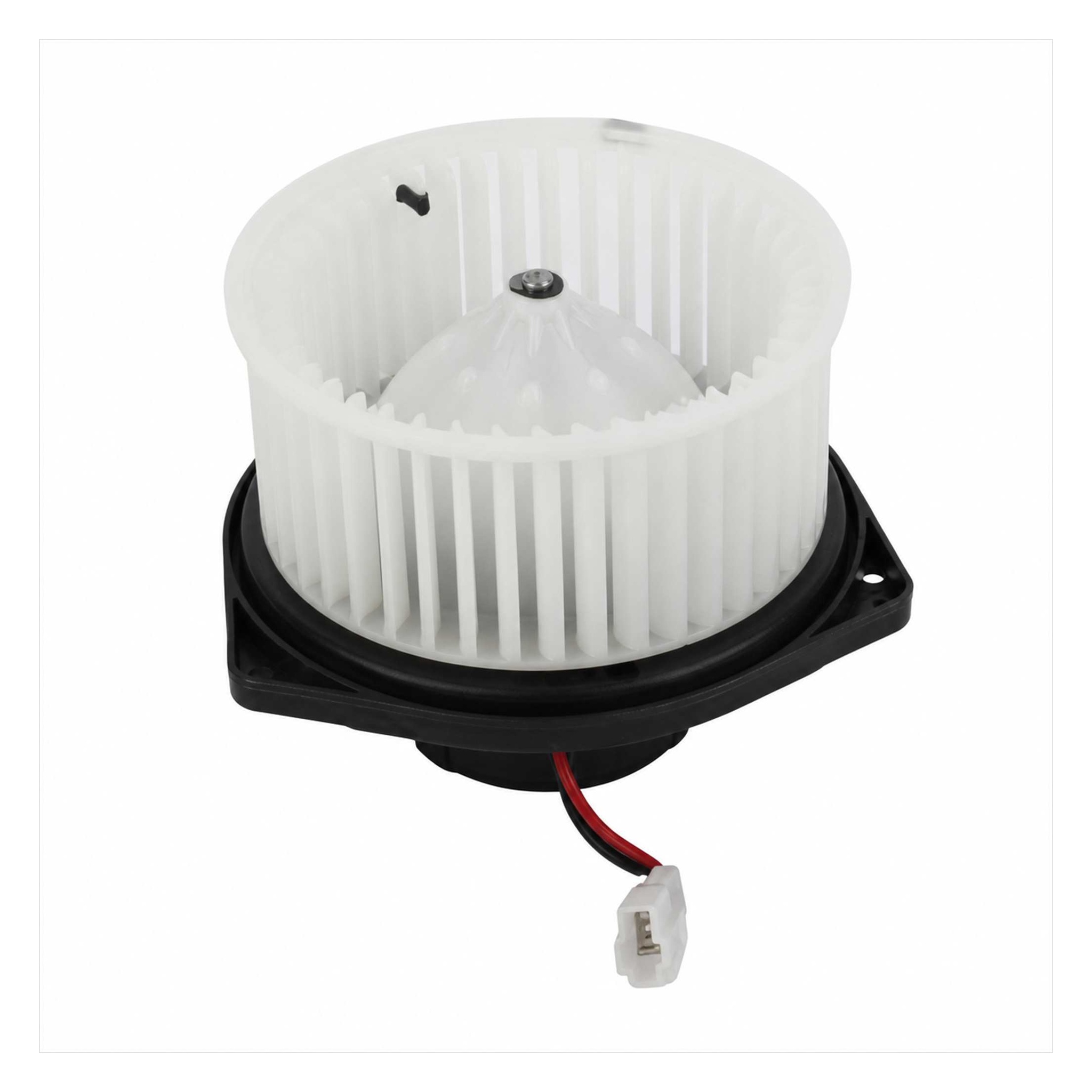

7802A105 Blower Motor for MITSUBISHI L200
Primary OE reference: 7802A105
Cross-reference 1: TIY40276-B09
Cross-reference 2: 34446J510
Cross-reference 3: 7425054J10
Cross-reference 4: 615-58639
Cross-reference 5: 7802A278
Product type: Automotive HVAC Blower Motor
Applicable vehicle: MITSUBISHI L200
Brand: MITSUBISHI
Model: L200
Electrical match: Confirm voltage, plug key and terminal count against the original motor
Motor interface: Compare flange contour, screw spacing and motor-body depth
Fan wheel check: Verify wheel diameter, height and rotation direction before ordering
HVAC function: The blower works with the cabin filter and air doors to provide controlled ventilation in recirculation or fresh-air mode.
Installation guidance: Transfer only serviceable seals or hardware specified for the application and confirm the connector locks without force.
Fitment basis: Check voltage, rotation direction, cable exit and the position of every locating tab against the existing blower.
Quotation information: Provide the OE number, vehicle application, quantity and delivery country
7802A105 Automotive Blower Motor Overview
This page records the pictured HVAC blower motor under OE reference 7802A105 for application-led sourcing.
For catalogue item 6215-017, Electrical input is converted into fan-wheel movement so the ventilation system can deliver air to face, floor and defrost ducts. Use 6215-017 when comparing this 7802A105 airflow configuration.
OE Reference and Application
The primary catalogue number is 7802A105. The recorded application is MITSUBISHI L200. For 6215-017, Measure the 7802A105 wheel height and outer diameter, then compare the electrical socket and base contour with the 7802A105 product photos. Record 6215-017 with the approved OE reference.
HVAC Interface and 7802A105 installation
During work on 6215-017, Clean leaves and debris from the HVAC inlet, inspect the cabin filter, and verify free wheel rotation after 7802A105 installation. Recheck 6215-017 before the lower trim is closed.
For item 6215-017, confirm that the 7802A105 centrifugal wheel clears its housing and that the 6215-017 connector lock engages without force. After seating 6215-017, test the available fan speeds and listen for rubbing, imbalance or intermittent electrical operation linked to 6215-017.
Automotive HVAC Blower Motor Specifications
| Product type | Automotive HVAC Blower Motor |
|---|---|
| Primary OE reference | 7802A105 |
| Cross-reference numbers | TIY40276-B09 / 34446J510 / 7425054J10 / 615-58639 / 7802A278 |
| Vehicle brand | MITSUBISHI |
| Vehicle model | L200 |
| Model year | Confirm by OE reference |
| 7802A105 installation area | Cabin HVAC / heater blower housing |
| Main interfaces | Electrical connector, mounting flange and centrifugal fan wheel |
| Fitment method | OE-number and physical-geometry comparison |
Quality and Trade Supply
For product 6215-017, Packing preparation accounts for the 7802A105 motor weight and wheel shape to reduce movement inside the carton. The 6215-017 record remains the picking reference.
For trade item 6215-017, To reduce selection errors, include the original-part photograph and connector view with the purchase list. Keep 6215-017 on the packing instruction.
Frequently Asked Questions
How should item 6215-017 and blower number 7802A105 be verified?
Match 6215-017 to the complete 7802A105 marking, then compare the 6215-017 plug, terminal count, mounting flange and wheel dimensions with the removed MITSUBISHI unit.
Can 6215-017 have more than one vehicle-side blower configuration?
Yes. MITSUBISHI production changes can affect 6215-017; confirm steering position, climate-control specification and the original 6215-017 geometry before approval.
What circuit checks are useful when 6215-017 does not operate?
For 6215-017, inspect the fuse, relay, speed resistor or controller, wiring and ground before replacing the 6215-017 motor again.
Which details should accompany a wholesale request for 6215-017?
Provide item 6215-017, OE 7802A105, the stated application, quantity and destination; add 6215-017 carton or private-label requirements separately.
How can noise be avoided after fitting 6215-017?
Clear debris from the air inlet, check that the 6215-017 wheel turns freely, seat the 6215-017 flange evenly and keep wiring away from the impeller.
Request a quote for 6215-017: Send 7802A105, the 6215-017 application and required quantity for a fitment and supply review.
