760-853-689-E-DPJ Left V8 Fender Badge for 2019 Volkswagen Touareg
Primary OE reference: 760 853 689 E DPJ
Cross-reference 1: 760 853 689 E DPJ
Product type: Left V8 Fender Badge
Applicable vehicle: 2019 VOLKSWAGEN Touareg
Installation position: Left front fender side-marker position
Brand: VOLKSWAGEN
Model: Touareg
Vehicle year: 2019
Visible identification: V8 side emblem with an elongated bright bezel

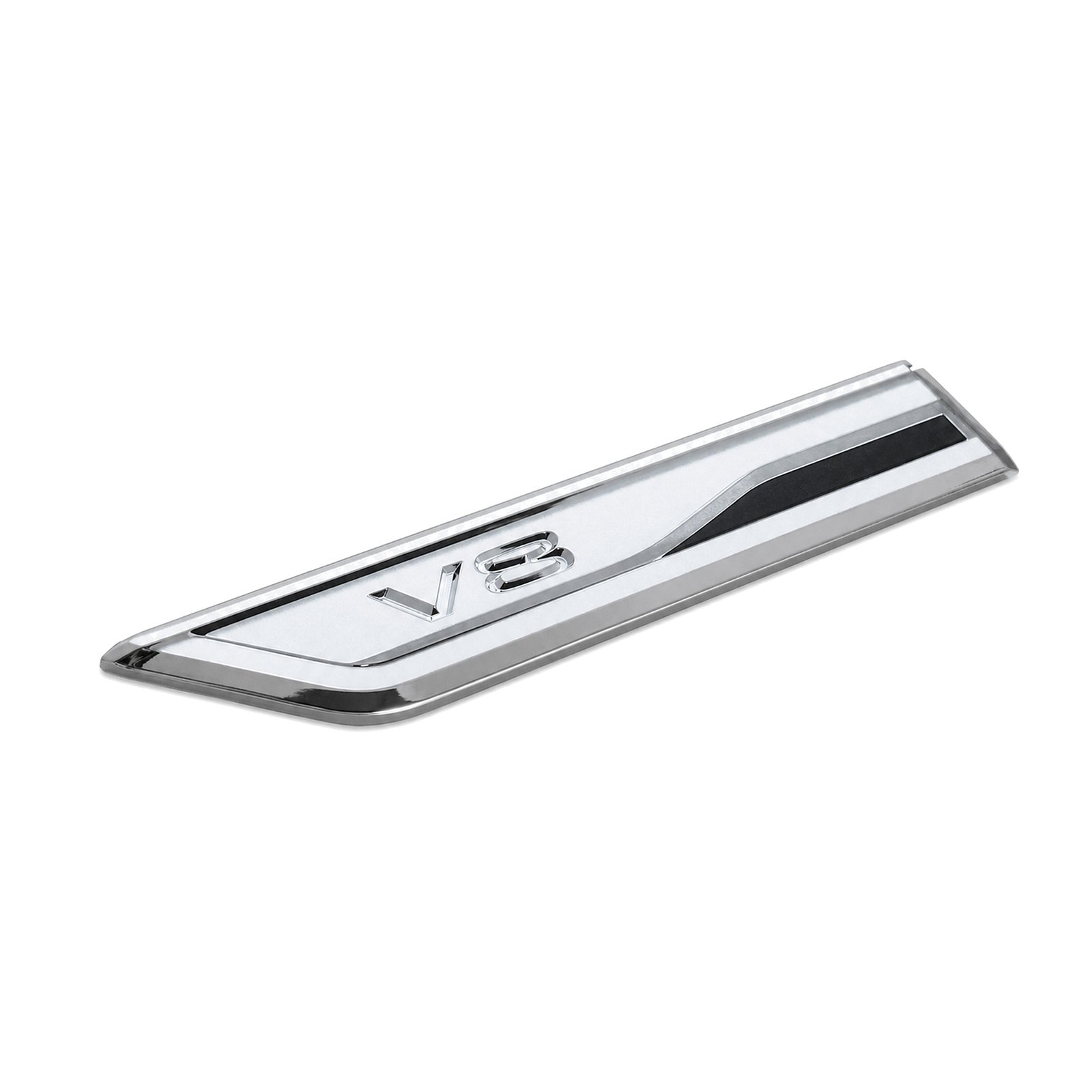

Image reference: one saved front view showing the raised V8 characters and dark horizontal insert
Position check: Compare the bezel thickness, point length and left-side mounting direction with the vehicle’s removed fender badge.
Surface appearance: silver bezel with black contrast panel
Installation preparation: Dry-fit the older profile in the left fender carrier, verify the top edge is level and inspect the point-to-panel clearance before locking it in place.
Handling guidance: Examine the bezel for waves under reflected light; distortion is noticeable on this long polished surface.
Receiving inspection: Examine the visible face, outer points and mounting side against image-01 before accepting 760 853 689 E DPJ.
Order information: Use OE 760 853 689 E DPJ to distinguish this profile from the revised S-suffix V8 badge.
Earlier V8 Bezel Profile
Reference 760 853 689 E DPJ is associated with the left-fender V8 side marker listed for the 2019 Volkswagen Touareg. It represents the earlier E-suffix bezel profile and should be kept distinct from the later S-suffix design in warehouse records.
Bezel Thickness and Upper Edge
The retained photograph shows raised V8 characters above a black horizontal channel inside a long polished surround. Pay particular attention to bezel thickness, the extended lower point and the amount of bright material visible above the lettering.
Distinguishing the Earlier E-Suffix Bezel
The E-suffix V8 bezel has its own balance between the raised characters and surrounding bright frame. Review the upper rail thickness and the shorter transition into the point. Recording these visual differences beside the SKU is more reliable than labelling both E- and S-suffix versions simply as a Touareg V8 badge.
E-Suffix Profile Confirmation
Use the original marker as a physical gauge for the carrier opening. The straight upper edge, depth of the side return and direction of the tapered end provide a more reliable match than the V8 text, which also appears on other body versions.
Automotive Replacement Part Specifications
| Product type | Left V8 Fender Badge |
|---|---|
| Primary OE reference | 760 853 689 E DPJ |
| Internal item code | VM02036-010 |
| Vehicle brand | VOLKSWAGEN |
| Model | Touareg |
| Vehicle year | 2019 |
| Applicable vehicle | 2019 VOLKSWAGEN Touareg |
| Installation position | Left front fender side-marker position |
| Visible marking | V8 side emblem with an elongated bright bezel |
| Surface appearance | silver bezel with black contrast panel |
| Cross-reference numbers | 760 853 689 E DPJ |
Older Bezel Dry-Fit
Before assembly, remove debris from the left fender recess and check that no damaged retainer remains in the panel. Rest the badge in position, inspect the gap at the point, and secure the supported end first to avoid bowing the bright bezel.
Separating V8 Revisions
Stock and shipping labels should retain the complete E DPJ suffix. For volume purchasing, include SKU VM02036-010, left-fender location, finish requirement and quantity; pack the pointed ends in individual protective pockets.
Frequently Asked Questions
What does 760 853 689 E DPJ identify?
It identifies the E-suffix left-fender V8 badge profile described for the 2019 Volkswagen Touareg.
Which visual measurements matter most?
Compare bezel thickness, upper-edge length, point projection and the black channel around the V8 characters.
How is this different from the S-suffix marker?
The two revisions have different outer profiles; use the complete OE suffix and the removed part for confirmation.
What should be inspected before fitting?
Check the fender carrier, receiving clips and tapered-end clearance while the badge is resting in the opening.
How should the emblem be packed?
Support the long polished face and isolate both points so the bezel cannot flex or rub during transport.
