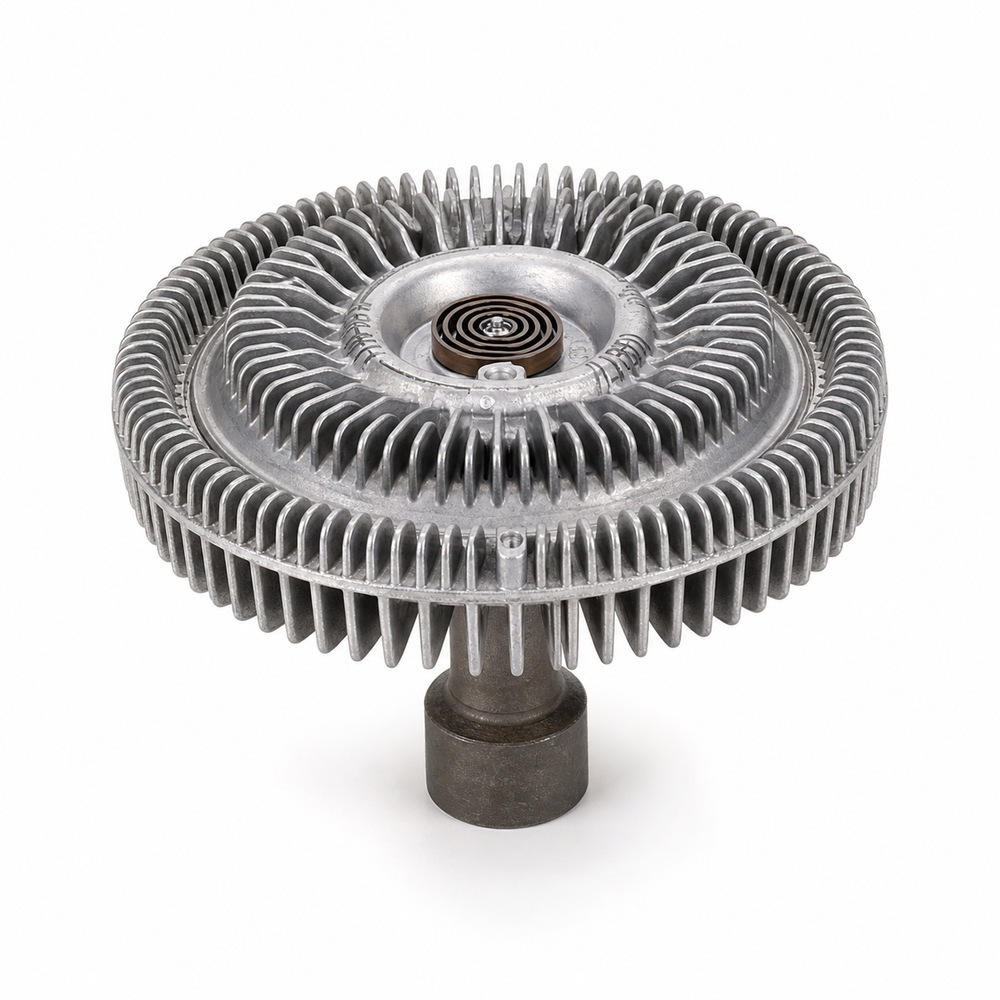

6L5Z8A616AA Viscous Fan Clutch Assembly for FORD
Product: Viscous Fan Clutch Assembly
Primary OE: 6L5Z8A616AA
Item code: FD01012-018
Cross-reference numbers:
HAYDEN:2779
Brand: FORD
Function: Supports temperature-responsive fan speed in the mechanical cooling system.
Supply: Catalogued for traceable OE sourcing and global aftermarket supply.
Fitment check: Use OE data with original-part photos; appearance alone is insufficient.
Quality note: Export preparation emphasizes clean interfaces and protected threads.
6L5Z8A616AA Viscous Fan Clutch Assembly for FORD
For FORD cooling-system service, this viscous coupling is catalogued under 6L5Z8A616AA. Item FD01012-018 separates the pictured hub from alternatives with different threads, offsets or engagement characteristics.
Thermal fan clutches are designed to engage progressively as cooling demand increases. Their response works together with the radiator, shroud, coolant circuit and belt-driven accessory system.
Product Technical Specifications
| Component | Viscous fan clutch assembly |
|---|---|
| Primary OE reference | 6L5Z8A616AA |
| Cross-reference numbers | HAYDEN:2779 |
| Vehicle brand | FORD |
| Model reference | Model not confirmed; verify by OE, engine and original unit |
| Yongshang Auto SKU | FD01012-018 |
| Supply position | Aftermarket wholesale replacement |
Cooling-Airflow Control
The fan clutch allows controlled slip when extra airflow is not needed, then transmits more torque as temperature rises. This reduces the drawbacks of a permanently rigid fan drive.
Bearing play, visible leakage, delayed temperature control or unusual fan speed justify inspection of the clutch, blade, water-pump hub and surrounding clearances.
Fitment Evidence to Compare
Send 6L5Z8A616AA, FORD engine details and original-part photographs when interchangeability is uncertain. Front, rear and side views are especially useful.
- Confirm the OE number and usable cross-references.
- Match vehicle model, engine, chassis and production period.
- Check drive-side thread or flange and rotation direction.
- Measure hub height, pilot diameter and fan bolt circle.
- Verify blade alignment and clearance inside the shroud.
Installation and Cooling-System Checks
Installation should be completed by a qualified technician. Follow the specified thread direction and torque procedure, inspect the fan and water-pump bearing, replace damaged hardware, and confirm that the blade rotates freely without contacting the radiator or shroud. Test the vehicle under the appropriate warm operating conditions after assembly.
Pre-Shipment Review
For repeat orders, sample records can compare hub dimensions, hole positions, surface finish and carton labeling with the approved reference.
Ordering Specification Notes
Before listing 6L5Z8A616AA / FD01012-018 for FORD, retain measurements of the removed clutch and note the applicable engine or chassis. A structured record improves catalogue accuracy, incoming inspection and technical communication with distributors and repair customers.
Wholesale and Procurement Information
Distributors sourcing 6L5Z8A616AA should use FD01012-018 in purchase orders and warehouse records. Include barcode, carton and shipment-document needs at quotation stage.
Frequently Asked Questions
Can I select 6L5Z8A616AA from the product photo alone?
No. Similar housings can have different threads, offsets, rotation or fan patterns, so physical and catalogue checks are required.
What other faults can resemble a weak fan clutch?
Radiator blockage, low coolant, thermostat faults, belt slip, damaged shrouds and water-pump problems can create similar symptoms.
May old mounting hardware be reused?
Only if the service information permits it and every fastener is undamaged. Follow the specified direction and torque.
Can export packing be adjusted for FD01012-018?
Carton protection, neutral labels and customer branding can be reviewed according to volume and destination.
How do I request a quote for FORD?
Send OE 6L5Z8A616AA, SKU FD01012-018, quantity, delivery country and any fitment or inspection evidence.
Request a 6L5Z8A616AA Fan Clutch Quote
Contact Yongshang Auto with 6L5Z8A616AA, FD01012-018, quantity and destination country for a fitment review and wholesale proposal for FORD.
Fitment notice: OE and model references support identification but do not replace engine-specific catalogue checks or comparison with the original fan clutch.
