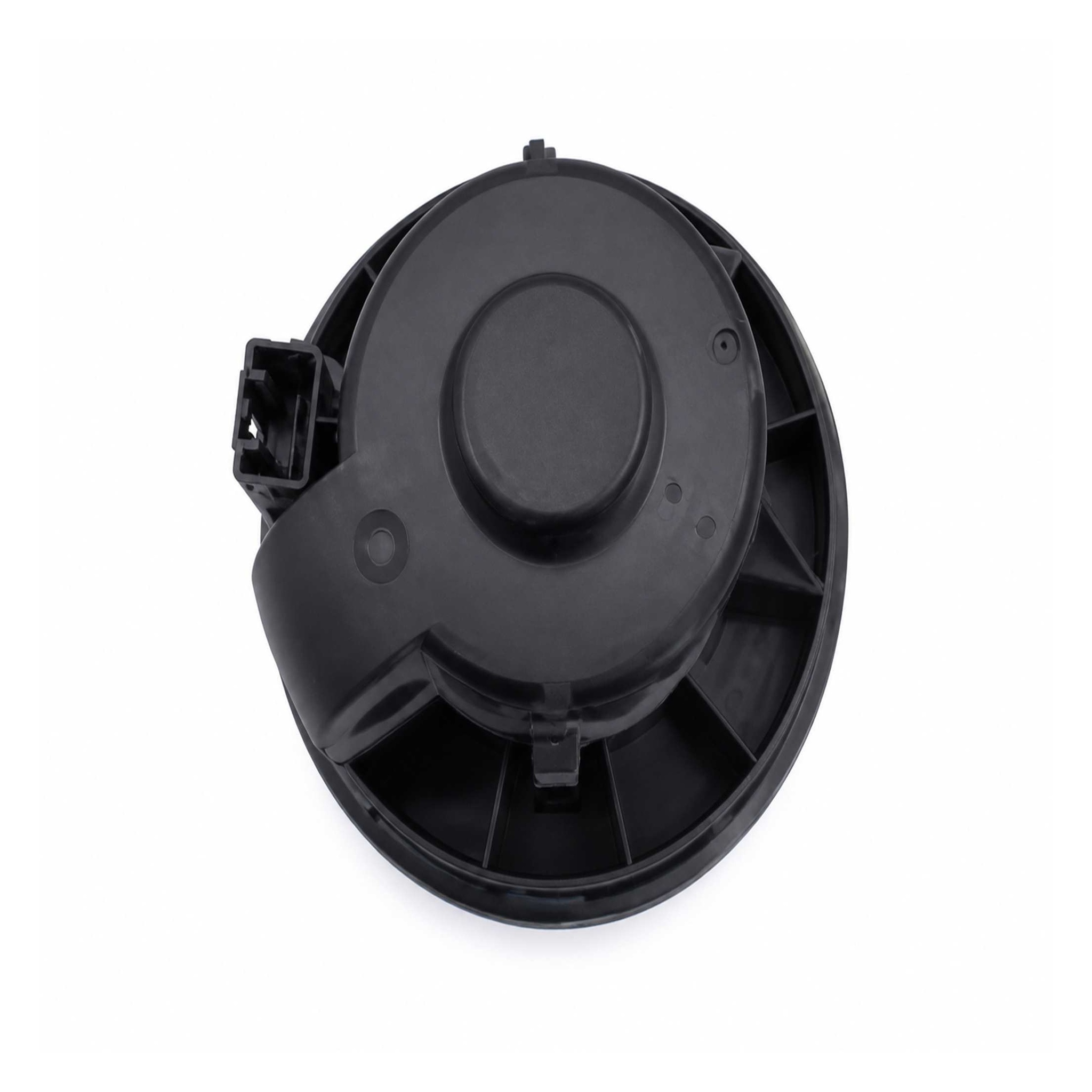

3M5H18456AD Blower Motor for FORD C-Max
Primary OE reference: 3M5H18456AD
Cross-reference 1: 715245
Cross-reference 2: 1362640
Cross-reference 3: 1716612
Cross-reference 4: 1696006
Cross-reference 5: 1326642
Cross-reference 6: 1379568
Cross-reference 7: 1548220
Cross-reference 8: 3M5H18456AB
Cross-reference 9: 3M5H18456AC
Cross-reference 10: 10361
Cross-reference 11: 1696010
Cross-reference 12: FO3126138
Product type: Automotive HVAC Blower Motor
Applicable vehicle: FORD C-Max
Brand: FORD
Model: C-Max
Electrical match: Confirm voltage, plug key and terminal count against the original motor
Motor interface: Compare flange contour, screw spacing and motor-body depth
Fan wheel check: Verify wheel diameter, height and rotation direction before ordering
HVAC function: When the climate-control circuit commands airflow, the electric motor rotates the fan wheel inside the HVAC housing.
Installation guidance: Support the motor during removal, keep wiring clear of the wheel, and test all commanded fan speeds before refitting panels.
Fitment basis: Check voltage, rotation direction, cable exit and the position of every locating tab against the existing blower.
Quotation information: Provide the OE number, vehicle application, quantity and delivery country
3M5H18456AD Automotive Blower Motor Overview
For cabin heating, ventilation and air-conditioning repairs, 3M5H18456AD is presented as the primary lookup number.
For catalogue item 6203-009, Stable wheel rotation helps distribute air without relying on vehicle speed, making the 3M5H18456AD blower important at idle and in traffic. Use 6203-009 when comparing this 3M5H18456AD airflow configuration.
OE Reference and Application
The primary catalogue number is 3M5H18456AD. The recorded application is FORD C-Max. For 6203-009, Match the 3M5H18456AD motor body depth, flange shape, connector lock and impeller profile instead of relying on the listed FORD vehicle name alone. Record 6203-009 with the approved OE reference.
HVAC Interface and 3M5H18456AD installation
During work on 6203-009, After 3M5H18456AD installation, operate low through high speed and confirm 3M5H18456AD airflow reaches the selected vents without abnormal vibration. Recheck 6203-009 before the lower trim is closed.
For item 6203-009, confirm that the 3M5H18456AD centrifugal wheel clears its housing and that the 6203-009 connector lock engages without force. After seating 6203-009, test the available fan speeds and listen for rubbing, imbalance or intermittent electrical operation linked to 6203-009.
Automotive HVAC Blower Motor Specifications
| Product type | Automotive HVAC Blower Motor |
|---|---|
| Primary OE reference | 3M5H18456AD |
| Cross-reference numbers | 715245 / 1362640 / 1716612 / 1696006 / 1326642 / 1379568 / 1548220 / 3M5H18456AB / 3M5H18456AC / 10361 / 1696010 / FO3126138 |
| Vehicle brand | FORD |
| Vehicle model | C-Max |
| Model year | Confirm by OE reference |
| 3M5H18456AD installation area | Cabin HVAC / heater blower housing |
| Main interfaces | Electrical connector, mounting flange and centrifugal fan wheel |
| Fitment method | OE-number and physical-geometry comparison |
Quality and Trade Supply
For product 6203-009, Reference labels and image records support traceable picking when visually similar blower motors share a shipment. The 6203-009 record remains the picking reference.
For trade item 6203-009, Mixed orders can be reviewed by SKU and OE list, with application details kept separate for warehouse picking. Keep 6203-009 on the packing instruction.
Frequently Asked Questions
How should item 6203-009 and blower number 3M5H18456AD be verified?
Match 6203-009 to the complete 3M5H18456AD marking, then compare the 6203-009 plug, terminal count, mounting flange and wheel dimensions with the removed FORD unit.
Can 6203-009 have more than one vehicle-side blower configuration?
Yes. FORD production changes can affect 6203-009; confirm steering position, climate-control specification and the original 6203-009 geometry before approval.
What circuit checks are useful when 6203-009 does not operate?
For 6203-009, inspect the fuse, relay, speed resistor or controller, wiring and ground before replacing the 6203-009 motor again.
Which details should accompany a wholesale request for 6203-009?
Provide item 6203-009, OE 3M5H18456AD, the stated application, quantity and destination; add 6203-009 carton or private-label requirements separately.
How can noise be avoided after fitting 6203-009?
Clear debris from the air inlet, check that the 6203-009 wheel turns freely, seat the 6203-009 flange evenly and keep wiring away from the impeller.
Request a quote for 6203-009: Send 3M5H18456AD, the 6203-009 application and required quantity for a fitment and supply review.
