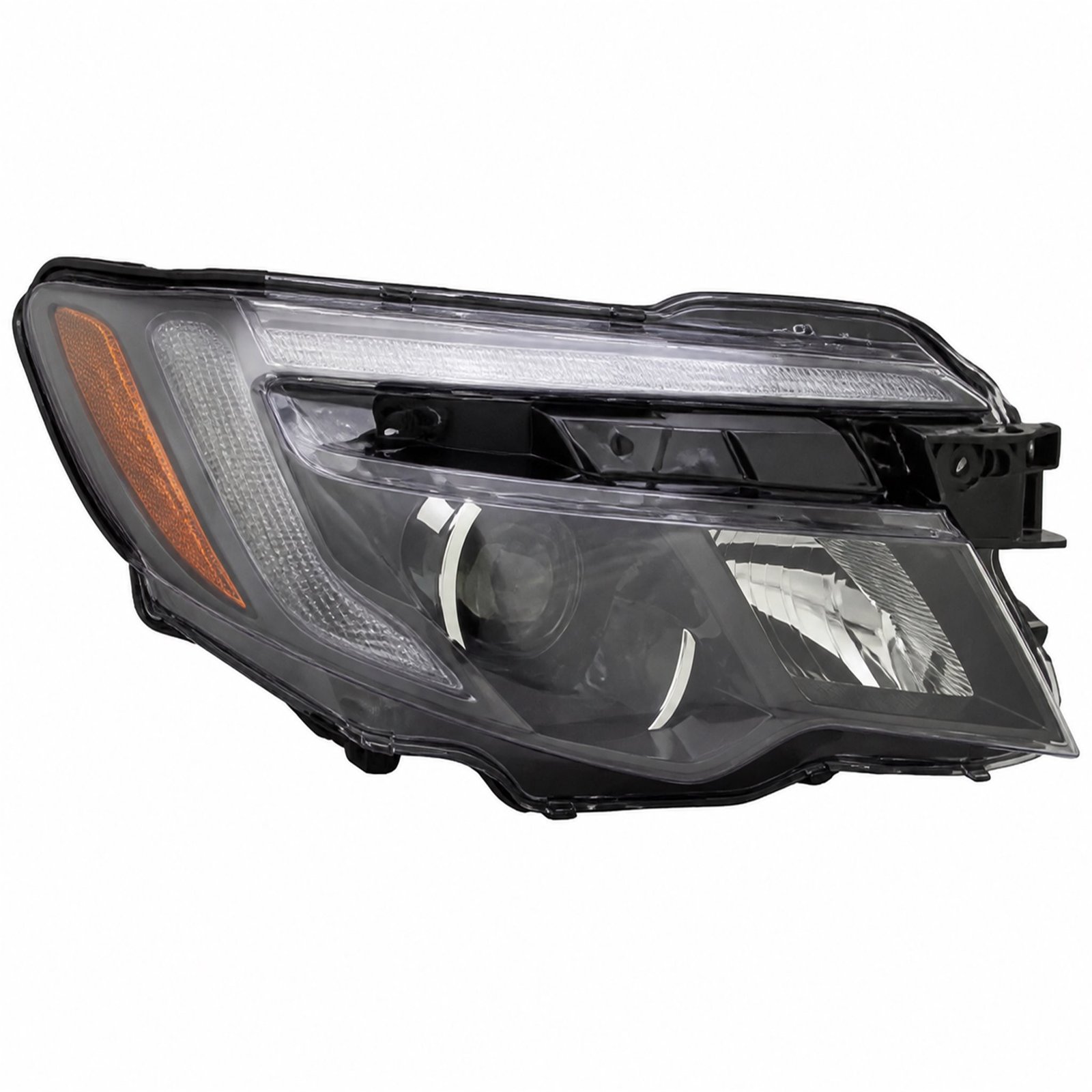

33100-TG7-A02 Head Light for HONDA Pilot Right

Head Light Assembly Overview

This replacement head light is intended for application-specific sourcing rather than universal installation. It is catalogued under OE reference 33100-TG7-A02 for HONDA Pilot, with the right position identified in the source record.

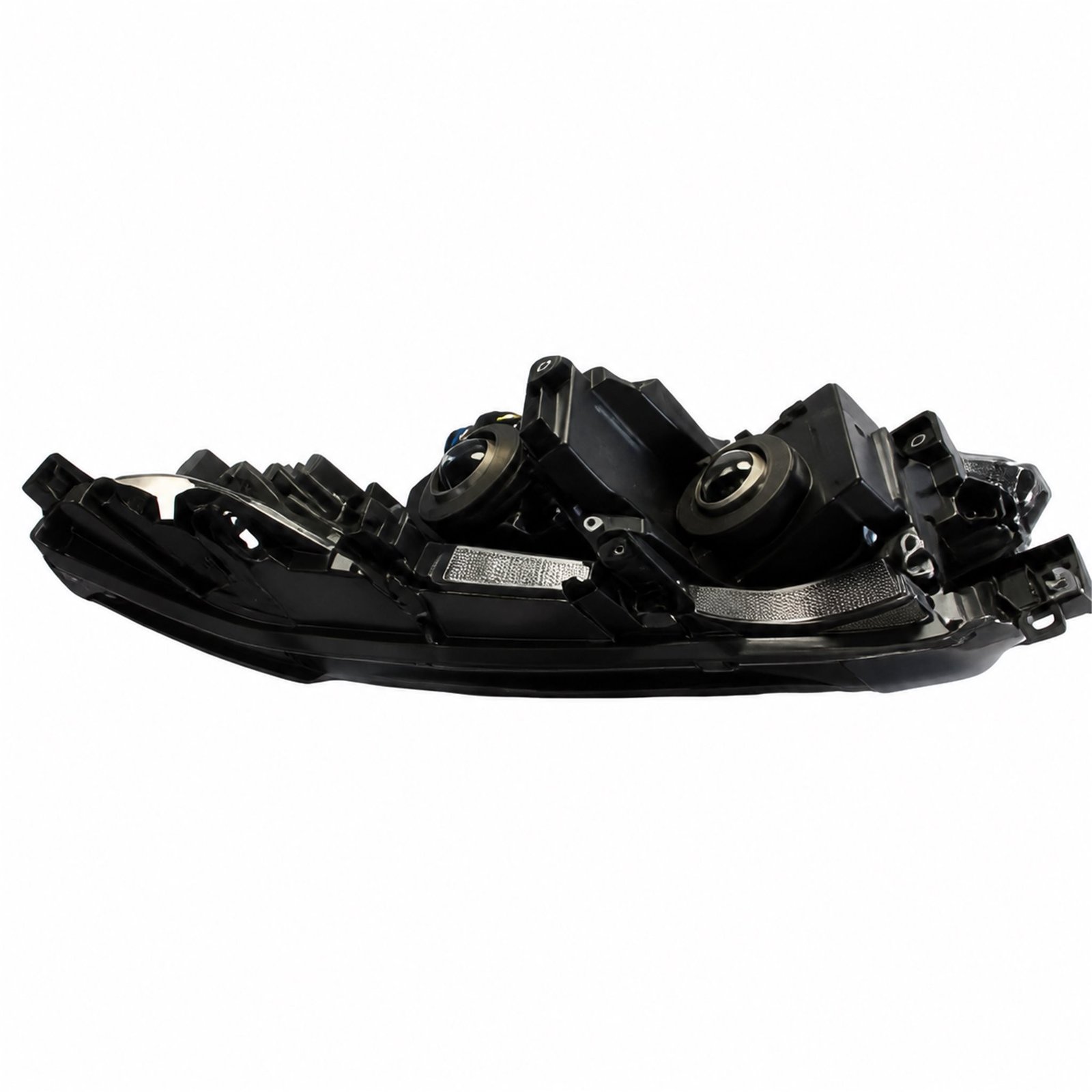

The photographed lens, internal optical layout, rear casing and attachment points should be reviewed as one system. A close-looking lamp from another trim or market can differ behind the body opening.

Lighting Function and Optical Configuration

Examine the lens pattern, internal bezel finish and optical modules so the requested unit matches the intended lighting package.

For the Pilot application, verify the lighting package fitted to the vehicle. Standard, projector, xenon and LED versions can use different internal modules, beam controls and daytime-light signatures.

Vehicle Fitment and Body Interface

Inspect the inner and outer corners of the housing as well as the gap to adjacent panels; these points often separate nearby variants.

Confirm that repaired body supports are square before judging lamp fit, because collision distortion can imitate a part mismatch.

Connector and Control Hardware

Do not use connector colour as the only selection point; terminal geometry, locking tabs and installed modules must also agree.

Confirm the supply scope shown in the product photographs. Bulbs, rear caps, levelling motors, ballasts, LED drivers and auxiliary brackets may vary between versions and should be checked separately.

Installation and Beam Alignment

Transfer only undamaged reusable hardware, confirm the rear caps seal correctly and verify lamp operation before completing surrounding trim.

A qualified workshop should examine surrounding supports for damage, complete the electrical tests and set the headlamp beam according to local requirements after installation.

Automotive Lighting Product Specifications

Wholesale Supply and Protective Packing

For repeat orders, retain the approved product photographs and application record so the same optical and mounting version is requested.

When requesting a quotation, supply the vehicle application, production period, required side, lighting technology, quantity and destination. Original-lamp photographs are useful when several versions exist.

Application-Specific Comparison Notes

For this right HONDA Pilot headlamp, the halogen lighting specification should be assessed together with the Confirm by production record body application. Review the complete lamp body from several angles because a similar lens can conceal a non-matching rear casing or bracket offset.

The right Pilot lighting package should remain the reference during electrical review. Review every plug and socket with the original unit and confirm whether the levelling motor, ballast or LED driver is included or transferred.

When fitting the HONDA Pilot unit at the right front position, preserve even body gaps and the intended beam orientation. Complete a no-force trial fit first; once the panel gaps are even, secure the unit and adjust the beam to workshop specifications.

Frequently Asked Questions

How can connector compatibility be reviewed?

Review keying, terminal count, latch direction and wire exit, then establish any required ballast, driver or levelling motor.

Can a headlamp be chosen by appearance alone?

No. The right lamp must also align with the optical system, electrical interface, mounting features and market specification.

How should the lamp be protected during shipping?

The lens needs isolation from carton pressure, while the rear housing and projecting tabs require stable internal support.

What photographs are useful for comparison?

Clear front, rear, connector and mounting-tab views help distinguish the required headlamp from a similar-looking alternative.

When is professional beam aiming required?

Beam alignment should be checked after the unit is secured and every lighting function has been tested.
