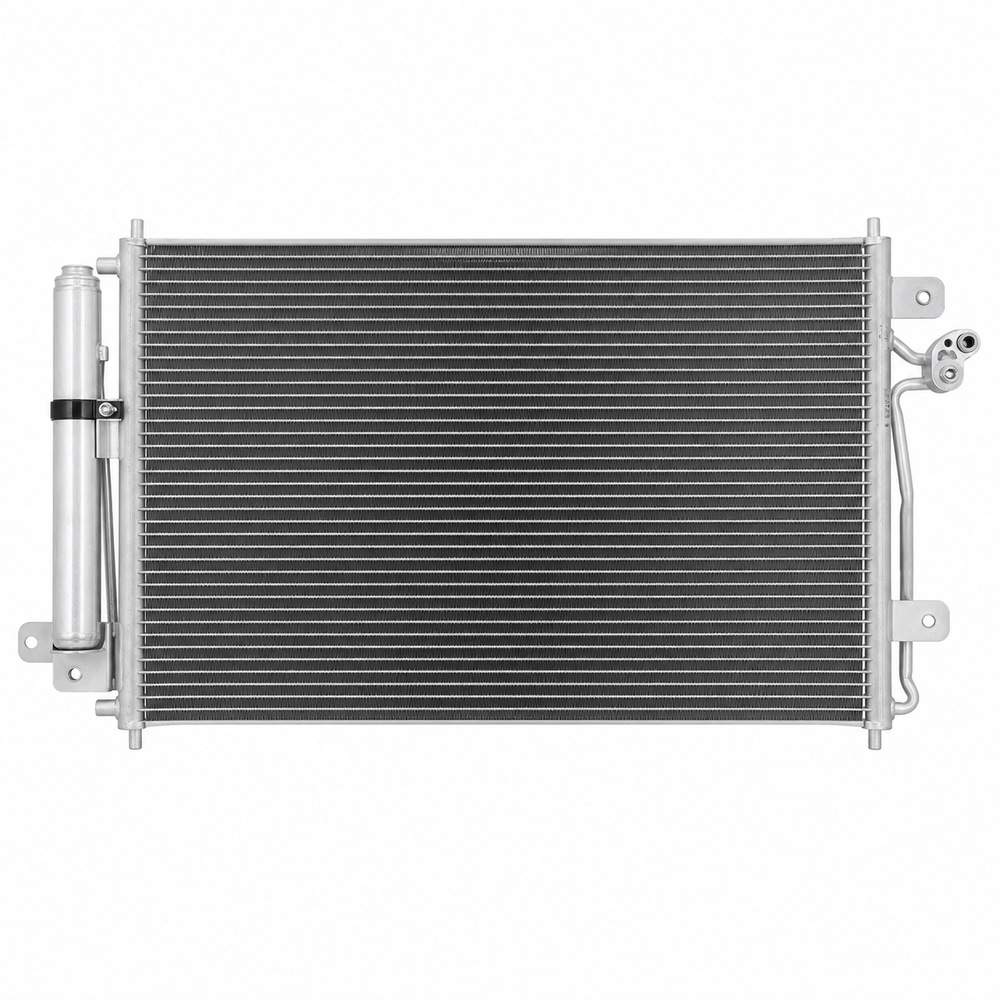

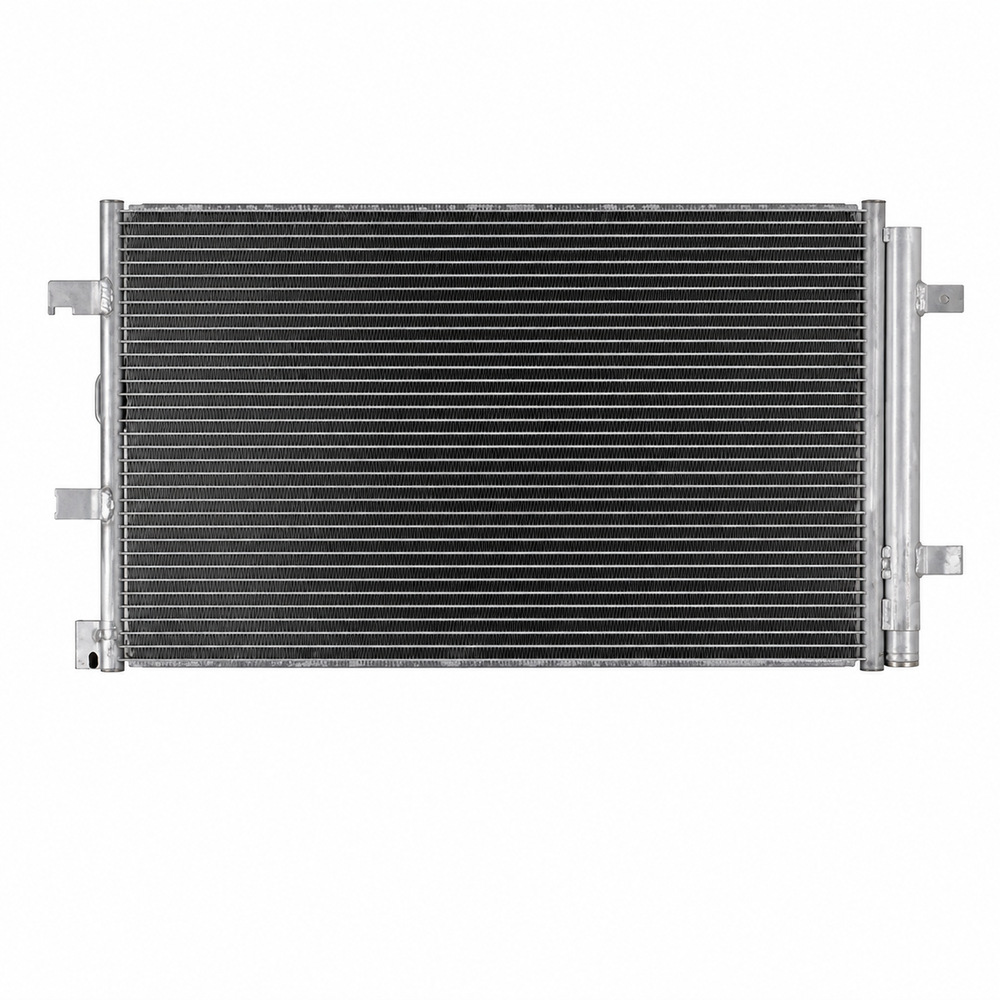

30023 A/C Condenser Assembly for AUDI A5
Product: A/C Condenser Assembly
Primary OE: 30023
Item code: AD01009-032
Cross-reference numbers:
4G0260403N
8T0.260.403
Brand: AUDI
Model: A5
Function: Helps the climate-control system remove refrigerant heat without restricting frontal airflow.
Supply: Available for sample evaluation, batch purchasing and export cooling-system programmes.
Fitment check: Complete a physical and catalogue comparison before installation approval.
Quality note: Sampling inspection can check geometry, handling condition and packaging protection.
30023 A/C Condenser Assembly for AUDI A5
Specified for comparison with AUDI A5 A/C hardware, the unit shown is organized under 30023. Reference AD01009-032 when submitting order quantities and destination details.
The condenser is both a pressure vessel and a heat exchanger. Selection therefore requires more than a similar outline: port style, bracket location, dryer arrangement and core size must also agree.
Product Technical Specifications
| Component | A/C condenser assembly |
|---|---|
| Primary OE reference | 30023 |
| Cross-reference numbers | 4G0260403N; 8T0.260.403 |
| Vehicle brand | AUDI |
| Model reference | A5 |
| Yongshang Auto SKU | AD01009-032 |
| Supply position | Aftermarket wholesale replacement |
How the Condenser Supports Cabin Cooling
As the front heat exchanger in the climate-control circuit, the condenser must combine low airflow restriction with sound refrigerant passages. Bent fins or internal contamination can reduce cooling capacity.
Normal cooling depends on the complete system: condenser airflow, fan operation, compressor condition, refrigerant charge, clean lines and properly sealed connections must work together.
Vehicle and Component Matching
Confirm 30023 against the removed AUDI A5 component and the vehicle record. Check port positions, mounting tabs, core thickness and any integrated dryer before approving the order.
- Confirm the primary number and each usable cross-reference.
- Match vehicle year, engine, market and production period.
- Compare core width, height, thickness and overall frame size.
- Check fittings, pipe angles, brackets and dryer configuration.
- Review original-part photographs when application data is incomplete.
Professional Installation and System Protection
Professional evacuation and recharge are required because the condenser contains high-pressure refrigerant. Follow local handling rules and the vehicle manufacturer’s repair information.
Quality-Control Options
Export preparation can combine appearance inspection with part-number labeling, corner protection and carton checks for safer distribution.
Ordering Specification Notes
To reduce selection risk for AUDI A5, treat 30023 and AD01009-032 as the start of the specification rather than the whole specification. Add physical dimensions, port and flange type, mounting locations, dryer configuration and vehicle production data. The resulting checklist can be reused for sample approval, batch inspection, customer support and later replenishment orders.
Wholesale and Procurement Information
For an export proposal, identify 30023, item AD01009-032, shipment terms and packing preference. Technical confirmation should be completed before commercial approval.
Frequently Asked Questions
Why is VIN or production-date checking important for AUDI A5?
A manufacturer may revise fittings or dryer layout during a model run, even when the vehicle name remains unchanged.
Can bent fins affect condenser operation?
Extensive fin damage or blockage can reduce airflow and heat transfer; the complete front cooling stack should be inspected.
What happens if compressor debris is present?
Contamination can circulate through the A/C system. Follow the repair manual for flushing and replacement of affected components.
Does Yongshang Auto support trial quantities of 30023?
Sample enquiries are welcome. Availability, inspection and packing can be confirmed against SKU AD01009-032.
How are bulk-order details controlled?
The OE, SKU, quantity, labeling and carton requirements are recorded together before production or dispatch.
Request a 30023 Condenser Quote
Contact Yongshang Auto with 30023, AD01009-032, quantity and delivery country for a product review and wholesale proposal for AUDI A5.
Fitment notice: OE and model references support identification but do not replace VIN-based catalogue checks or comparison with the original condenser.
