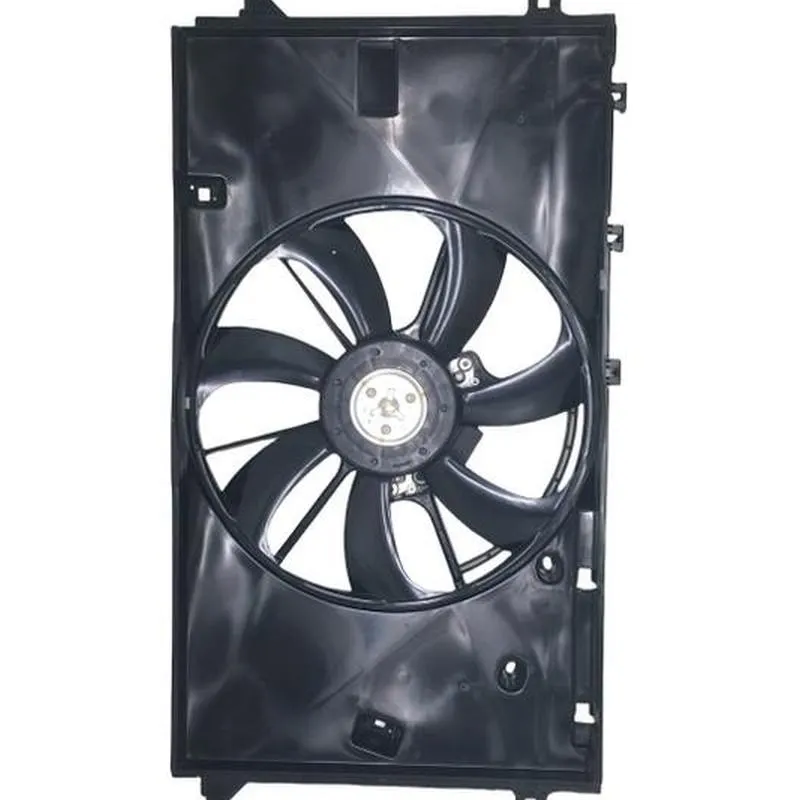

16711-F2040-XX Radiator Fan for TOYOTA C-HR
Item: Radiator Fan Assembly
Product Reference: 6110-088
Primary Part Number: 16711-F2040-XX
OE Cross References:
26580-1000
16363-47060
16363-47050
16711-F2010
268500-1010
Listed Application: TOYOTA CH-R | TOYOTA IZOA
Configuration: Supplied in the photographed product configuration
Selection Features: Cooling-system component identification using OE, vehicle and connector evidence
Pre-Shipment Check: Functional operation and visible assembly condition checked for wholesale shipment
MOQ: From 5 pieces
Packaging: Neutral or customized packaging available
Typical Delivery: 30–45 days, subject to quantity and destination
Fitment Check: Send the VIN, original label and product photographs when multiple fan layouts exist.
OE 16711-F2040-XX Engine Cooling Fan Overview
This radiator fan assembly is catalogued under OE reference 16711-F2040-XX for TOYOTA CH-R | TOYOTA IZOA and is supplied for professional replacement and wholesale sourcing.
This is an application-specific airflow assembly, not a universal fan, so its electrical and mechanical interfaces must correspond to the vehicle.
Reference and Application Summary
- Assembly: Electric radiator fan assembly
- Key OE number: 16711-F2040-XX
- Related references: 26580-1000, 16363-47060, 16363-47050, 16711-F2010, 268500-1010
- Vehicle reference: TOYOTA CH-R | TOYOTA IZOA
- Supplier item number: 6110-088
- Delivery form: Match the product photographs supplied on this page
Airflow Role and Diagnosis
Typical investigation begins when airflow is absent at low speed, the temperature rises while stationary, or the fan produces mechanical noise.
Diagnosis should separate an electrical command fault from a mechanical motor or blade problem before the new part is ordered.
How to Confirm Compatibility
Compatibility should be decided from combined evidence: OE reference, TOYOTA CH-R | TOYOTA IZOA details, original-part images, connector form and installation dimensions.
Clear reference data reduces returns and helps the quotation cover the exact radiator fan configuration required.
Pre-Shipment Review
The dispatch review compares the item to the order record and checks exterior condition around the fan, shroud and connector.
The radiator and nearby components should be protected from impact while the old fan and shroud are removed.
Product Technical Specifications
| Product type | Radiator Fan Assembly |
|---|---|
| Primary OE reference | 16711-F2040-XX |
| Cross-reference numbers | 26580-1000 16363-47060 16363-47050 16711-F2010 268500-1010 |
| Internal item code | 6110-088 |
| Vehicle brand | TOYOTA |
| Vehicle model | C-HR |
| Model year | 2040 onward |
| Installation position | Radiator / front cooling-module area |
| Product function | Provides forced airflow through the radiator area to support heat exchange at low vehicle speed |
B2B Ordering Support
Trade orders are supported from initial part-number review through packing and global delivery coordination.
Neutral or customized packaging can be discussed, and a 12-month warranty is available under the agreed supply terms.
Common Procurement Questions
How long does delivery normally take?
Plan approximately 30–45 days, while the quotation will state the current production and dispatch schedule.
What is checked before shipment?
The dispatch check covers the product configuration, electrical interface, fan or shroud condition and key installation points.
Does an overheating vehicle always need a new fan?
High temperature has multiple possible causes; verify the electrical command, airflow and coolant circuit before parts replacement.
How do I confirm this radiator fan fits my vehicle?
Send the VIN, original-part photos and dimensions so the application and visible configuration can be reviewed.
Request a Quote: Send OE 16711-F2040-XX, vehicle details, quantity and destination for fitment review and a wholesale quote.
