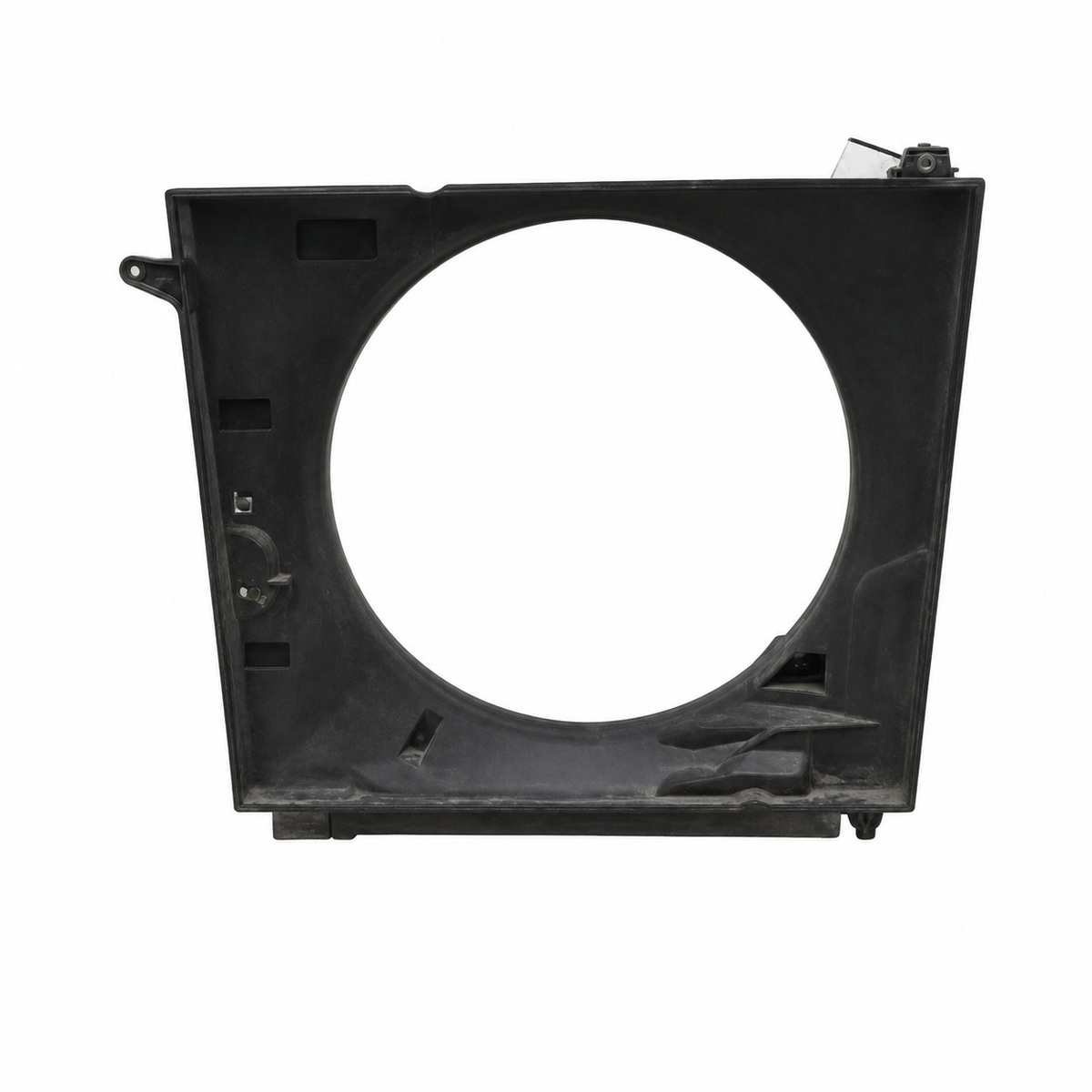

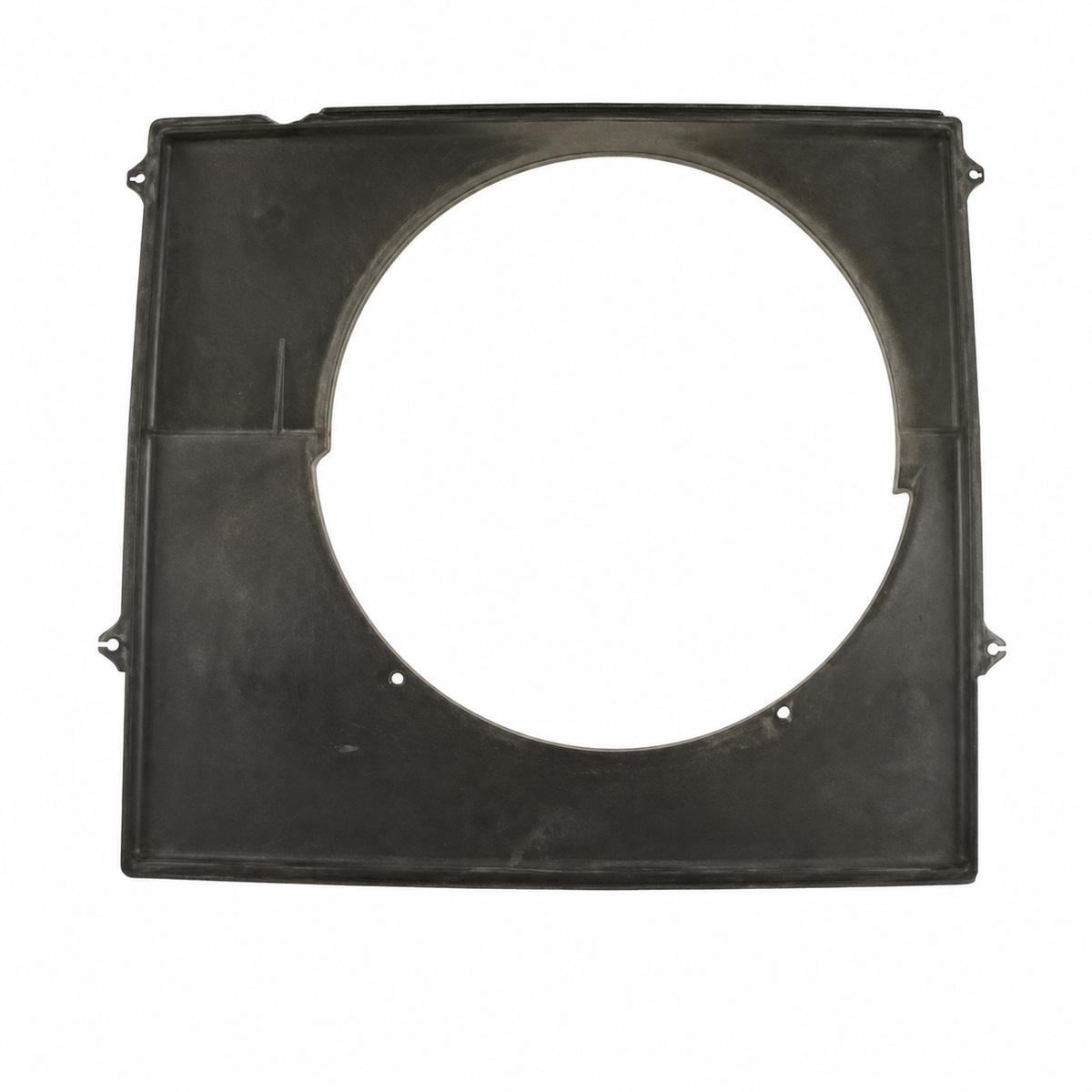

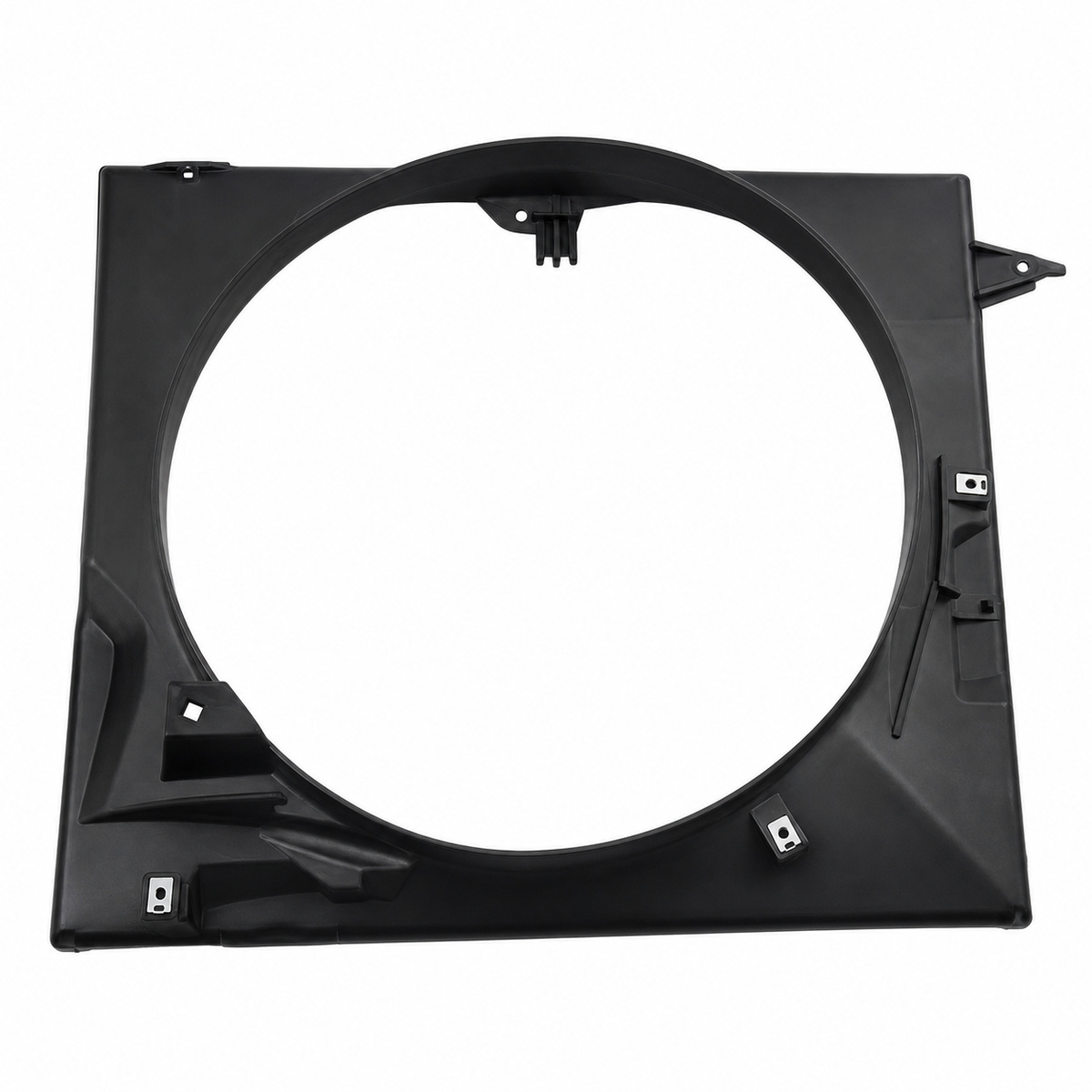

16711-31490 Radiator Fan Shroud for TOYOTA
Product: Radiator Cooling Fan Shroud
Primary OE: 16711-31490
Item code: TY01014-007
Cross-reference numbers:
16711-31490
Brand: TOYOTA
Cooling role: Positions the fan opening relative to the 4Runner radiator assembly.
Fitment check: Use VIN, engine option, model year and side-by-side dimensional comparison.
Supply note: North American service buyers should include destination and packaging standards.
16711-31490 radiator fan shroud is presented for TOYOTA OE identification and wholesale sourcing. An application-specific 4Runner fan shroud reference for OE-number comparison and service-part purchasing.
Product Technical Specifications
| Product type | Radiator Cooling Fan Shroud |
|---|---|
| Primary OE reference | 16711-31490 |
| Internal item code | TY01014-007 |
| Vehicle brand | TOYOTA |
| Cross-reference numbers | 16711-31490 |
Fan Position and Core Coverage
The shroud positions the mechanical fan within a controlled opening and guides pull-through airflow across the heat exchanger.
VIN and Option-Code Checks
Toyota 4Runner applications around the 2010-2011 platform; VIN and cooling-option confirmation remain necessary. Compare the removed part from both sides and rotate the fan by hand after installation to verify safe clearance.
Service Symptoms and System Checks
A missing shroud section can allow hot under-bonnet air to circulate back toward the fan. Diagnose coolant flow, radiator condition and fan-drive engagement before assigning the complaint to one part.
Transit Damage Screening
Check the tall side channels, reservoir or hose attachment points and all bolt holes against an undamaged original. Packing should support the frame without placing concentrated load on thin edges or mounting tabs.
Service-Part Enquiry Data
North American application enquiries should include VIN, engine size, model year and radiator-option information. Sample approval, batch photographs, neutral packing and buyer-specific labels can be discussed for B2B orders.
Frequently Asked Questions
Is a VIN useful when sourcing 16711-31490?
Provide 16711-31490, SKU TY01014-007, vehicle or chassis data, quantity, destination, packing needs and clear photos of the removed part.
What if the OE marking is unclear?
Compare overall width and height, fan-opening diameter, installed depth, mounting-hole spacing and all hose or clip clearances.
How is frame twist detected?
Reject broken mounting ears, stress whitening, brittle edges, a non-circular fan opening or distortion that changes fan clearance.
What related parts deserve inspection?
Match 16711-31490 to the original moulding number, toyota 4runner applications around the 2010-2011 platform; vin and cooling-option confirmation remain necessary.
What data speeds up wholesale pricing?
The shroud limits air bypass and keeps the fan working across the radiator face; cracks, missing sections or excess clearance can reduce that effect.
Request a 16711-31490 Fan Shroud Quote
Send OE 16711-31490, SKU TY01014-007, quantity, destination and original-part evidence to Yongshang Auto for application review and a wholesale proposal.
Fitment notice: OE and vehicle references support identification, but they do not replace VIN-, engine- or chassis-specific catalogue checks and direct comparison with the removed fan shroud.
