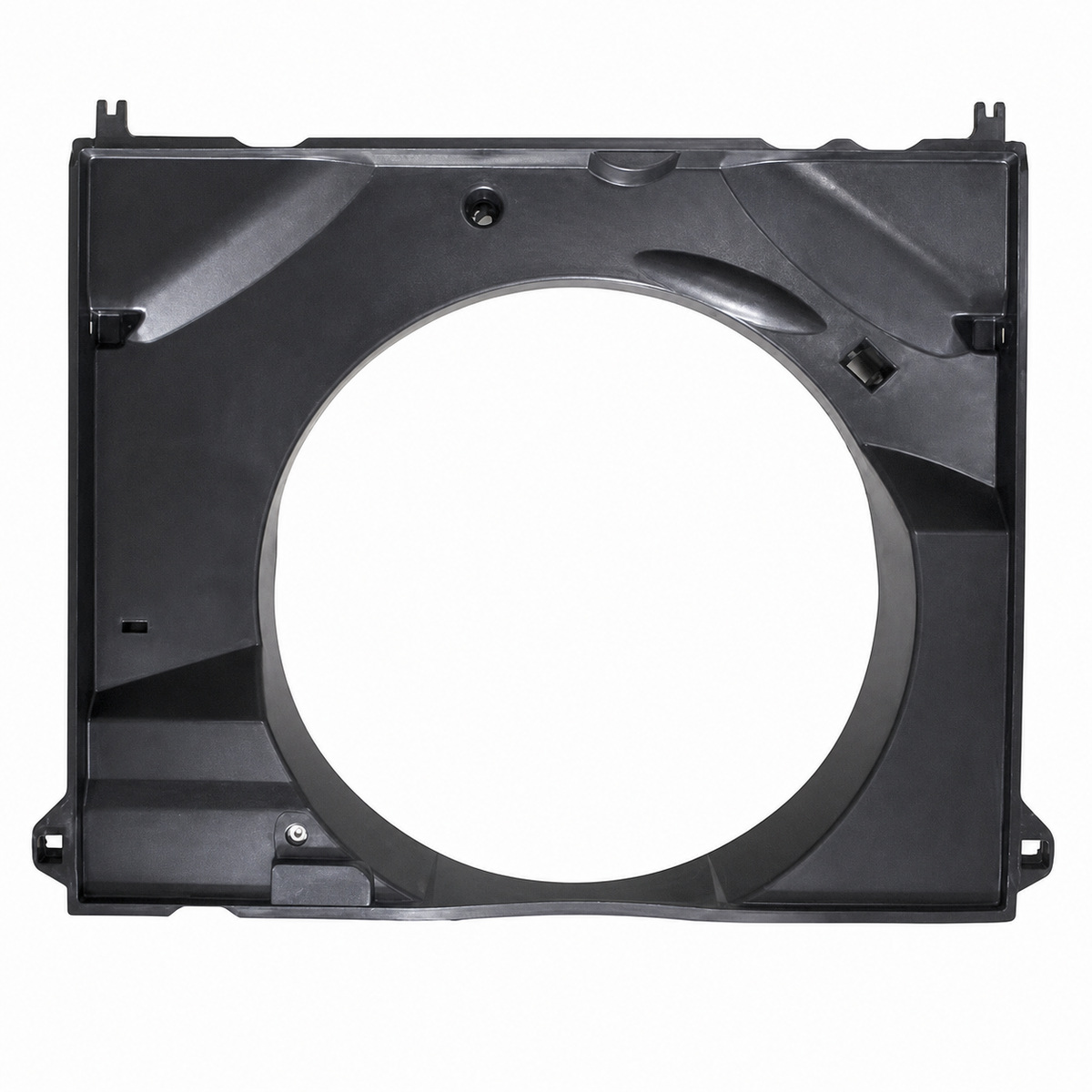

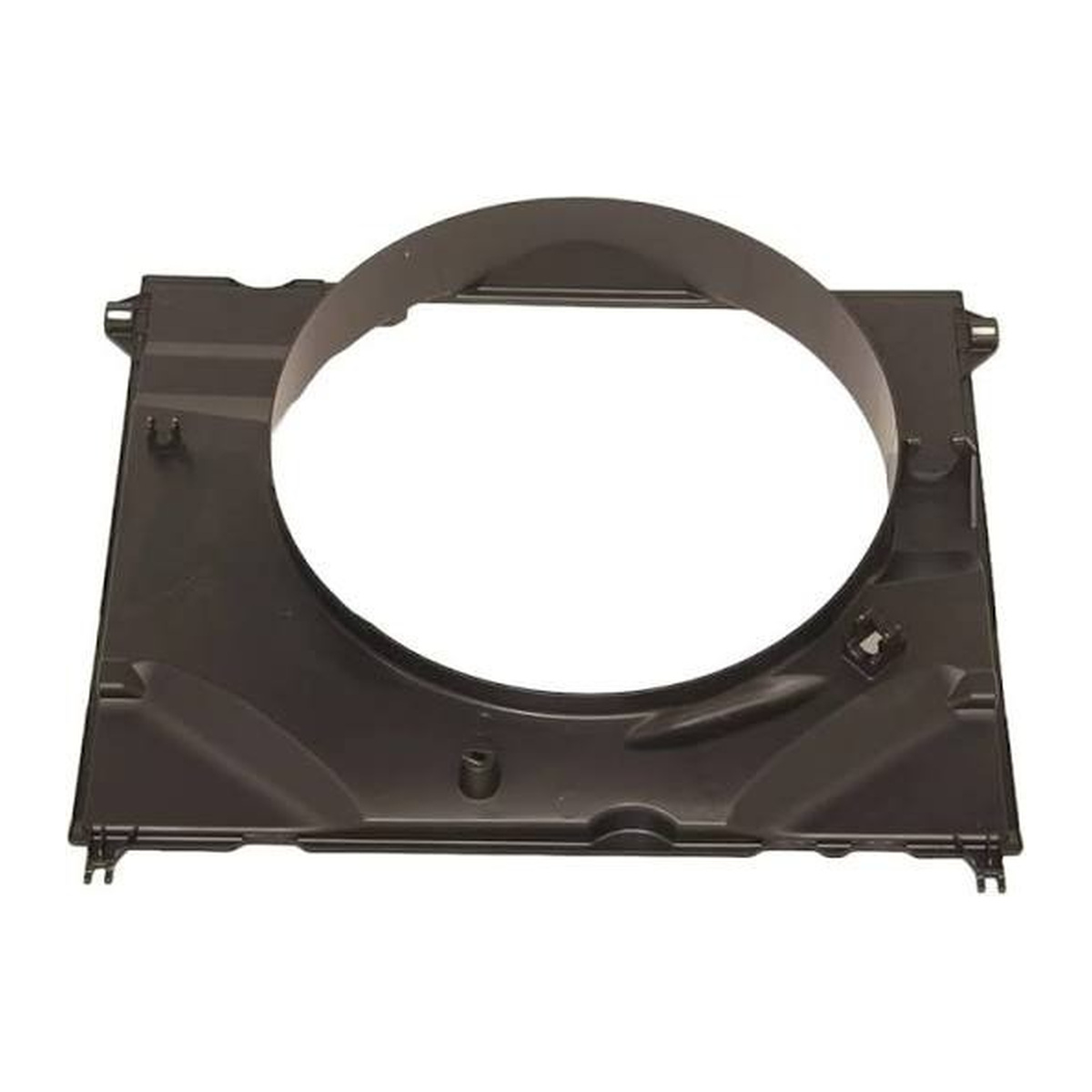

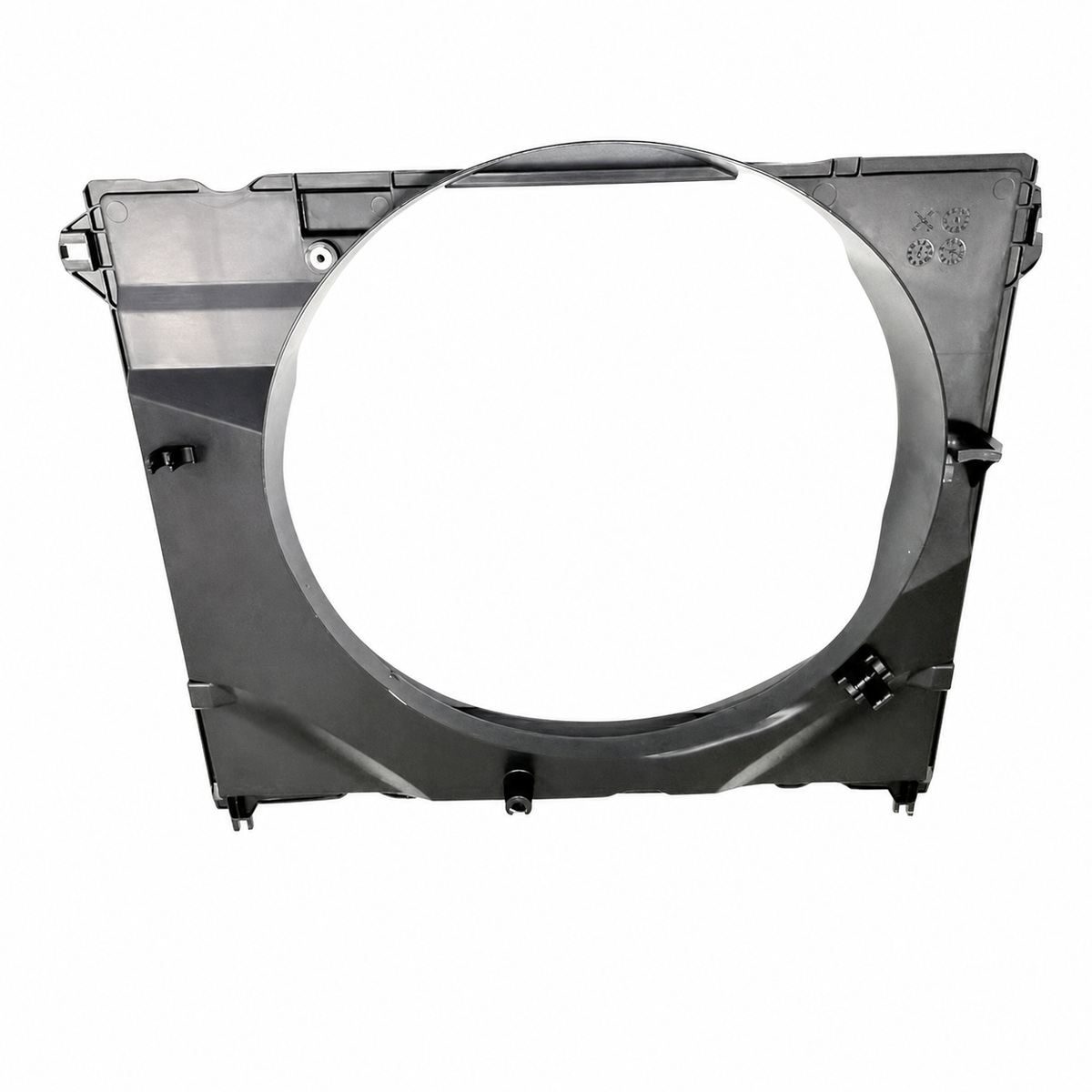

16711-0L140 Radiator Fan Shroud for TOYOTA
Product: Radiator Cooling Fan Shroud
Primary OE: 16711-0L140
Item code: TY01014-004
Cross-reference numbers:
16711-0L140
Brand: TOYOTA
Cooling role: Guides fan suction across the cooling stack on later Hilux Revo packages.
Fitment check: Verify GD-series engine, chassis code, fan clearance and every fixing point.
Supply note: Supports Revo-market carton marks, private labels and approved-sample records.
16711-0L140 radiator fan shroud is presented for TOYOTA OE identification and wholesale sourcing. A later-generation Toyota fan-guide reference prepared for Hilux Revo replacement and export sourcing.
Product Technical Specifications
| Product type | Radiator Cooling Fan Shroud |
|---|---|
| Primary OE reference | 16711-0L140 |
| Internal item code | TY01014-004 |
| Vehicle brand | TOYOTA |
| Cross-reference numbers | 16711-0L140 |
Shroud Duty at Low Vehicle Speed
Its shaped air guide is intended to keep fan suction aligned with the radiator on later GD-series vehicle packages.
Engine and Chassis Confirmation
Toyota Hilux Revo diesel applications, also reported across selected Fortuner and Innova frames; catalogue confirmation is required. Compare the removed part from both sides and rotate the fan by hand after installation to verify safe clearance.
Service Symptoms and System Checks
Fan contact is not automatically a shroud defect. Worn engine mounts, an incorrect fan clutch, loose radiator supports or prior collision repair can shift the installed relationship.
Batch Consistency Controls
Review the broad upper flange, asymmetric mounting points and molded ribs for cracks, sink marks or twist. Packing should support the frame without placing concentrated load on thin edges or mounting tabs.
Repeat-Order Documentation
Revo distributors should specify chassis code, engine family and any carton-label language before quotation. Sample approval, batch photographs, neutral packing and buyer-specific labels can be discussed for B2B orders.
Frequently Asked Questions
What vehicle data is needed for 16711-0L140?
The shroud limits air bypass and keeps the fan working across the radiator face; cracks, missing sections or excess clearance can reduce that effect.
How is fan clearance checked?
Provide 16711-0L140, SKU TY01014-004, vehicle or chassis data, quantity, destination, packing needs and clear photos of the removed part.
Why can two shrouds look similar?
Compare overall width and height, fan-opening diameter, installed depth, mounting-hole spacing and all hose or clip clearances.
What is checked before dispatch?
Reject broken mounting ears, stress whitening, brittle edges, a non-circular fan opening or distortion that changes fan clearance.
How should repeat orders be documented?
Match 16711-0L140 to the original moulding number, toyota hilux revo diesel applications, also reported across selected fortuner and innova frames; catalogue confirmation is required.
Request a 16711-0L140 Fan Shroud Quote
Send OE 16711-0L140, SKU TY01014-004, quantity, destination and original-part evidence to Yongshang Auto for application review and a wholesale proposal.
Fitment notice: OE and vehicle references support identification, but they do not replace VIN-, engine- or chassis-specific catalogue checks and direct comparison with the removed fan shroud.
