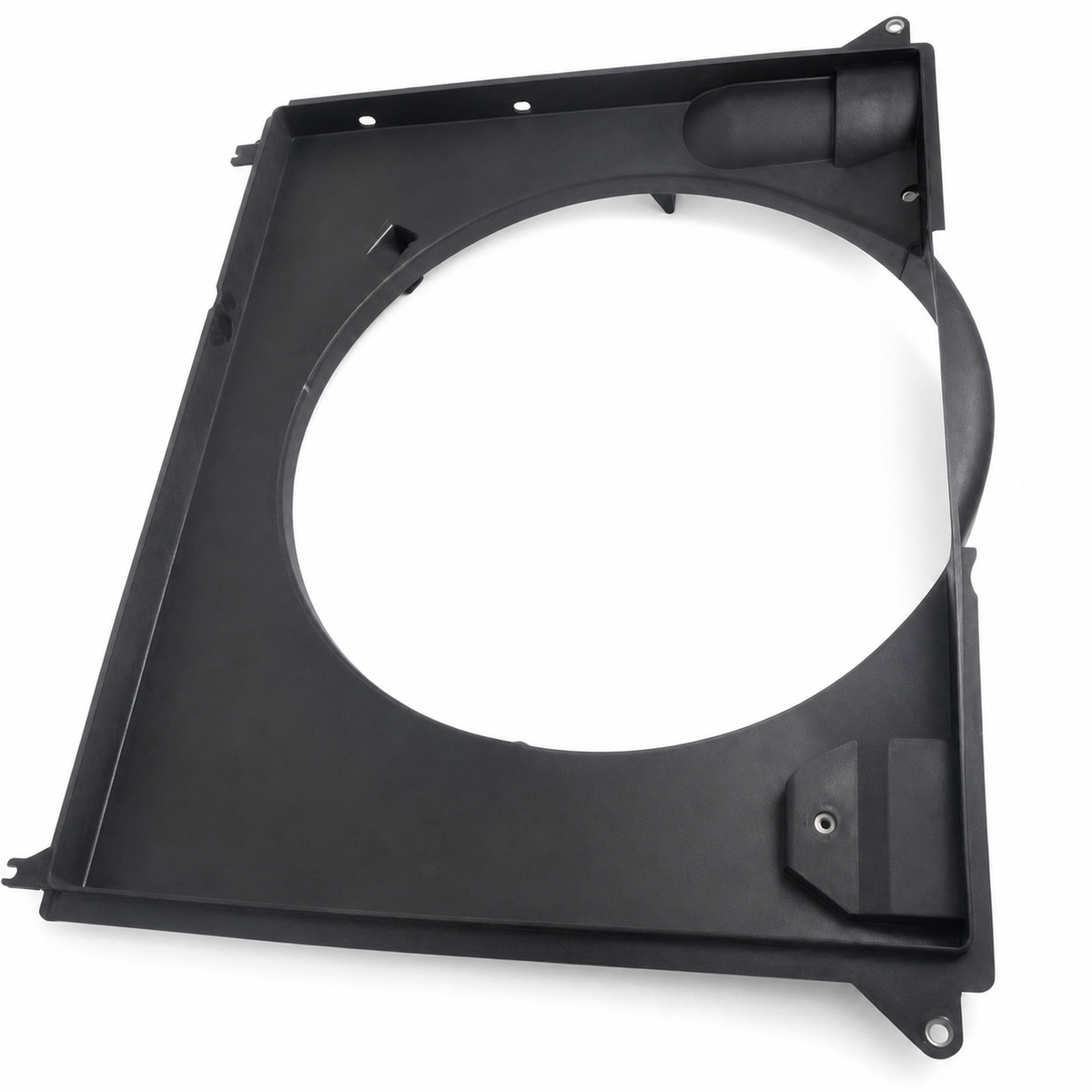

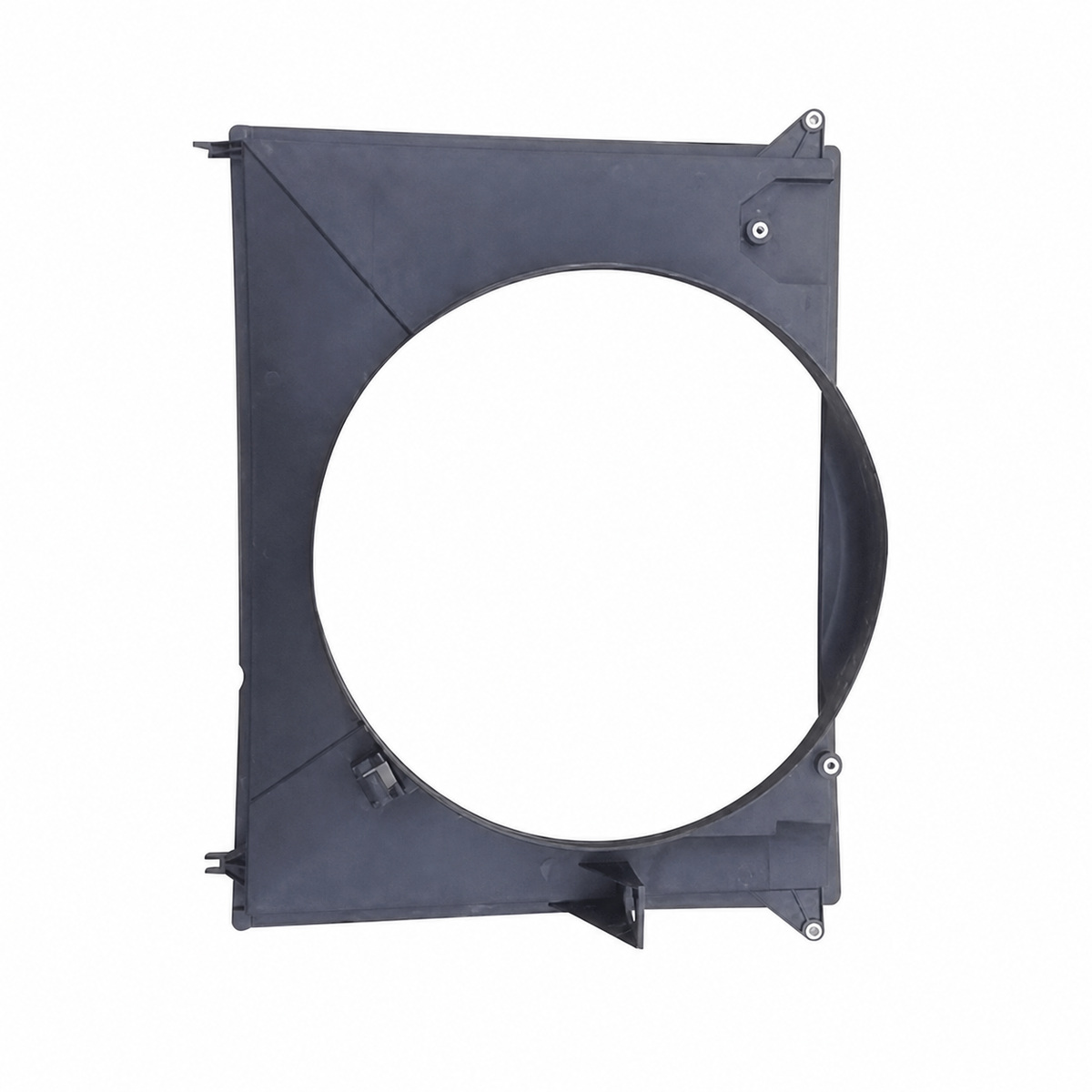

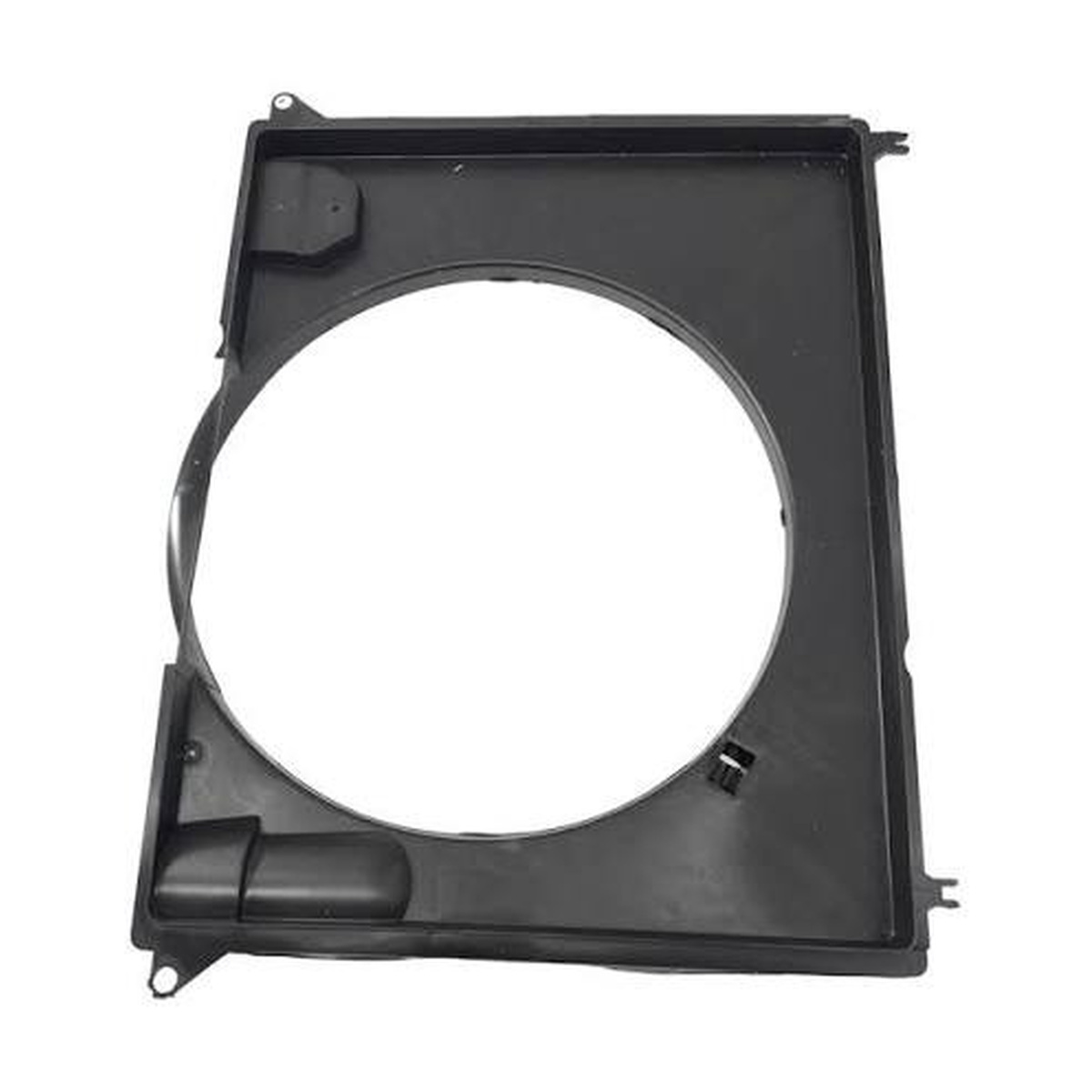

16711-0L050 Radiator Fan Shroud for TOYOTA
Product: Radiator Cooling Fan Shroud
Primary OE: 16711-0L050
Item code: TY01014-003
Cross-reference numbers:
16711-0L050
Brand: TOYOTA
Cooling role: Forms the radiator-side air path used by Toyota diesel fan systems.
Fitment check: Check engine code, overall depth, aperture size and lower-edge profile.
Supply note: Prepared for diesel-workshop, wholesaler and export consolidation enquiries.
16711-0L050 radiator fan shroud is presented for TOYOTA OE identification and wholesale sourcing. Built around the 16711-0L050 identification number used in widely serviced Toyota diesel platforms.
Product Technical Specifications
| Product type | Radiator Cooling Fan Shroud |
|---|---|
| Primary OE reference | 16711-0L050 |
| Internal item code | TY01014-003 |
| Vehicle brand | TOYOTA |
| Cross-reference numbers | 16711-0L050 |
Why the Fan Ring and Side Walls Matter
This shroud forms the low-pressure path behind the radiator so the belt-driven fan draws air through more of the core.
Compare Before Installation
Toyota Hilux and related Fortuner/Innova diesel applications; confirm 1KD/2KD or the installed engine package. Compare the removed part from both sides and rotate the fan by hand after installation to verify safe clearance.
Service Symptoms and System Checks
A missing shroud section can allow hot under-bonnet air to circulate back toward the fan. Diagnose coolant flow, radiator condition and fan-drive engagement before assigning the complaint to one part.
Pre-Fit Condition Review
Check the deep lower section, fan-to-ring clearance and the long molded perimeter for transit warpage. Packing should support the frame without placing concentrated load on thin edges or mounting tabs.
Workshop and Distributor Supply
For repeat diesel-fleet orders, record the approved sample dimensions and the engine code with the SKU. Sample approval, batch photographs, neutral packing and buyer-specific labels can be discussed for B2B orders.
Frequently Asked Questions
Does 16711-0L050 fit every Hilux?
Compare overall width and height, fan-opening diameter, installed depth, mounting-hole spacing and all hose or clip clearances.
Why compare the complete perimeter?
Reject broken mounting ears, stress whitening, brittle edges, a non-circular fan opening or distortion that changes fan clearance.
Can a cracked shroud remain in service?
Match 16711-0L050 to the original moulding number, toyota hilux and related fortuner/innova diesel applications; confirm 1kd/2kd or the installed engine package.
Should the fan clutch be checked too?
The shroud limits air bypass and keeps the fan working across the radiator face; cracks, missing sections or excess clearance can reduce that effect.
Are sample orders supported?
Provide 16711-0L050, SKU TY01014-003, vehicle or chassis data, quantity, destination, packing needs and clear photos of the removed part.
Request a 16711-0L050 Fan Shroud Quote
Send OE 16711-0L050, SKU TY01014-003, quantity, destination and original-part evidence to Yongshang Auto for application review and a wholesale proposal.
Fitment notice: OE and vehicle references support identification, but they do not replace VIN-, engine- or chassis-specific catalogue checks and direct comparison with the removed fan shroud.
