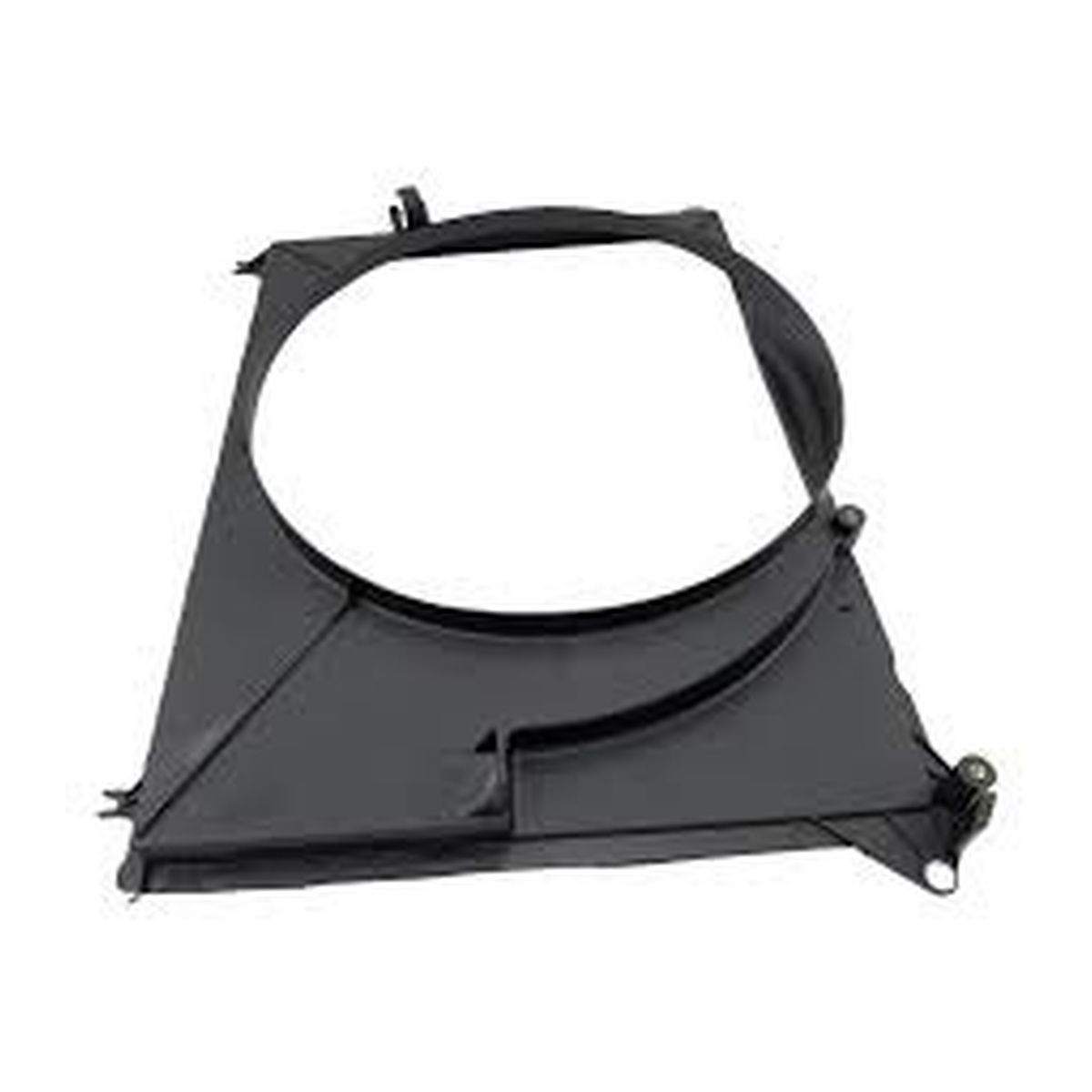

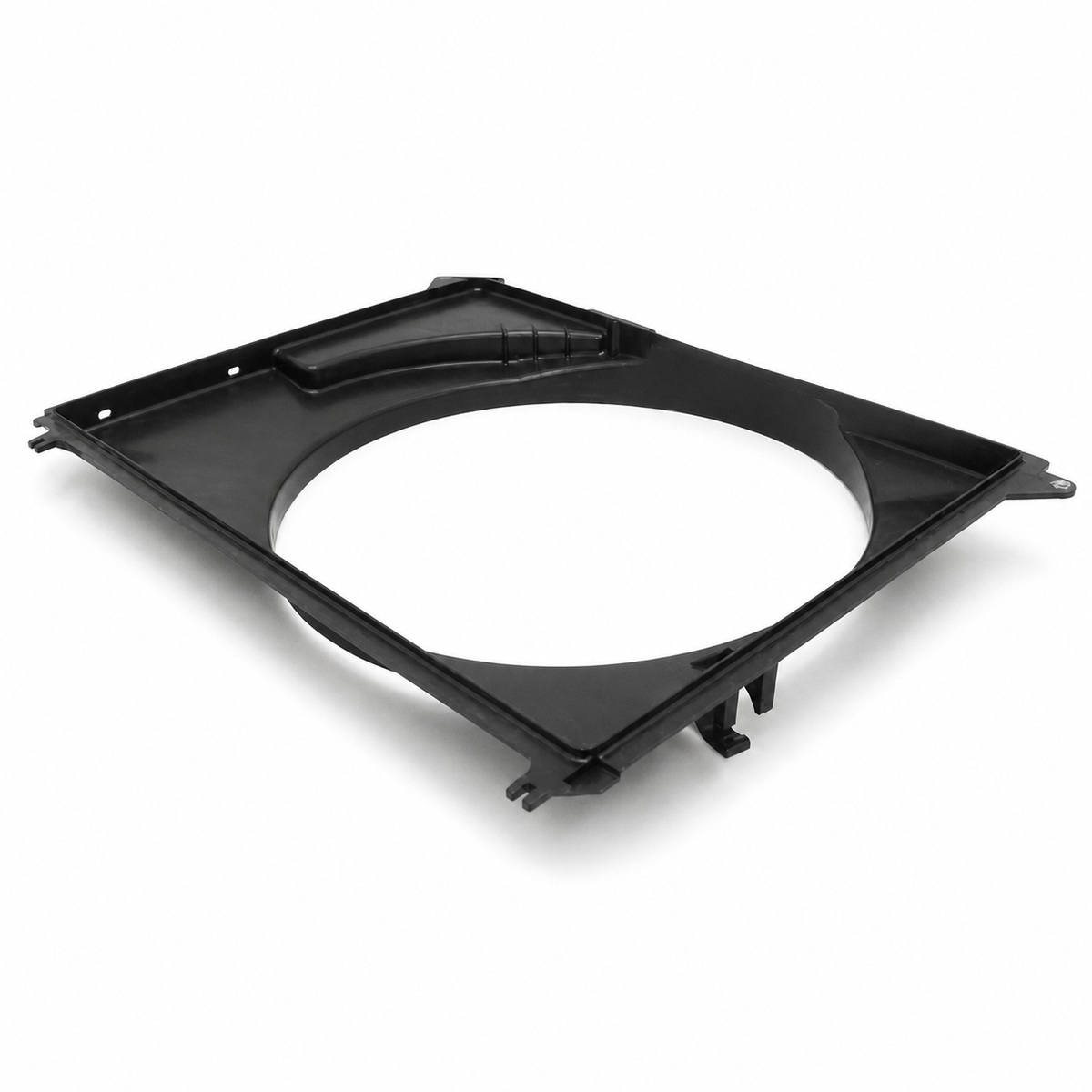

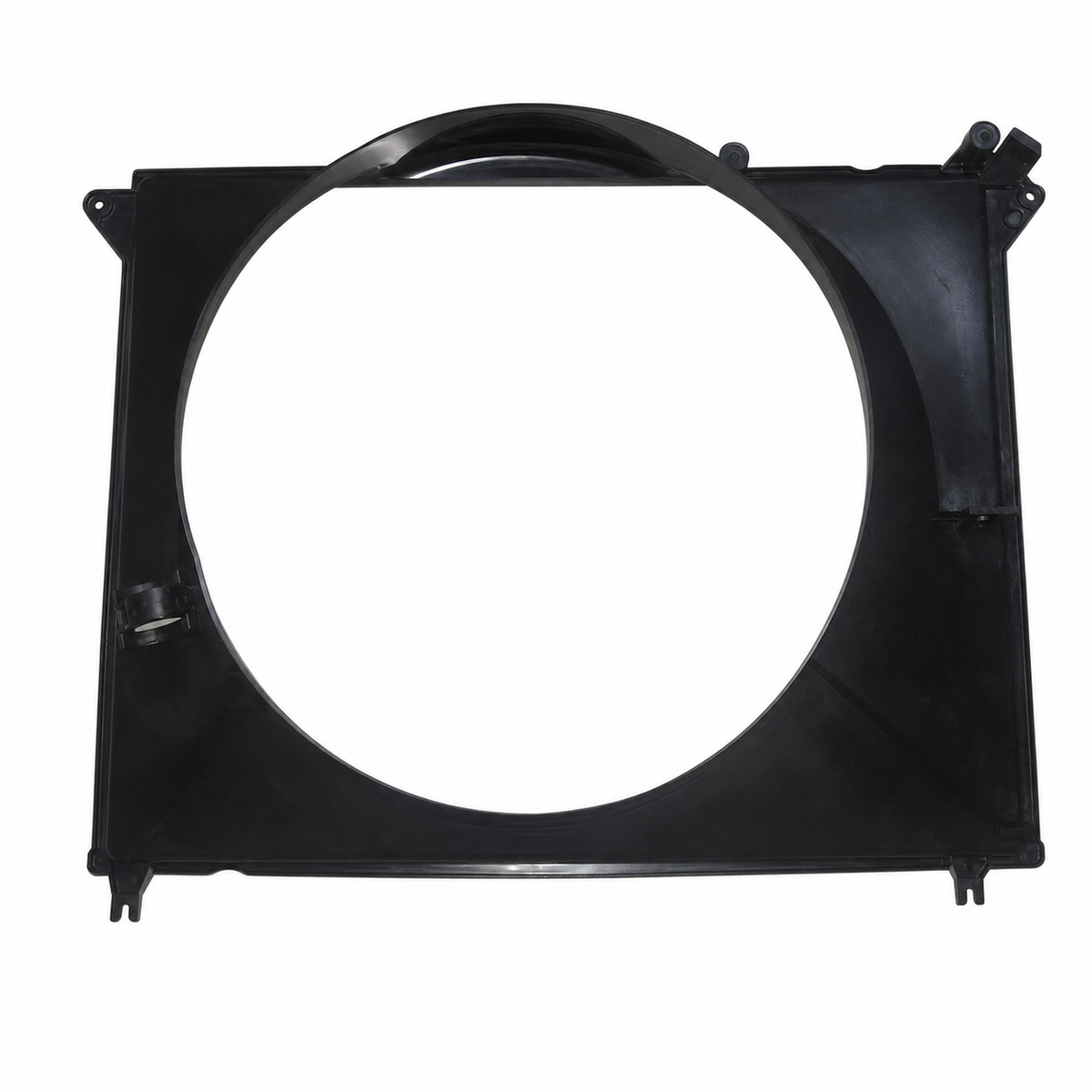

16711-0C090 Radiator Fan Shroud for TOYOTA
Product: Radiator Cooling Fan Shroud
Primary OE: 16711-0C090
Item code: TY01014-002
Cross-reference numbers:
16711-0C090
Brand: TOYOTA
Cooling role: Directs mechanical-fan airflow through the radiator core for Hilux Vigo service applications.
Fitment check: Confirm gasoline engine, radiator package, ring diameter and mounting-tab pattern.
Supply note: Suitable for Toyota aftermarket distributors requesting sample and batch supply.
16711-0C090 radiator fan shroud is presented for TOYOTA OE identification and wholesale sourcing. A practical OE-led replacement reference for workshops servicing gasoline Hilux Vigo cooling systems.
Product Technical Specifications
| Product type | Radiator Cooling Fan Shroud |
|---|---|
| Primary OE reference | 16711-0C090 |
| Internal item code | TY01014-002 |
| Vehicle brand | TOYOTA |
| Cross-reference numbers | 16711-0C090 |
Airflow Function Inside the Cooling Module
The molded ring concentrates fan draw across the radiator face while the side walls limit air bypass around the core.
Evidence-Based Fitment Approval
Toyota Hilux Vigo gasoline cooling layouts; verify engine, production year and radiator package. Compare the removed part from both sides and rotate the fan by hand after installation to verify safe clearance.
Service Symptoms and System Checks
Investigate the shroud when polished contact marks, broken ears, fan noise, low-speed overheating or loose mounting are found. Also inspect the fan drive, radiator mounts and engine mounts.
Moulding and Mount Inspection
Inspect the circular aperture, lower edge, hose clearances and every radiator-side mounting ear for distortion. Packing should support the frame without placing concentrated load on thin edges or mounting tabs.
Importer Quotation Checklist
Vigo-market buyers should send engine displacement, build year and a front-and-rear photo of the removed shroud. Sample approval, batch photographs, neutral packing and buyer-specific labels can be discussed for B2B orders.
Frequently Asked Questions
How is 16711-0C090 confirmed for Hilux?
Match 16711-0C090 to the original moulding number, toyota hilux vigo gasoline cooling layouts; verify engine, production year and radiator package.
Which measurements matter most?
The shroud limits air bypass and keeps the fan working across the radiator face; cracks, missing sections or excess clearance can reduce that effect.
Why does the shroud affect cooling at idle?
Provide 16711-0C090, SKU TY01014-002, vehicle or chassis data, quantity, destination, packing needs and clear photos of the removed part.
What damage should be rejected?
Compare overall width and height, fan-opening diameter, installed depth, mounting-hole spacing and all hose or clip clearances.
What should a quotation request contain?
Reject broken mounting ears, stress whitening, brittle edges, a non-circular fan opening or distortion that changes fan clearance.
Request a 16711-0C090 Fan Shroud Quote
Send OE 16711-0C090, SKU TY01014-002, quantity, destination and original-part evidence to Yongshang Auto for application review and a wholesale proposal.
Fitment notice: OE and vehicle references support identification, but they do not replace VIN-, engine- or chassis-specific catalogue checks and direct comparison with the removed fan shroud.
