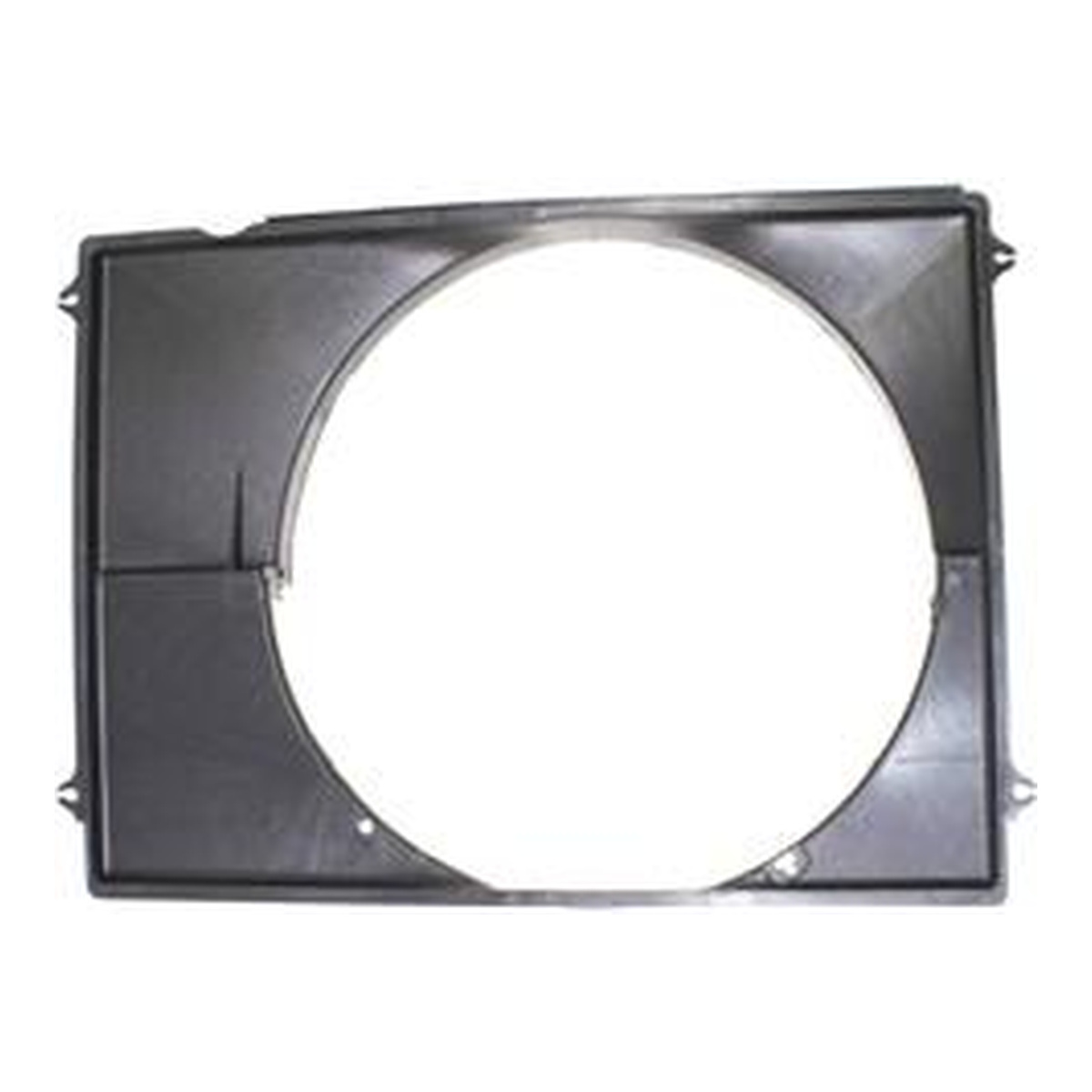

16711-0C011 TY01014-013 Radiator Fan Shroud for TOYOTA
Product: Radiator Cooling Fan Shroud
Primary OE: 16711-0C011
Item code: TY01014-013
Cross-reference numbers:
16711-0C011
Brand: TOYOTA
Cooling role: Positions the fan opening relative to the 4Runner radiator assembly.
Fitment check: Use VIN, engine option, model year and side-by-side dimensional comparison.
Supply note: North American service buyers should include destination and packaging standards.
16711-0C011 radiator fan shroud is presented for TOYOTA OE identification and wholesale sourcing. A separately traceable Tacoma fan-shroud listing retained for the workbook's second physical product record.
Product Technical Specifications
| Product type | Radiator Cooling Fan Shroud |
|---|---|
| Primary OE reference | 16711-0C011 |
| Internal item code | TY01014-013 |
| Vehicle brand | TOYOTA |
| Cross-reference numbers | 16711-0C011 |
Fan Position and Core Coverage
This moulded guide defines the fan inlet plane, protecting the designed relationship between fan sweep and radiator coverage.
VIN and Option-Code Checks
Toyota Tacoma first-generation cooling packages associated with 16711-0C011; compare the shroud section and engine specification. Compare the removed part from both sides and rotate the fan by hand after installation to verify safe clearance.
Service Symptoms and System Checks
A missing shroud section can allow hot under-bonnet air to circulate back toward the fan. Diagnose coolant flow, radiator condition and fan-drive engagement before assigning the complaint to one part.
Transit Damage Screening
Review clip locations, aperture roundness and the outer frame where older plastic can become brittle from heat cycling. Packing should support the frame without placing concentrated load on thin edges or mounting tabs.
Service-Part Enquiry Data
Because this workbook contains a second 16711-0C011 record, use SKU TY01014-013 on labels and reorder documents. Sample approval, batch photographs, neutral packing and buyer-specific labels can be discussed for B2B orders.
Frequently Asked Questions
Is a VIN useful when sourcing 16711-0C011?
Provide 16711-0C011, SKU TY01014-013, vehicle or chassis data, quantity, destination, packing needs and clear photos of the removed part.
What if the OE marking is unclear?
Compare overall width and height, fan-opening diameter, installed depth, mounting-hole spacing and all hose or clip clearances.
How is frame twist detected?
Reject broken mounting ears, stress whitening, brittle edges, a non-circular fan opening or distortion that changes fan clearance.
What related parts deserve inspection?
Match 16711-0C011 to the original moulding number, toyota tacoma first-generation cooling packages associated with 16711-0c011; compare the shroud section and engine specification.
What data speeds up wholesale pricing?
The shroud limits air bypass and keeps the fan working across the radiator face; cracks, missing sections or excess clearance can reduce that effect.
Request a 16711-0C011 Fan Shroud Quote
Send OE 16711-0C011, SKU TY01014-013, quantity, destination and original-part evidence to Yongshang Auto for application review and a wholesale proposal.
Fitment notice: OE and vehicle references support identification, but they do not replace VIN-, engine- or chassis-specific catalogue checks and direct comparison with the removed fan shroud.
