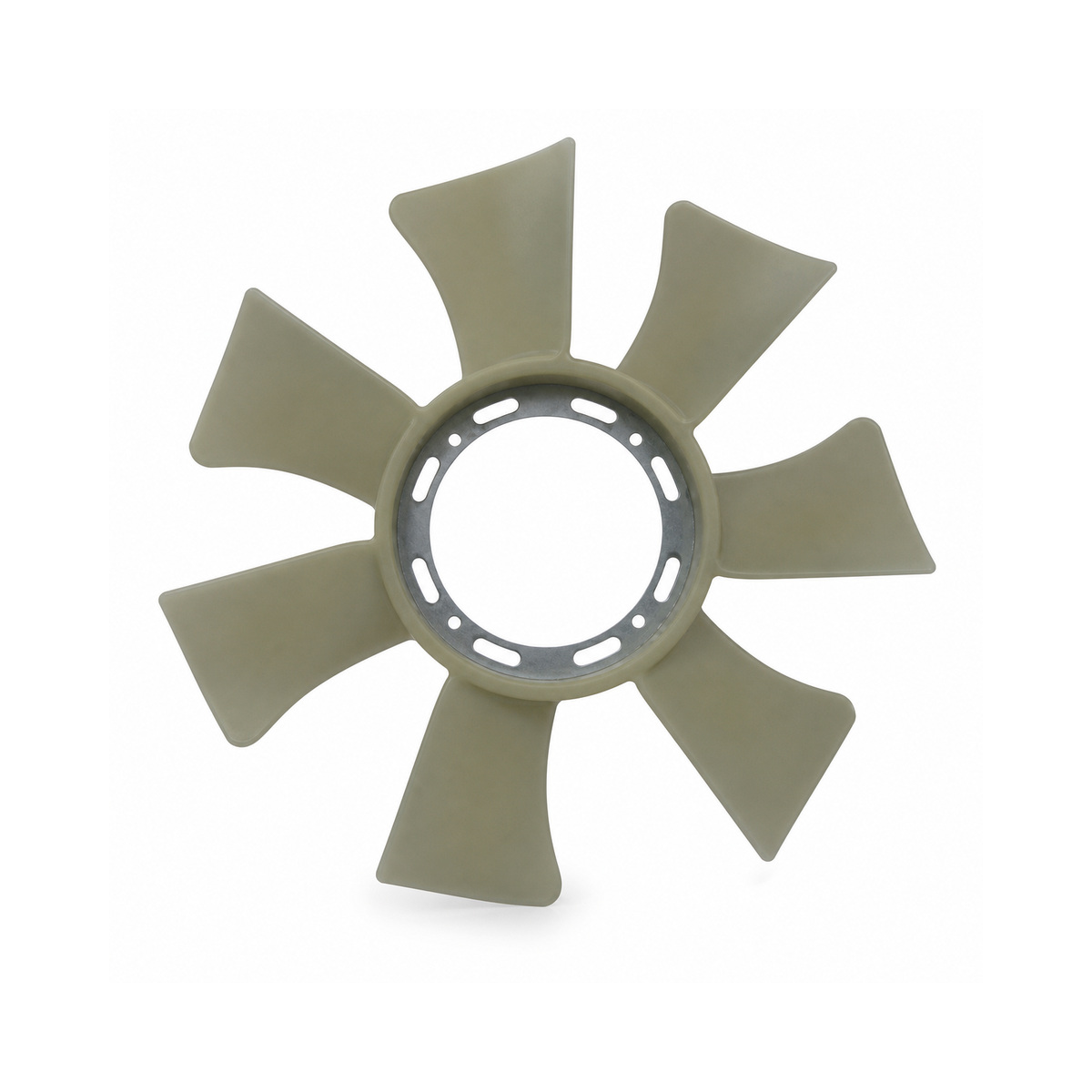

16306-1183 Radiator Cooling Fan Blade for HINO Ranger
Product: Radiator Cooling Fan Blade
Primary OE: 16306-1183
Item code: HN01013-005
Cross-reference numbers:
16306-1183
Brand: HINO
Model: Ranger
Cooling role: Mechanical cooling fan component requiring geometry and rotation verification.
Fitment check: Review the original label, mounting pattern, installed depth and rotation.
Supply note: Prepared for international aftermarket enquiries and repeat-order documentation.
16306-1183 radiator cooling fan blade is listed for HINO Ranger identification and aftermarket sourcing. The information begins with common fan blade risks such as cracks, imbalance and incorrect clearance, then explains how to verify the replacement.
Product Technical Specifications
| Product type | Radiator Cooling Fan Blade |
|---|---|
| Primary OE reference | 16306-1183 |
| Internal item code | HN01013-005 |
| Vehicle brand | HINO |
| Vehicle model | Ranger |
| Reference numbers | 16306-1183 |
Service Symptoms and Related Checks
Cracks near the hub, polished contact marks, vibration and an uneven blade path are reasons to stop operating the fan and investigate. A new blade will not correct a worn fan clutch or misaligned mounting surface.
Why Blade Condition Matters
This fan blade converts drive rotation into cooling airflow. Its service result is influenced by blade rigidity, balance, hub concentricity and correct installation on the matching clutch or pulley for HINO Ranger.
Confirming the Correct Replacement
Fitment confirmation should resolve five points: OE reference, vehicle or engine variant, center attachment, outer diameter and rotation. This process is particularly important when HINO Ranger has regional or year-specific cooling options.
Damage and Balance Screening
Receiving checks should confirm the OE/SKU label, overall shape, hub finish and absence of stress marks. Rotate the assembled fan by hand after installation to verify clearance before the engine is started.
Parts Enquiry Requirements
Importers should specify language, barcode and carton-mark requirements together with 16306-1183. If several OE references are accepted, list them explicitly rather than grouping unrelated fan blade designs.
Commercial and Fleet Application Notes
Workshop planning note: for trucks and light commercial vehicles, schedule a clearance check after mounts, shroud and fan drive have been inspected. Record the confirmed dimensions for the next service interval.
Frequently Asked Questions
How can a fleet approve 16306-1183?
Confirm one sample against the vehicle and record OE, dimensions, photographs and installation results for later repeat orders.
Why do regional vehicles need extra checking?
The same model name may use different engines, fan drives or cooling packages in different markets.
Can an imbalanced blade damage other parts?
Persistent vibration may load the fan drive, bearings, mounts or shroud, so the cause should be corrected promptly.
What receiving checks are recommended?
Verify labels, blade geometry, hub condition, visible damage and packing before the product enters stock.
Can pre-shipment inspection be requested?
Inspection scope and photo records can be discussed when the order quantity and specification are supplied.
Request a 16306-1183 Fan Blade Quote
Send 16306-1183, HN01013-005, quantity, destination and original-part comparison data to Yongshang Auto for application review and wholesale quotation.
Fitment notice: OE and vehicle references support product identification but do not replace engine-specific catalogue checks or comparison with the original fan blade.
